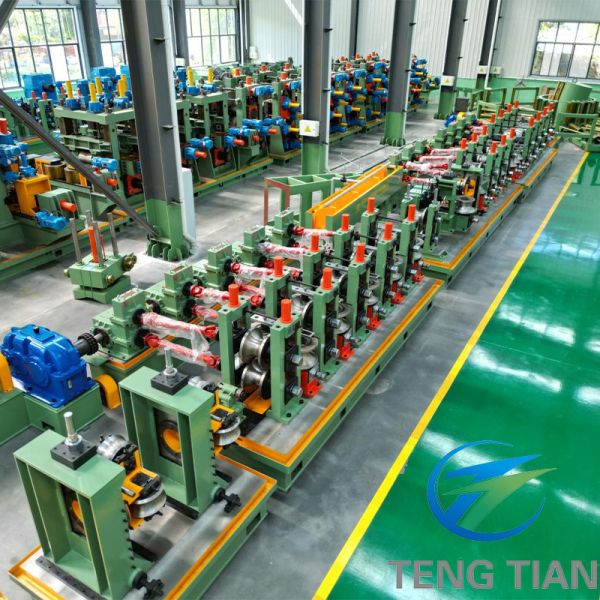

Precision Tube Mill for Square Pipe 200x200mm Low Noise
Precision Tube Mill for Square Pipe 200x200mm Low Noise
Specifications
Brand Name :
TENGTIAN
Model Number :
200 x 200 mm
Certification :
CE ISO9000 BV
Place of Origin :
China
MOQ :
1 set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
5 set/month
Delivery Time :
120 working days
Packaging Details :
standard export package
Product Name :
Precision Tube Mill for Square Pipe 200x200mm Low Noise
Model :
HG 200
Feature :
high quality and high precision
Other pipe :
round pipe and square pipe and rectangular pipe
Max size :
100 x 100 - 200 x 200 mm
Thickness :
2 . 0 - 8 . 0 mm
Length :
6 - 12 m
Rollers :
include
Power(w) :
1000kw
Keyword :
Precision Tube mill
Description
Precision Tube Mill for Square Pipe 200x200mm Low Noise
Product Specifications
Attribute Value
Model HG 200
Feature High quality and high precision
Pipe Types Round pipe, square pipe, rectangular pipe
Max Size 100 x 100 - 200 x 200 mm
Thickness 2.0 - 8.0 mm
Length 6 - 12 m
Rollers Included
Power 1000 kW

Precision Tube Mill for Square Pipe 200x200mm Low Noise

Product Overview

The 200 X 200 mm High Precision Square Pipe Milling Machine is designed for fast production of welded square tubes with dimensions ranging from 100 x 100 to 200 x 200 mm and wall thickness of 2.0 to 8.0 mm. This low noise precision tube mill features roll pass design for superior quality machining and high precision assembly.

Technical Specifications
  • Material Standards: Conforms to YB189-64 standard
  • Materials: Low carbon steel and low alloy constructional steel
  • Mechanical Properties: δs ≤ 345 Mpa, δb ≤ 610 Mpa
  • Strip Width: 400-800 mm
  • Strip Thickness: 2.0-8.0 mm
  • Coil Dimensions: Inner φ480-φ570 mm, Outer φ1000-φ1800 mm
  • Max Coil Weight: ≤ 18 T
  • Forming Speed: 10-50 m/min
  • Cutting Precision: 0-6 mm
Facility Requirements
  • Workshop: 60 x 6 m, Height >5m (with crane)
  • Power: 1212 KW, 380V/50Hz/3 phases
  • Cooling Water: Flow: 20-30 T/h, Pool Volume: 30 m³
  • Compressed Air: Flow: 5 m³/min, Pressure: 5-7 kg/cm²
Other Available Models
