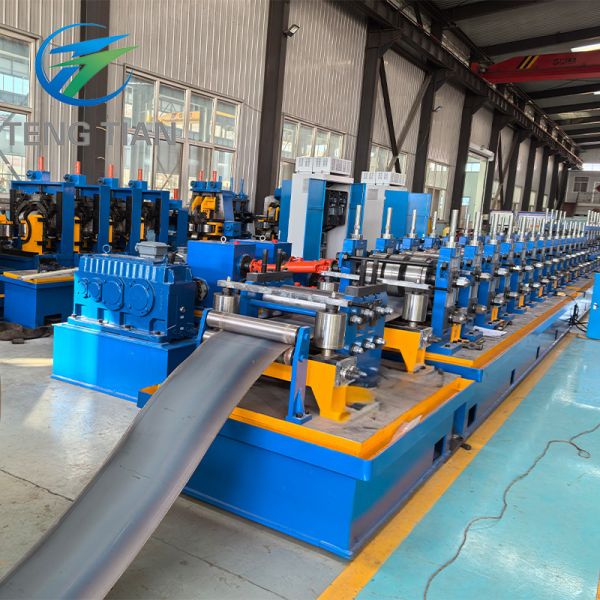

Automatic Tube Mill with High Frequency Welding 80m/min
Automatic Tube Mill with High Frequency Welding 80m/min
Specifications
Brand Name :
TengTian
Model Number :
HG114
Certification :
CE, ISO9001, BV
Place of Origin :
Hebei
MOQ :
1 Set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T
Supply Ability :
50 Sets/Year
Delivery Time :
120 work days
Packaging Details :
Export waterproof and Seaworthy packing.
Product name :
Automatic Tube Mill with High Frequency Welding 80m/min
Warranty period :
1 year
Production period :
4 month
Forming method :
Roller Squeeze
Welding method :
High frequency induction welding
speed :
80 m/min
Warranty :
One year
Material :
Low carbon HRC
Forming type :
direct forming
Work shop :
120 x 10 m, H＞7m ( crane to ground )
key words :
Automatic Tube Mill
Description
Automatic Tube Mill with High Frequency Welding 80m/min
Product Specifications
Attribute Value
Product name Full automatic tube mill
Warranty period 1 year
Production period 4 months
Forming method Roller Squeeze
Welding method High frequency induction welding
Speed 80 m/min
Material Low carbon HRC
Forming type Direct forming
Work shop 120 x 10 m, H＞7m (crane to ground)

Automatic Tube Mill with High Frequency Welding 80m/min

Product Overview

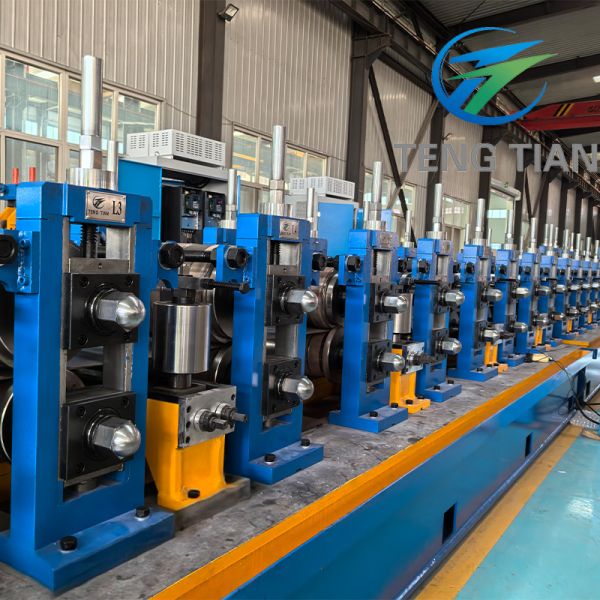

The high frequency straight seam welded pipe production line processes steel belt through a feeding unit, forming it into tube billets via rollers. Using high frequency proximity and skin effects, the strip edges are instantly heated to welding temperature and joined under pressure from squeezing rollers. The welded pipe then undergoes water cooling, sizing, and straightening to meet required specifications.
This production line incorporates innovative designs based on domestic and international equipment, optimized for operational simplicity and maintenance ease. With high machining quality and assembly precision, it produces electric welded steel pipes with exceptional accuracy.
Production Process
Automatic Tube Mill with High Frequency Welding 80m/min
Technical Specifications
Model Side Length Range Thickness Production Speed (m/min) Motor Power (KW) Mechanical Area (m³)
HG20 6×6 - 16×16 mm 0.3-1 mm 30-120 55 7×50
HG32 9×9 - 25×25 mm 0.3-2.0 mm 30-120 75 7×50
HG50 12×12 - 40×40 mm 0.8-2.5 mm 30-110 110 7×60
HG60 15×15 - 47×47 mm 0.8-3 mm 30-100 132 7×65
HG76 9×9 - 60×60 mm 1-3 mm 30-100 320 8×80
HG89 25×25 - 70×70 mm 1-4 mm 30-80 350 8×80
HG114 35×35 - 89×89 mm 1.5-5.0 mm 30-60 400 10×100
HG165 47×47 - 129×129 mm 3-7 mm 30-50 600 10×110
HG219 89×89 - 172×172 mm 4-8 mm 20-40 800 12×150
HG273 89×89 - 214×214 mm 4-10 mm 15-30 1000 18×160
HG325 129×129 - 255×255 mm 4-12 mm 10-30 1200 18×180
HG426 129×129 - 335×335 mm 4-16 mm 8-25 1400 18×180
HG508 172×172 - 400×400 mm 4-20 mm 8-20 2000 21×180
Recent technology expansion includes:
  • HG600: Production line for square welded pipes (max side length 600×600mm)
  • HG765: Production line for round welded pipes (max diameter 765mm)
Quality Assurance & Service Warranty
Pre-sales Service
  • Equipment photos provided before shipment to verify product authenticity
  • COVID-19 contingency: Online remote guidance for installation and commissioning when travel restrictions apply
  • When travel permitted: On-site engineer support for one month (buyer covers travel, accommodation, and salary)
After-sales Service
Under normal operation and proper maintenance, we provide 12 months warranty from equipment arrival date. For quality-related part failures affecting operation, we offer free repairs or replacements.
Factory Overview

Automatic Tube Mill with High Frequency Welding 80m/min

Automatic Tube Mill with High Frequency Welding 80m/min

Automatic Tube Mill with High Frequency Welding 80m/min

Automatic Tube Mill with High Frequency Welding 80m/min

Automatic Tube Mill with High Frequency Welding 80m/min

Automatic Tube Mill with High Frequency Welding 80m/min
