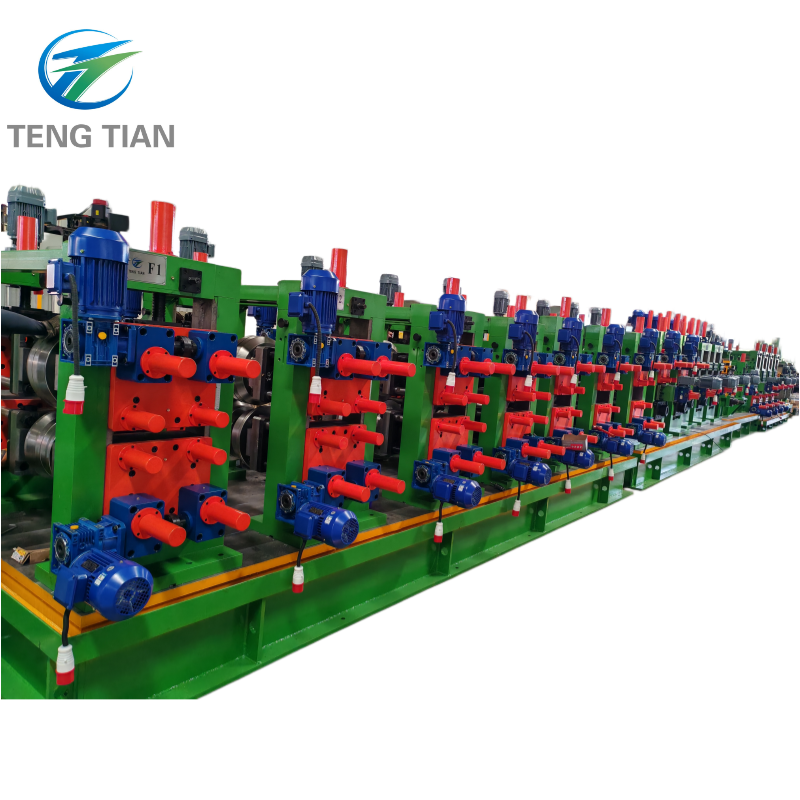

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill
Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill
Specifications
Supply Ability :
50 Sets/Year
Material :
Hot Rolled Coil, Cold Rolled Coil,Galvanised Steel
Model Number :
ERW219
Welding Type :
High Frequency Welding
MOQ :
1 Set
Delivery Time :
3 months
Max.Thickness for Round Pipe :
2.0 - 8.0mm
Payment Terms :
L/C,T/T
Adjusting :
worm gearing
Pipe Diameter :
89 - 219mm
Price :
$100000 to $1 million
Running speed :
Max.50m/min
Pipe shape :
Round, Square & Rectangular
Max.Thickness for Square Pipe :
2.0 - 7.0mm
Certification :
CE, ISO9001, BV
Name :
Tube Mill Machine
Place of Origin :
Hebei
Square Pipe :
70*70 - 170*170mm
Packaging Details :
Export waterproof and Seaworthy packing.
Brand Name :
Tengtian
Cutting Saw :
Friction Saw Cutting
Description
Blue Tube Mill Machine Cold Rolled Coil Max 8mm Thickness 170 * 170mm

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Full Automatic Carbon Steel Pipe ERW Pipe Making Machine Tube Welding Machine Pipe Mill

Product Specifications
Material Hot Rolled Coil, Cold Rolled Coil, Galvanised Steel
Adjusting Worm gearing
Running speed Max. 50m/min
Pipe shape Round, Square & Rectangular
Pipe Diameter 89 - 219mm
Max. Thickness for Round Pipe 2.0 - 8.0mm
Welding Type High Frequency Welding
Cutting Saw Friction Saw Cutting
Max. Thickness for Square Pipe 2.0 - 7.0mm
Square Pipe 70*70 - 170*170mm
Product Description
8 inch with max. 8mm thickness high frequency tube mill machine

This production line manufactures welded steel pipes of Φ89mm-Φ219mm with 2.0mm-8.0mm wall thickness, capable of producing profiled pipes within the processing limits of round pipes. Incorporating advanced pipe-making technology from domestic and international sources, our innovative design offers both economical and practical solutions.

ERW Tube Mill & Pipe Mill Overview
  • Produces longitudinal weld seam tubes and pipes from steel strips of specific widths
  • Process begins with uncoiling and flattening slitted steel coils into strips
  • Forming machine with roller tooling shapes strips into round pipes
  • High frequency solid state welder joins the pipe seams
  • Sizing machine forms tubes to final dimensions before cutting to length
Production Process
  • Scroll up
  • Uncoil
  • Flattening
  • End Shear & Butt Welding
  • Accumulator
  • Forming
  • High-frequency induction welding
  • Removing external burr
  • Cooling
  • Sizing
  • Cutting
  • Checking & Collecting
  • Accessing Warehouse
Technical Specifications
Raw Material
Material application Hot or cold rolled steel strips, galvanized steel strips
Material grade Low-carbon steel, low alloy steel: δs≤345Mpa
ID of steel strips Φ450-Φ508mm
OD of steel strips Φ800-Φ2000mm
Coiler weight Max. 1500kg
Production Range
Round Pipe 89 - 219mm Thickness: 2.0-8.0mm
Square Pipe 70*70 - 170*170mm Thickness: 2.0-7.0mm
Rectangular Pipe 70*80 - 120*200mm Thickness: 2.0-7.0mm
Additional Specifications
  • H.F. Welder: GGP600Kw Solid State High Frequency Welder
  • Line Speed: Max. 50m/min
  • Tube Length: 4-12m
  • Cutting Accuracy: ±1mm
  • Electric installed capacity: approx. 1100KW
  • Size of whole line: about 100X8m

As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China, our high-quality, reliable machines with long service life have been exported to over 30 countries including Turkey, Egypt, Morocco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, and Vietnam.

For inquiries or additional information, please contact us - we're happy to assist you.
