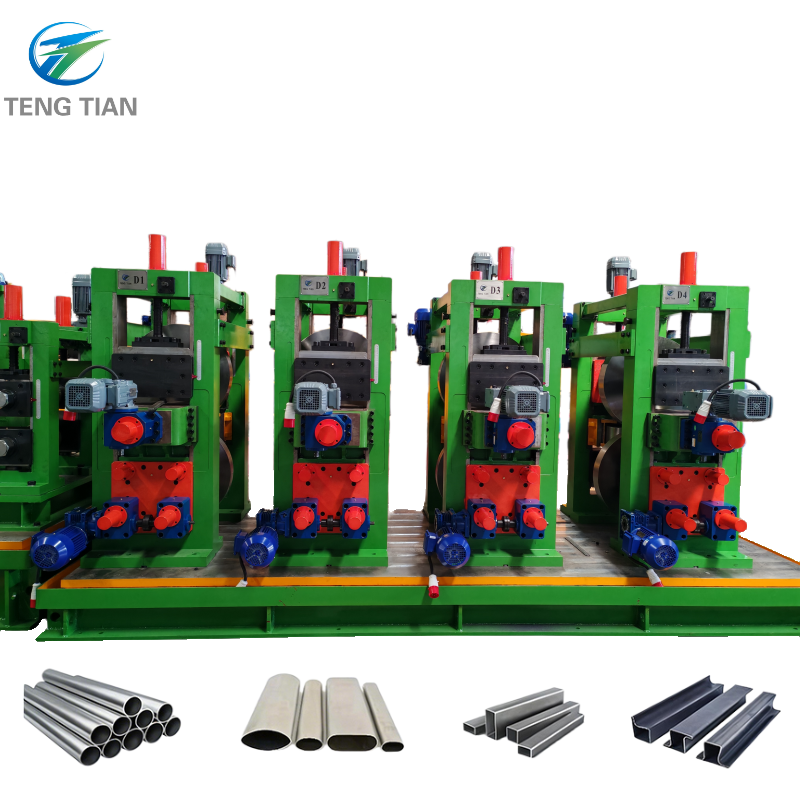

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine
HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine
Specifications
Supply Ability :
5 set/year
Production Name :
Tube Mill Machine
Model Number :
HG 76
Length :
4 m - 6 m
MOQ :
1 set
Delivery Time :
100 wording days
Thickness :
0 . 4 - 2 . 75 mm
Payment Terms :
L/C,D/A,D/P,T/T
model :
HG 76
Max size :
16 - 76 mm
Price :
$100000 to $1 million
Feature :
blue and high precision
Other pipe :
square pipe and Rectangular pipe
Warranty :
one year
Certification :
CE ISO9000 BV
Place of Origin :
China
Key words :
High Precision Steel Welded Pipe Mill Making Machine Tube Mill Machine
Packaging Details :
standard export package
Brand Name :
TENGTIAN
Rollers :
include
Description
HG 76 Mm Blue High Precision Steel Welded Pipe Mill Making Machine Tube Mill Machine

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine

HG76 ERW Carbon Steel Tube Pipe Making Mill Line Machine

Product Specifications
Attribute Value
Production Name Tube Mill Machine
Model HG 76
Feature Blue and high precision
Other Pipe Types Square pipe and Rectangular pipe
Max Size 16 - 76 mm
Thickness 0.4 - 2.75 mm
Length 4 m - 6 m
Rollers Included
Warranty One year
Machine Overview

The HG 76 high frequency welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions.

Round pipe size: 16 - 76 mm | Pipe thickness: 0.4 - 2.75 mm

Technical Specifications
Material Specifications
Standard YB189-64
Material Low carbon steel and low alloy constructional steel
Mechanical Properties σb ≤ 380 Mpa, σs ≤ 275 MPa
Strip Width 50 - 240 mm
Strip Thickness 0.4 - 2.75 mm
I.D of Coils Φ508mm
O.D of Coils φ1800mm
Coil Weight ≤3.0T
Welded Pipe Specifications
Round Pipe Diameter Φ16 - φ76 mm
Pipe Thickness 0.4 - 2.75 mm
Finish Pipe Length 6 m - 8 m
Cut Length Accuracy ±1.5 mm
Forming Speed 60 - 120 m/min
Workspace Requirements

70 x 6 m, H＞5m

Note: Can be modified according to actual workshop length
Production Process
  1. Strip steel to coil
  2. Uncoiler
  3. End straightener
  4. Flattener
  5. Shear welder
  6. Storage material unit
  7. Forming, welding, cooling, accurate pipe diameter sizing
  8. Accurate pipe length sizing, cutting
  9. Inspection
  10. Packaging
Quality Assurance & Warranty

Our technical service personnel will be on-site for equipment debugging, maintenance, and operation training. When used according to specifications, the equipment comes with a 12-month warranty from the date of arrival. In case of quality issues under normal operation, we provide free repair or replacement of damaged parts.
