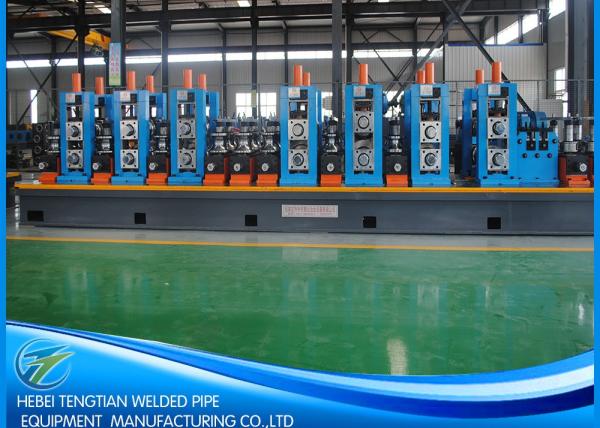

HG 32 Precision Tube Mill for 15-25mm Round Steel Welded Pipes
HG 32 Precision Tube Mill for 15-25mm Round Steel Welded Pipes
HG 32 Precision Tube Mill for 15-25mm Round Steel Welded Pipes
HG 32 Precision Tube Mill for 15-25mm Round Steel Welded Pipes
HG 32 Precision Tube Mill for 15-25mm Round Steel Welded Pipes
HG 32 Precision Tube Mill for 15-25mm Round Steel Welded Pipes
Specifications
Brand Name :
TENGTIAN
Model Number :
HG 32
Certification :
CE ISO9000 BV
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
5 set/year
Delivery Time :
100 wording days
Packaging Details :
standard export package
Price :
$100000 to $1 million
Production Name :
Precision Tube Mill Round Steel Welded 32 Mm Production Line
model :
HG 32
Feature :
high precision
Other pipe :
square pipe and Rectangular pipe
Max size :
15 - 25 mm
Thickness :
1 . 0 - 1 . 5 mm
Cutting length :
3 - 6 m
Warranty :
one year
Key words :
Precision Tube Mill
Description

Round Steel Welded 32 Mm Tube Production Line High Precision Tube Mill

I.Equipment Introduction

HG32 High-Frequency Welded Pipe Production Line is designed to produce welded pipes of Ф15～25mm in diameter and 1.0～1.5mm in wall thickness other deformed pipes of the corresponding size. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

II.Main Parameters and Specifications:

Pipe material

Low carbon steel and low alloy constructional steel

OD of coil

1500 mm

ID of coil

508 mm

Width of strip

47 ～ 80 mm

Thickness of strip

1 . 0 ～ 1 . 5 mm

Weight of strip

≤ 1.2 T

Welding thickness

1 . 0 - 1 . 5 mm

Cutting length

3 - 6 m

Pipe-cutting Precision

0～3 mm

Forming speed

44 m / min

Workshop: 6m wide, 50m long, at least 5m high

Notice:You can modify it according to the actual length of the workshop

III.Equipment composition

  • Decoiler
  • Straight head and pinch leveling machine
  • Shear and welder
  • spiral accumulator
  • Forming and Sizing Mill
  • Cold Saw
  • Run out table
  • 400KW High Frequency solid-state Welder
