MachineU > China Products > Machinery > Metal & Metallurgy Machinery > Tube Mill Line

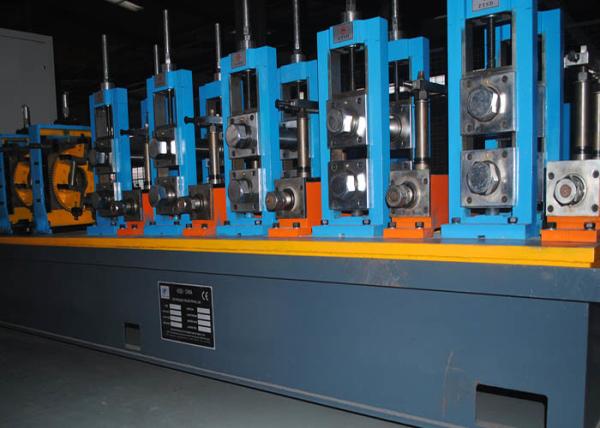

HG63x4 HF Tube Mill Machine 25-63.5mm Round 20x20-50x50mm Square
HG63x4 HF Tube Mill Machine 25-63.5mm Round 20x20-50x50mm Square
HG63x4 HF Tube Mill Machine 25-63.5mm Round 20x20-50x50mm Square
HG63x4 HF Tube Mill Machine 25-63.5mm Round 20x20-50x50mm Square
HG63x4 HF Tube Mill Machine 25-63.5mm Round 20x20-50x50mm Square
HG63x4 HF Tube Mill Machine 25-63.5mm Round 20x20-50x50mm Square
Specifications
Brand Name :
TENG TIAN
Model Number :
HG 63*4
Certification :
ISO9001/BV
Place of Origin :
China
MOQ :
1set
Price :
$100000 to $1 million
Supply Ability :
150 units a year
Delivery Time :
3 months
Packaging Details :
Seaworthy packing
Product name :
HG63*4 Speed 60m/min Dia Round Pipe 25-63.5mm Square 20*20-50*50 HF Tube Mill Machine
After-sales service provided :
Engineers available to service machinery overseas
Pipe material :
Carbon Steel
Voltage :
380V
Power(w) :
650KW
Forming Speed :
max 150 m / min
square pipe :
20*20 - 50*50 mm
Round Pipe Diameter :
25 - 63.5 mm
Thickness :
0.8-4mm
Warranty :
1 year
Keywords :
Tube Mill Machine
Description

HG63*4 Speed 150m/min Dia Round Pipe 25-63.5mm Square 20*20-50*50mm HF Tube Mill Machine

Product Information

HG63x4.0 (2.5”)high frequency welded pipe production line is used to manufacture welded steel pipe of Φ25mm-Φ63mm, square pipe 20x20-50x50mm, with 0.8mm-4.0mm of wall thickness. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Model

Serial number

Model

Thickness(mm)

Specification(mm)

Speed(m/min)

main engine(kw)

Power(kw)

area

1

H20

0.3-1

8-20

30-120

55

60

7*50

2

H32

0.3-2.0

12-32

30-120

75

100

7*50

3

H50

0.8-2.5

16-50

30-110

110

150

7*60

4

H60

0.8-3

20-60

30-100

132

200

7*65

5

H76

1-3

12-76

30-100

320

250

8*80

6

H89

1-4

32-89

30-80

350

300

8*80

7

HG114

1.5-5

45-114

30-60

400

300

10*100

8

HG165

3-7

60-165

30-50

600

400

10*110

9

HG219

4-8

114-219

20-40

800

500

12*150

10

HG273

4-10

114-273

15-30

1000

600

18*160

11

HG325

4-12

165-325

10-30

1200

600

18*180

12

HG426

4-16

165-426

8-25

1400

800

18*180

13

HG508

4-20

219-508

8-20

2000

1000

21*180

Production Process

Loading car→Uncoil →Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → hydrostatic testing → End facer → Straightener→Packing → Storage

HG63x4 HF Tube Mill Machine 25-63.5mm Round 20x20-50x50mm Square

Our Service

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
