HG 114 High Precision Automatic Tube Mill for Round Steel Pipes 50-100mm
HG 114 High Precision Automatic Tube Mill for Round Steel Pipes 50-100mm
HG 114 High Precision Automatic Tube Mill for Round Steel Pipes 50-100mm
HG 114 High Precision Automatic Tube Mill for Round Steel Pipes 50-100mm
HG 114 High Precision Automatic Tube Mill for Round Steel Pipes 50-100mm
HG 114 High Precision Automatic Tube Mill for Round Steel Pipes 50-100mm
Specifications
Brand Name :
TENGTIAN
Model Number :
HG 114
Certification :
CE ISO9000 BV
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
5 set/year
Delivery Time :
100 wording days
Packaging Details :
standard export package
Price :
$100000 to $1 million
Mill Name :
Round Steel Welded 114 Mm Automatic Tube Mill High Precision
model :
HG 114
Feature :
high precision
Other pipe :
square pipe and Rectangular pipe
Max size :
50 - 100 mm
Thickness :
1 . 0 - 4 . 0 mm
Cutting length :
4 - 6 m
Warranty :
one year
Key words :
Round Steel Welded Pipe Mill Line Automatic Tube Mill
Description

Round Steel Welded 114 Mm Automatic Tube Mill High Precision

I.Equipment Introduction

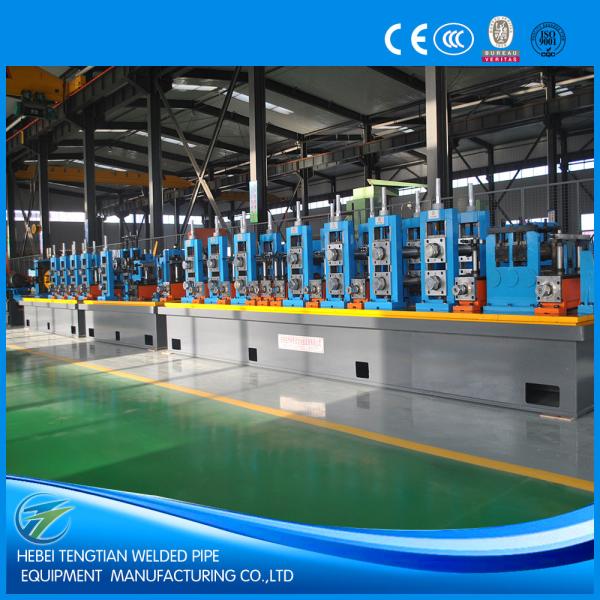

HG 114 MM high precision round welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Round pipe size: 50 - 100 mm Pipe thickness: 1 . 0 - 4 . 0 mm

II.Main Parameters and Specifications:

Pipe material

Low carbon steel and low alloy constructional steel

OD of coil

φ 1000 ～ φ 1600 mm

ID of coil

φ 480 ～ φ 510 mm

Width of strip

160 ～ 320 mm

Thickness of strip

1 . 0 ～ 4 . 0 mm

Weight of strip

≤ 5 T

Welding thickness

1 . 0 - 4 . 0 mm

Cutting length

4 - 6 m

Pipe-cutting Precision

0～3 mm

Forming speed

20 - 60 m / min

Workshop: 8m wide, 100m long, at least 5m high

Notice:You can modify it according to the actual length of the workshop

III.Equipment composition

  • Decoiler
  • Straight head and pinch leveling machine
  • Shear and welder
  • spiral accumulator

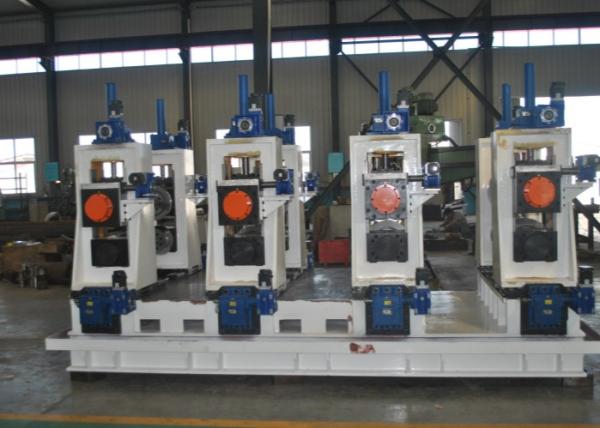

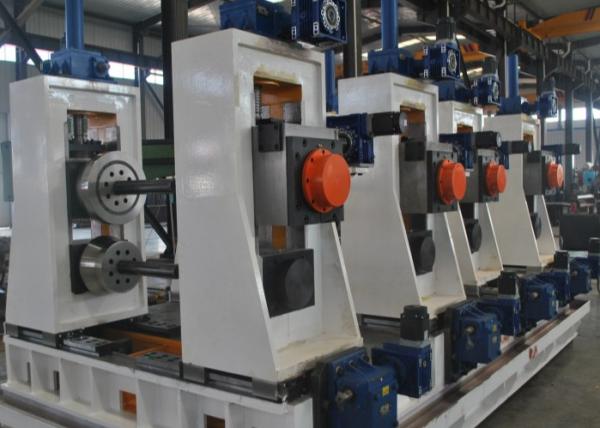

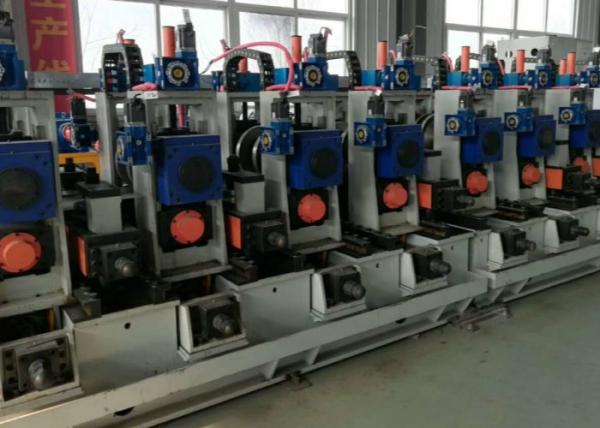

  • Forming and Sizing Mill
  • Cold Saw
  • Run out table
  • 400KW High Frequency solid-state Welder

HG 114 High Precision Automatic Tube Mill for Round Steel Pipes 50-100mm

IV.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

HG 114 High Precision Automatic Tube Mill for Round Steel Pipes 50-100mmHG 114 High Precision Automatic Tube Mill for Round Steel Pipes 50-100mm
