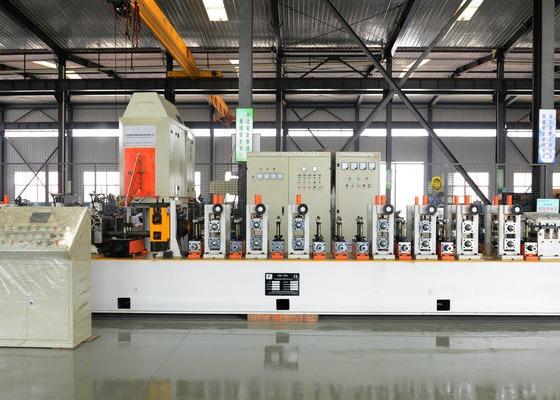

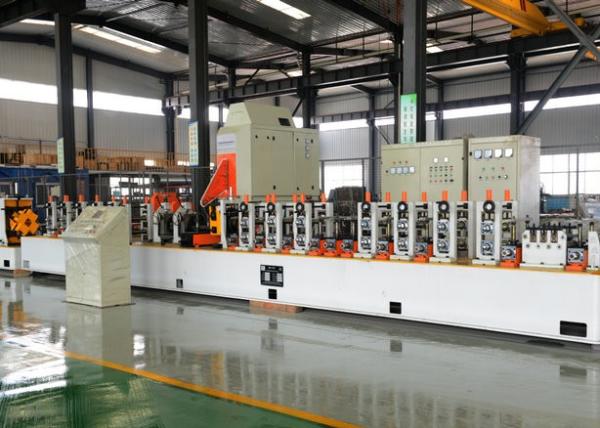

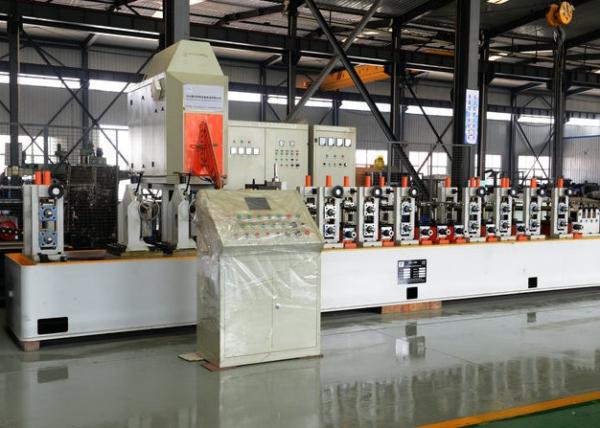

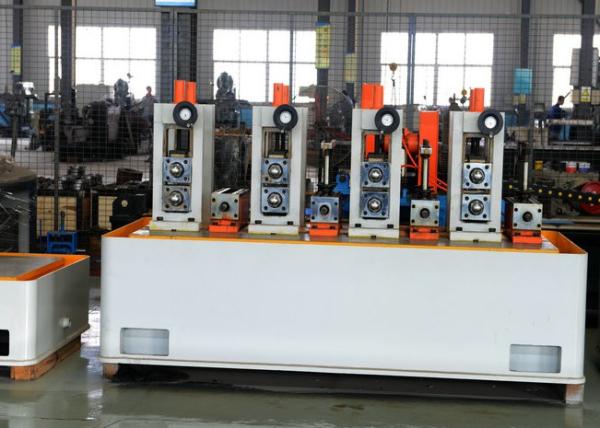

100x100mm High Precision Automatic Tube Mill with Rollers
100x100mm High Precision Automatic Tube Mill with Rollers
100x100mm High Precision Automatic Tube Mill with Rollers
100x100mm High Precision Automatic Tube Mill with Rollers
100x100mm High Precision Automatic Tube Mill with Rollers
100x100mm High Precision Automatic Tube Mill with Rollers
100x100mm High Precision Automatic Tube Mill with Rollers
100x100mm High Precision Automatic Tube Mill with Rollers
Specifications
Brand Name :
TENGTIAN
Model Number :
127
Certification :
CE ISO9000 BV
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
5 set/year
Delivery Time :
100 working days
Packaging Details :
standard export package
Price :
$100000 to $1 million
Mill Name :
Save Roller Full Automatic Max 100 X 100 Mm High Precision Square Tube Mill
Feature :
high precision
Other pipe :
round pipe and square pipe
Max size :
30 x 30 - 100 x 100 mm
Thickness :
1 . 0 - 3 . 0 mm
Length :
4 - 12 m
Rollers :
include
Warranty :
one year
Key words :
High Precision Square Tube Mill
Description

Save Roller Full Automatic Max 100 X 100 Mm High Precision Square Tube Mill

1.Full Automatic Max 100 X 100 Mm High Precision Square Tube Mill General Introduction

100 Automatic tube mill is designed to produce square pipe 30 x 30 - 100 x 100 mm and according size square pipe , thickness 1 - 3 mm. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

This type machine adopts one set of combined mould, producing the different specifications of the tube, only need to adjust,no need to change,the roller savings rate at above 90%,thus reducing the cost of the roller and improve the efficiency,use the motor automatic adjustment,thus decreasing the number of workers,reduce the labor costs,decreased the workers labor intensity, improved the workers working environment

In a very short period of time to finish the adjustment of the roller, extreme reduce the roller change time when replace the products, thus improve the efficiency and reduce the productive cost.The equipment operation is simple,just need to know the size and the wall thickness of the tubes in the production,then input it to the interface,it will make adjustment automatically, thus lower levels of debugging personnel's technical requirements

2.Full Automatic Max 100 X 100 Mm High Precision Square Tube Mill Main Parameters and Specifications

(1)Material Specifications:
Standard Internatioanl standard tube mill machine
Material galvanized steel
Mechanical properties σb≤520Mpa,σs≤365MPa
Strip Width 120-400mm
Strip Thickness: 1-3mm
Inner Diameter of Coils Φ508mm
Outer Diameter of Coils Φ1300～φ2000mm
Coil Weight ≤3T
(2)Pipe Specification
Pipe Diameter

Square pipe :50x50-100x100 mm
Length 3-6m
Pipe-cutting Precision 0-6mm
Forming Speed Max 90m/min for 2 mm thickness

3.Working Process

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
