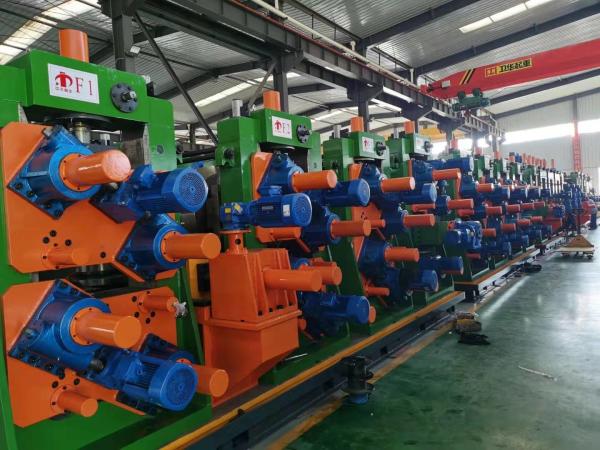

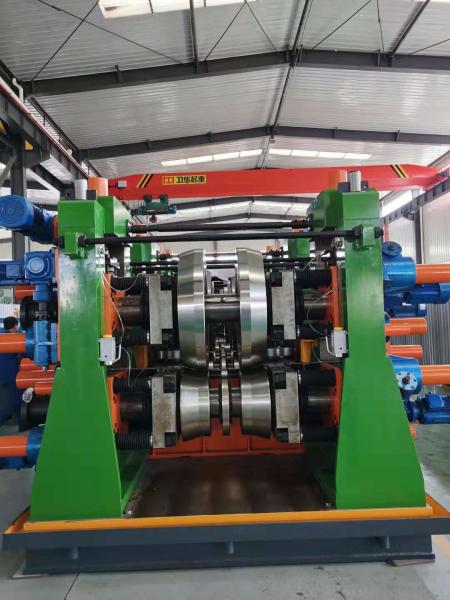

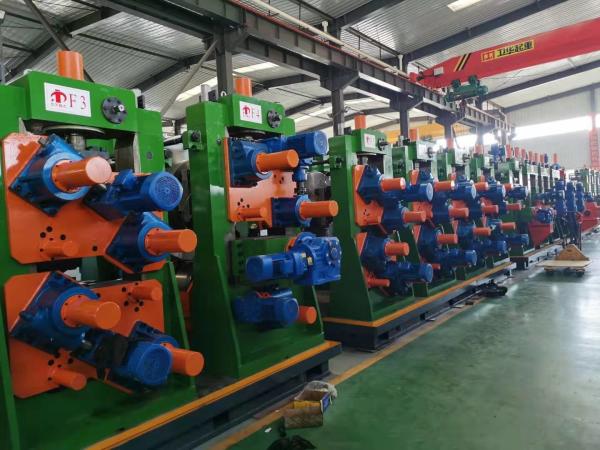

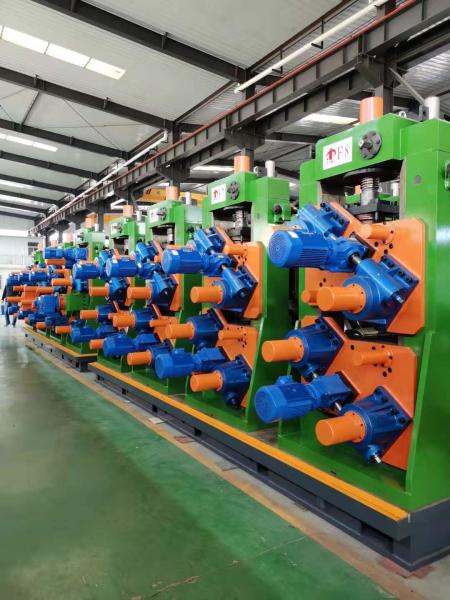

200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
Specifications
Brand Name :
TENGTIAN
Model Number :
200x200
Certification :
CE ISO9000 BV
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
5 set/month
Delivery Time :
60 wording days
Packaging Details :
standard export package
Price :
$100000 to $1 million
Product name :
High Frequency Welded Pipe Mill 200x200mm High Frequency Welded Pipe Mill 14.0mm Thick
Production :
Round pipe
Feature :
Quick change
Name :
Tube mill
Other pipe :
square pipe and Rectangular pipe
Max size :
100x100-200x200mm
Thickness :
3.0-14.0mm
Length :
6-12m
Rollers :
include
Keywords :
High Frequency Welded Pipe Mill
Description

200x200mm hifrequency welded tube quick change tube mill

1.Machine General Introduction

it is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.

Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

2.Main Parameters and Specifications:

(1)Material Specifications:
Standard Conforming to the YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical properties δs≤345Mpa δb≤610Mpa
Strip Width

270-800mm
Strip Thickness: 3.0-14.0mm
Inner Diameter of Coils φ480～φ570mm
Outer Diameter of Coils φ1000～φ1800mm
Coil Weight ≤18T
(2)Pipe Specification
Pipe Diameter

Square pipe:100x100-200x200mm

Same size Rec. pipe

Thickness:3.0-14.0mm
Length 6-12m
Pipe-cutting Precision 0-6mm
Forming Speed 10-50m/min
(3)The buyer should self-supply
Work shop 120x6m, H＞5m(crane to ground)
Power Approx.1212KW 380V/50Hz/3phases
Circulation Cooling Water(whole system)

Flow:20T/h～30 T/h

Pool Volume:30m3

Compressed Air

(whole system)

Flow:5m3/min

Pressure: 5-7kg/ cm2
Others Seller will supply list
3.Working Process:
strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
4.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
