High Frequency ERW Steel Pipe Production Line 30-130 m/min
High Frequency ERW Steel Pipe Production Line 30-130 m/min
High Frequency ERW Steel Pipe Production Line 30-130 m/min
High Frequency ERW Steel Pipe Production Line 30-130 m/min
High Frequency ERW Steel Pipe Production Line 30-130 m/min
High Frequency ERW Steel Pipe Production Line 30-130 m/min
High Frequency ERW Steel Pipe Production Line 30-130 m/min
High Frequency ERW Steel Pipe Production Line 30-130 m/min
Specifications
Brand Name :
TENGTIAN
Model Number :
HG20
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T
Supply Ability :
50 set per year
Delivery Time :
90 days
Packaging Details :
naked package of machine, motors covered with wood case
Product :
High Frequency Erw Mill Tube Steel Pipe Production Line
keyword :
Steel Pipe Production Line
Material :
SS
speed :
30-130 m/min
thickness :
0.2-1.0 mm
Motor :
110 KW
Application :
architecture, Construction
Certificate :
CE, ISO
Features :
FFX
Shape :
Square
Description

High Frequency Erw Mill Tube Steel Pipe Production Line

High Frequency Erw Mill Tube Steel Pipe Production Line For architecture is a unit with a advanced technical characteristics of the product. the unit uses the world's most advanced FFX,FF forming system, and the choice of the German COPRA roll forming design software as a design guide roll means and final verfication. the unit has formed a stable,good quality steel surface, easy to change specification,advanced technology,reliable equipment,improve production technology and mature series of advantages.

Mill Tour

Step 1 - Coils

There are carbon steels that are going to be made into pipe and tube for you

Step 2 - uncoiler

The carbon steel coil is placed on the uncoiler

Step 3 - Leveler

The coil stock is leveled

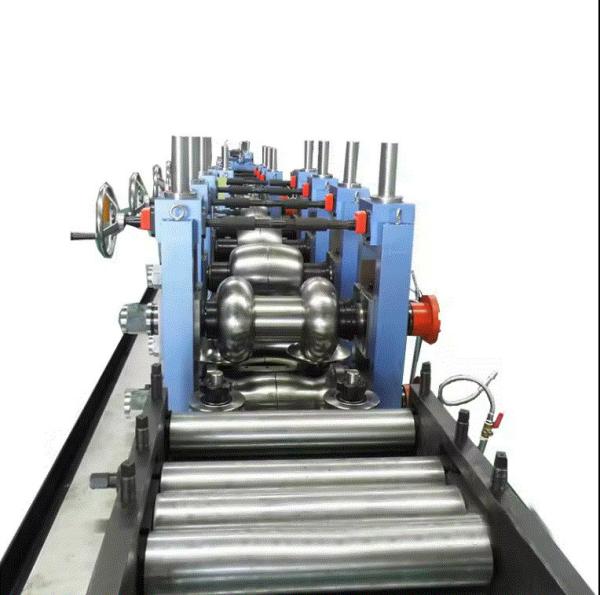

Step 4 - Mill

Then it goes through a series of rolls that form the flat steel into pipe

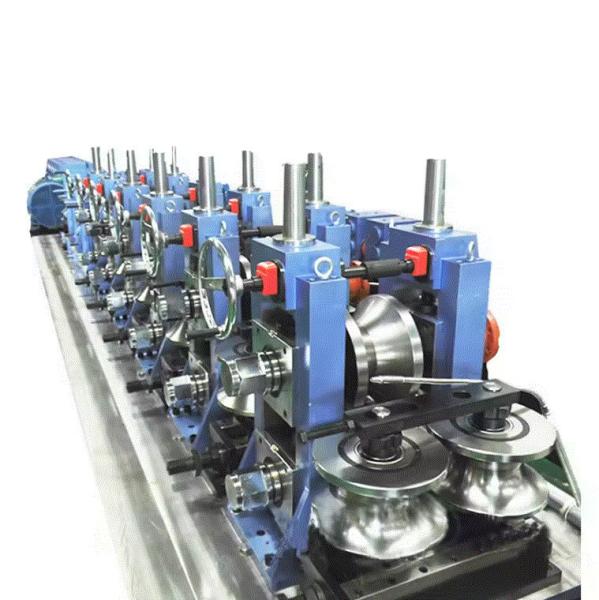

Step 5 - Mill Rollers

Rolls form this size schedule into shape

Step 6 - Welder

An Electirc Resistance Welder Finishes the pipe or tube

Step 7 - Scarfer

The seam is “scarfed” to make the pipe or tube smooth all the way around.

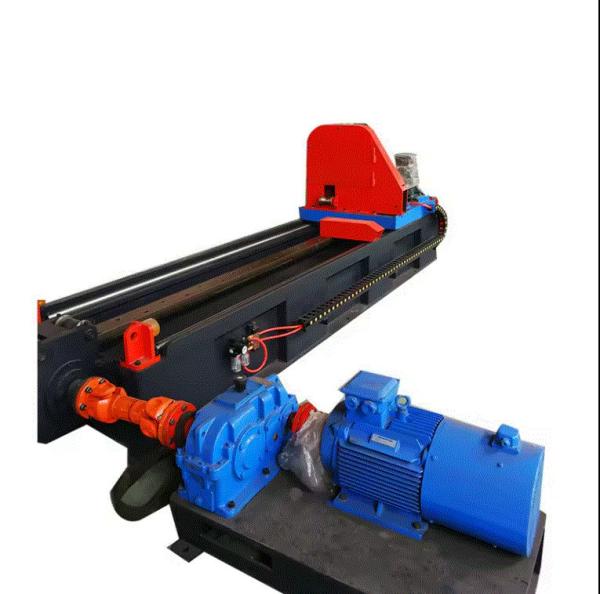

Step 8 - Saw

Finally, the pipe and tube is sawed to length

Product Specification: pipe diameter: φ10-φ508mm,wall thickness: 0.7mm -16mm

Technical Parameters:

Parameter Value
Product Steel Pipe Production Line
Material Steel
Power Supply 200KW
Speed 30-120 m/min
Pipe Chickness 0.3-1.8 mm
Application Construction,architecture
Feature FFX
Warranty 1 Year
Service Life Long
Main Feature

Direct Forming Tube Mill

Galvanized Steel Tube Mill

Production Line

High Frequency ERW Steel Pipe Production Line 30-130 m/min

High Frequency ERW Steel Pipe Production Line 30-130 m/min

High Frequency ERW Steel Pipe Production Line 30-130 m/min

High Frequency ERW Steel Pipe Production Line 30-130 m/min

High Frequency ERW Steel Pipe Production Line 30-130 m/min
