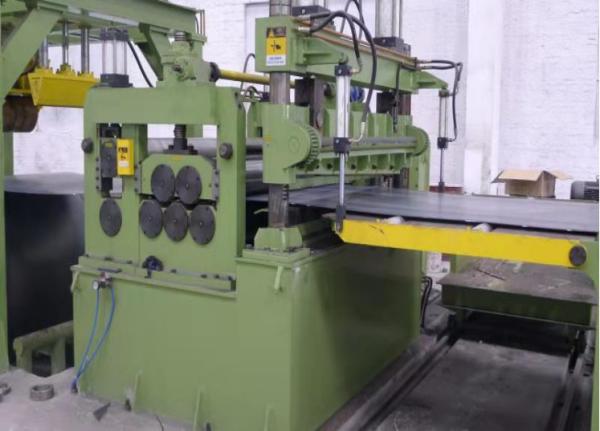

Heavy Duty Steel Slitting Machine for Stainless Steel Aluminum 2500mm Max Width
Heavy Duty Steel Slitting Machine for Stainless Steel Aluminum 2500mm Max Width
Heavy Duty Steel Slitting Machine for Stainless Steel Aluminum 2500mm Max Width
Heavy Duty Steel Slitting Machine for Stainless Steel Aluminum 2500mm Max Width
Heavy Duty Steel Slitting Machine for Stainless Steel Aluminum 2500mm Max Width
Heavy Duty Steel Slitting Machine for Stainless Steel Aluminum 2500mm Max Width
Specifications
Brand Name :
Hebei Tengtian
Model Number :
2500 X9 mm
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,,T/T
Supply Ability :
1
Delivery Time :
1 month
Packaging Details :
container
Price :
$100000 to $1 million
Name :
Heavy High Speed Steel Slitter For Stainless Steel Aluminum Steel Slitting Machine
Max Width :
2500mm
thickness range :
9 mm
Cutting currency :
±2 mm
Cutting Speed :
0-30 m/min
The loading`bearing capacity of the decoiler :
50T
Cutter motor :
137kw
Coiler motor :
120kw
Description

Heavy High Speed Steel Slitter For Stainless Steel Aluminum Steel Slitting Machine

I. Main Technical parameter:

1. Material specification

Coil Thickness:Max 9 mm

Coil Width:Max 2500mm

Coil Weight:≤ 50 t

Inner diameter:Φ508/610/760mm

Outer diameter: ≤Φ2000mm

Width precision: ±2 mm(thickness 2.0-3.0) ±0.20 mm(thickness 3.1-9.0)

Burr accuracy:≤5%

II. Equipment composition

No. Name Quantity
1 Coil car 1 Set
2 Uncoiler 1 Set
3 Pressure leading device 1 Set
4 Clamp&Straightener 1 Set
5 Shearing 1 Set
6 1#Accumulator 1 Set
7 Guiding device 1 Set
8 Pinch roll 1 Set
9 Slitter machine 2 Sets
10 edge rewinder 1 Set
11 Wear tape table and material tail pressing plate 1 Set
12 2#Accumulator 1 Set
13 Seperation device 1 Set
14 Tension plate 1 Set
15 3-roll tension burr extruding machine 1 Set
16 Steering roller and feed head guide plate 1 Set
17 Recoiler+Coiling support 1 Set
18 Unloading car 1 Set
19 Knife disc, knife pad, unloading apron, separating disc, separating disc pad and other process parts -------

III. Other Model Of Slitting Line

Model
(mm)		 Plate thickness
(mm)		 Plate width
(mm)		 Steel coil weight (T) Finished width (mm) Shear article number Shear speed(m/min)
3×500 0.4-3 100-500 7 ≥30 ≤6 140
3×600 0.4-3 100-600 8 ≥30 ≤6 140
3×800 0.5-3 200-800 10 ≥30 ≤8 140
3×1250 0.5-3 400-1250 15 ≥30 ≤10 120
3×1500 0.5-3 600-1500 20 ≥30 ≤12 120
3×1800 0.5-3 900-1600 30 ≥40 ≤13 120
4×1600 0.5-4 900-1600 30 ≥60 ≤13 120
6×1600 1-6 900-1600 30 ≥60 ≤10 110
8×2000 2-8 900-2000 35 ≥70 ≤6 100
10×2200 3-10 900-2200 35 ≥80 ≤5 80
12×2200 3-12 900-2200 35 ≥100 ≤5 50
16×2500 4-16 900-2500 35 ≥100 ≤5 40
20×2500 6-20 900-2500 35 ≥100 ≤4 40

Heavy Duty Steel Slitting Machine for Stainless Steel Aluminum 2500mm Max Width

Heavy Duty Steel Slitting Machine for Stainless Steel Aluminum 2500mm Max WidthHeavy Duty Steel Slitting Machine for Stainless Steel Aluminum 2500mm Max Width
