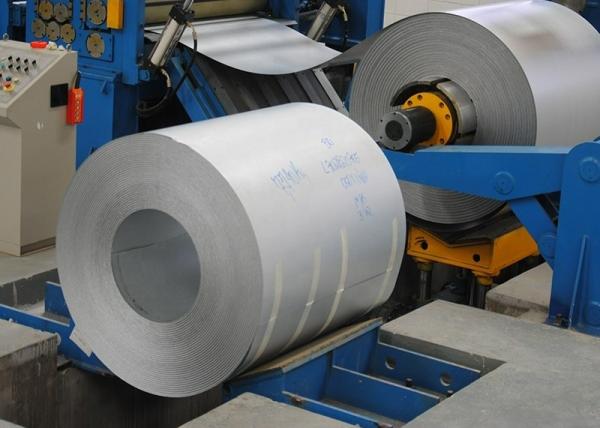

3X1500mm Steel Coil Slitting Machine 90m/Min 0.5-3mm Thickness
3X1500mm Steel Coil Slitting Machine 90m/Min 0.5-3mm Thickness
3X1500mm Steel Coil Slitting Machine 90m/Min 0.5-3mm Thickness
3X1500mm Steel Coil Slitting Machine 90m/Min 0.5-3mm Thickness
Specifications
Brand Name :
TengTian
Model Number :
3X1500 mm
Certification :
CE, ISO9001, BV
Place of Origin :
Hebei
MOQ :
1 Set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T
Supply Ability :
5 Sets/Year
Delivery Time :
120 work days
Packaging Details :
Export waterproof and Seaworthy packing.
Product name :
Plate Cutting Max. 90m/Min 3X1500mm Steel Coil Slitting Machine
Applicable materials :
Cold Rolled carbon Steel, Galvanised Coils, pre-painted coils
Equipment Specification :
customer specified
Thickness of strip :
0.5 - 3 mm
Coil weight :
Max. 22,000kg
speed :
90m/min
Warranty :
One year
key words :
3X1500mm Steel Coil Slitting Machine
Description

Plate Cutting Max. 90m/Min 3X1500mm Steel Coil Slitting Machine

I. 3X1500mm Steel Coil Slitting Machine Introduction

GENERAL SPECIFICATION INPUT DATE

Material Cold Rolled carbon Steel, Galvanised Coils, pre-painted coils
Tensile strength 550Mpa
Yield strength 300Mpa
Thickness of strip 0.70 - 3.00mm
Width of strip 600 ~ 1500mm
Coil weight Max. 22,000kg
Coil inside diameter 508/610mm
Coil outside diameter 700~1,800mm

PRODUCT DATA

Recoiling inside diameter 508mm
Recoiling outside diameter Max.1,600mm
Recoiling weight Max. 20,000kg

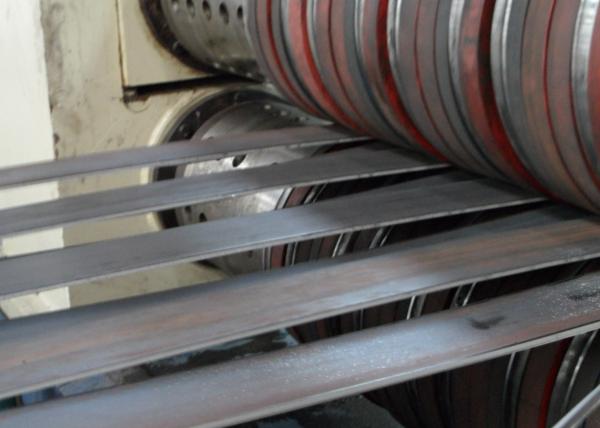

Min. slitting width 50mm
Slitting capacity

20slits for thickness 1mm

12slits for thickness 2mm

5 slits for thickness 3mm

TOLERANCES

Slitting width accuracy +/ - 0.05mm slitting width (thickness ≤1.5mm) +/ - 0.1mm slitting width (thickness >1.6mm)
Edge burr <5% thickness (Min 0.03mm)

LINE SPEEDS

Processing speed Max. 90m/min
Threading speed 10m/min

OTHERS

Pass line height 1,000mm above floor level
Line direction From “ ” to “ ” from the view of operator side
Painting color as required

Required Utilities

Power supply 3ph AC380V 50Hz

Capacity 220 kw

Compressed air pressure 0.5~0.7Mpa

Capacity 0.5M3/min

Equipment Warranty
