CNC Steel Slitting Machine 1600x6mm 50m/min Cutting Line
CNC Steel Slitting Machine 1600x6mm 50m/min Cutting Line
CNC Steel Slitting Machine 1600x6mm 50m/min Cutting Line
CNC Steel Slitting Machine 1600x6mm 50m/min Cutting Line
Specifications
Brand Name :
Tengtian
Model Number :
1600X6mm
Certification :
CE, ISO9001, BV
Place of Origin :
Hebei，China
MOQ :
1 Set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
4 Sets/Year
Delivery Time :
120 work days
Packaging Details :
Export waterproof and Seaworthy packing.
Name :
CNC Carbon Steel 1600×6mm Cutting Line Machine 50m/min Steel Slitting Machine
Cutting speed :
max 50m/min
Warranty :
1 Year
Weight :
Max 30 Ton
Control :
cnc
Coil Width :
800~2000mm
Thickness Range :
1-6mm
Key Words :
1600×6mm Slitting Production Line
Description

CNC Carbon Steel 1600×6mm Cutting Line Machine 50m/min Steel Slitting Machine

1.Cnc Galvanized Crabon Steel 1600×6mm Slitting Production Line General Introduction:

This production line is suitable for continuous longitudinal shearing strips with a width of 800-1600mm and a thickness of 1-6mm for hot-rolled ordinary carbon structural steel, low-alloy structural steel and other materials. Referred to as 1600 × 1 ~ 6mm slitting unit.

2.Cnc Galvanized Crabon Steel 1600×6mm Slitting Production Line Main Parameters and Product Outline:

1)Material Specifications:

Raw Material Hot rolled steel coil, material Q235B
Outer diameter of steel coil Φ1600～2000mm
Inner diameter of steel coil Φ500mm～850mm
Coil width 600～1600mm
Steel strip thickness 1～6mm
Coil Weight Max30 tons

2)Finished Product:

Inner diameter of steel coil Φ850mm
Outer diameter of steel coil φ1600～φ2000mm
Coil weight Max30 tons
Unit Speed: Drawing shear: 10～50m/min (thickness≤6mm)

3)Workshop condition parameters:

Power Power supply AC380V 50HZ
Control power supply AC220V 50HZ
Installed capacity About 550kW
Industrial air pressure 0.4MPa～ 0.8MPa
Industrial air flow 3 m³/min
Hydraulic working environment —10～40°
Hydraulic system cooling Circulating water cooling
Unit coolant 20～30t/h
Coolant pressure 1.2～2kg/ cm2

3. Process

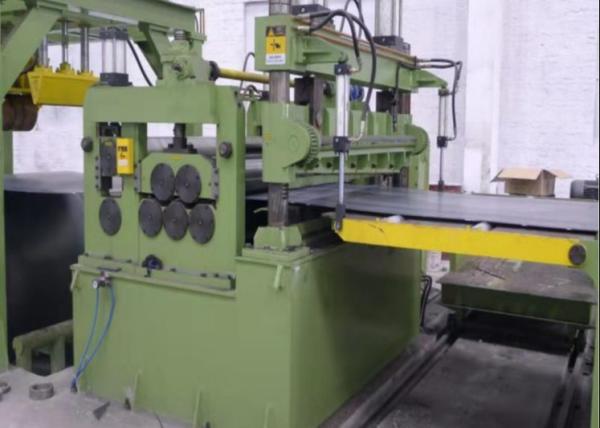

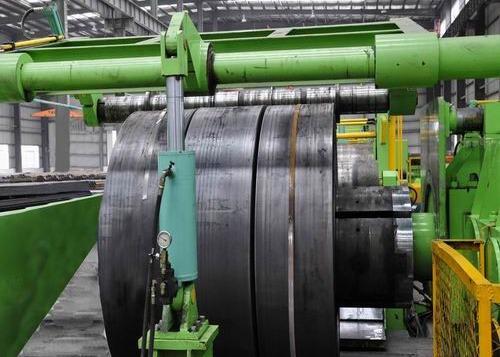

coil preparation →loading car → uncoiler → straight head → centering vertical roller →pinch leveler →cross cutter → centering vertical roller → disc Shear → edge rewinder →transition table→ steel belt separation feeding device→recoiler→unloading coil

This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
