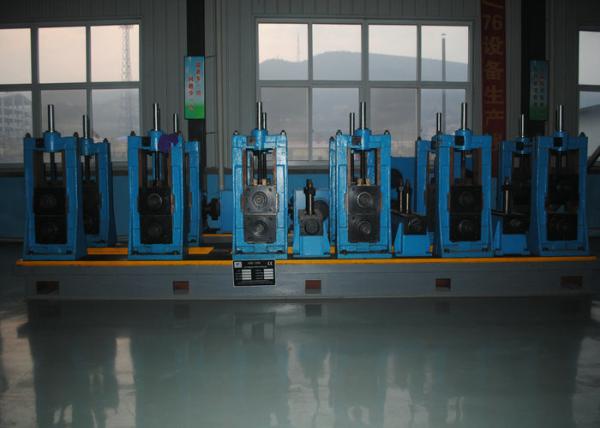

High Frequency ERW Tube Mill 0.8-3.0mm Thickness 21-63mm Diameter
High Frequency ERW Tube Mill 0.8-3.0mm Thickness 21-63mm Diameter
High Frequency ERW Tube Mill 0.8-3.0mm Thickness 21-63mm Diameter
High Frequency ERW Tube Mill 0.8-3.0mm Thickness 21-63mm Diameter
High Frequency ERW Tube Mill 0.8-3.0mm Thickness 21-63mm Diameter
High Frequency ERW Tube Mill 0.8-3.0mm Thickness 21-63mm Diameter
Specifications
Brand Name :
Tengtian
Model Number :
HG76
Certification :
CE, ISO9001, BV
Place of Origin :
HEBEI,CHINA
MOQ :
1 set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
35 set per year
Delivery Time :
three months
Packaging Details :
Export waterproof and Seaworthy packing.
Product name :
High Frequency welded pipe mill ERW Tube Mill , Welded Pipe Mill 0.8-3.0mm Max Thickness
certification :
CE ISO
worm gearing :
Max.80m/min
Pipe Diameter :
21 - 63mm
material :
carbon steel,stainless steel,low alloy steel
Keywords :
High Frequency Welded Pipe Mill
Description

1.Brief introduction of ERW tube mill & pipe mill

  • The ERW tube mill & pipe mill is a series of machines that builds longitudinal weld seam tubes and pipes with steel strips of certain width.
  • It starts by uncoil and flatten the slitted steel coils into steel strips.
  • The flattened steel strips will then be inserted into the forming machine and the roller tolling in the machine will roll the strip to round pipe shape.
  • The rolled strips will then be sent into the weld box where the tube is welded by a high frequency solid state welder.
  • The welded tubes will be formed to expected shape or size in a sizing machine. Finally the tubes will be cut to length and bundled.

High Frequency ERW Tube Mill 0.8-3.0mm Thickness 21-63mm Diameter

2. Function

This pipe is used especially for Petroleum, Natural gas, City gas, Pipe network, Chemical industry, Electricity, Steel truss, Water and Gas pipeline; it is widely used for a variety of pressure pipelines.

3.Process flow
Feed - uncoil - straighten - shear and buttweld - loop storage - form - HF welder - IF anneal - cool - size -cut - output - end bevel - hydraulic test - collect .

4. Machine parts in the working line

(1) Uncoiler

(2) Hoop cage or Horizontal Accumulator

(3) Main Machine:

  • Forming Machine
  • Roller System of Forming
  • Seam Guide
  • High Frequency Induction Welding Machine
  • Roller System for Moving
  • Burr Removing Frame (Inside and outside Burr )
  • Water Cooling System
  • Sizing Machine
  • Roller System of Leveling
  • Speed Testing Wheel
  • Turkish Frame
  • Auto Flying Saw Controlled by Computer
  • Run out table
  • Electric Control Equipmen
  • High Frequency Welding Machine

More Specification

Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m2)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100
