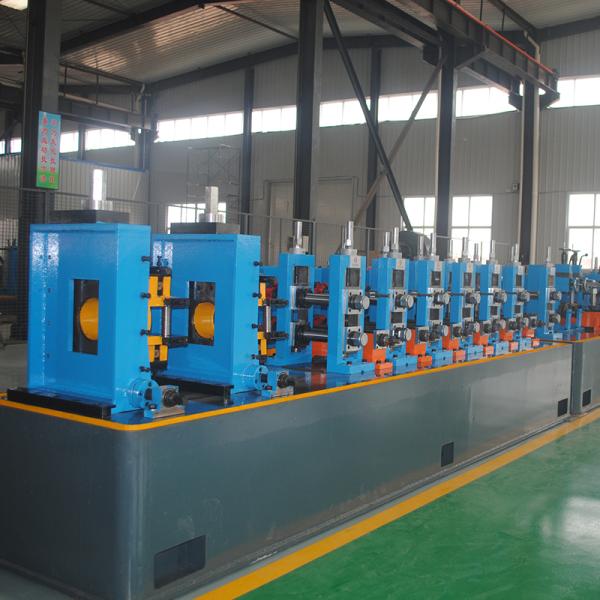

Automatic ERW Pipe Mill for 21-63mm Steel Pipes 0.8-3.0mm Thickness
Automatic ERW Pipe Mill for 21-63mm Steel Pipes 0.8-3.0mm Thickness
Automatic ERW Pipe Mill for 21-63mm Steel Pipes 0.8-3.0mm Thickness
Automatic ERW Pipe Mill for 21-63mm Steel Pipes 0.8-3.0mm Thickness
Automatic ERW Pipe Mill for 21-63mm Steel Pipes 0.8-3.0mm Thickness
Automatic ERW Pipe Mill for 21-63mm Steel Pipes 0.8-3.0mm Thickness
Specifications
Brand Name :
Tengtian
Model Number :
HG60
Certification :
CE, ISO9001, BV
Place of Origin :
HEBEI,CHINA
MOQ :
1 set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 set per year
Delivery Time :
2.5 months
Packaging Details :
Export waterproof and Seaworthy packing.
material :
carbon steel,stainless steel,low alloy steel
Pipe Diameter :
21 - 63mm
product speed :
Max 50m/min
Max Thickness for Square Pipe :
0.8-3.0mm
certification :
CE ISO
worm gearing :
Max.80m/min
product name :
Automatic ERW Pipe Mill Weld Steel Pipe 0.8-3.0mm Max Thickness For Square Pipe
keywords :
Automatic ERW Pipe Mill
Description

The mill is used to manufacture of round pipe of Φ12mm-Φ32mm with thickness of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.

1. H.F. Welder: GGP150Kw Solid State High Frequency Welder
2. Line Spees: Max. 120m/min
3. Tube Length: 4-12m
4. Cutting Accuracy: ±3mm
5. Electric installed capacity: appro. 300KW
6. Size of whole line: about 50X5m

Specification

Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m2)
HG32 10-32 0.4-1.5 30-100 250 100 12x100
HG50 12-50 0.6-2.5 30-90 300 150 12x100
HG76 12-76 1-3 30-90 320 200 12x100
HG89 32-89 1-4 30-80 350 300 12x100
HG114 45-114 1.5-5.0 30-60 400 300 12x100
HG165 60-165 3-7 30-50 600 400 12x100
HG219 114-219 4-8 20-40 800 500 15x150
HG273 114-273 4-10 15-30 1000 600 18x160
HG325 165-325 4-10 10-30 1200 600 12x100
HG426 165-426 4-12.7 8-25 1400 800 12x100
HG508 219-508 4-16 8-20 2000 1000 12x100

Automatic ERW Pipe Mill for 21-63mm Steel Pipes 0.8-3.0mm Thickness
