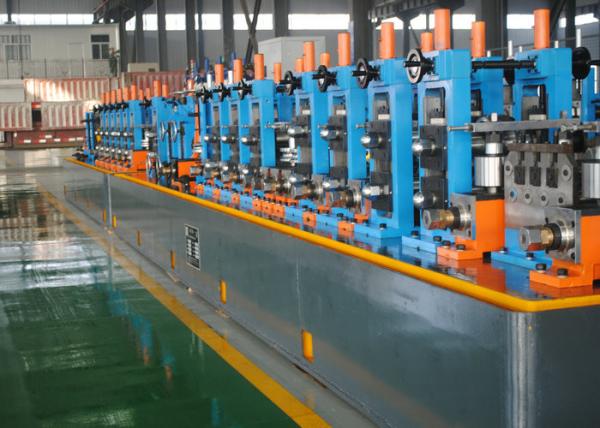

Precision Tube Mill for 10-50mm Carbon Steel Pipes 120m/min
Precision Tube Mill for 10-50mm Carbon Steel Pipes 120m/min
Precision Tube Mill for 10-50mm Carbon Steel Pipes 120m/min
Precision Tube Mill for 10-50mm Carbon Steel Pipes 120m/min
Specifications
Brand Name :
Tengtian
Model Number :
HG50
Certification :
CE ISO
Place of Origin :
HEBEI,CHINA
MOQ :
1 set
Price :
$100000 to $1 million
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
three month
Packaging Details :
packed in seaworthy material
Product name :
Precision Tube Mill Diameter10 - 50mm Tube Making Machine / Pipe Mill Line
product speed :
Max 120m/min
special require :
can design according to the customer
pipe diameter :
10-50mm
type of welding :
high frequency welding
Tolerance :
±0.05mm
Cutting Tolerance :
±0.05mm
Frequency :
50Hz
Pipe Diamete :
25-60 mm
Material :
Carbon Steel
Product :
square pipe,round
Welding Type :
High Frequency Welding
Tube Diameter Range :
6mm - 50mm
Adjustment Ty :
By turbine worm
Model :
HG60
Speed :
100m / min
Adjusting :
worm gearing
Key Word :
Precision Tube Mill
Description
High frequency tube Straight Seam Welding Pipe Mill, Pipe making machine
Packaging & Delivery

Packaging Details

This kind of machine should adopt nude packaging and sea shipping by container.

Delivery Time

Shipped in 45 days after payment

1. Description

This equipment is specially used for producingΦ20-Φ80mm, δ0.5-2.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm,1.2-3.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be according to suitable range of pipe diameter and wall thickness.

2. Applicable material:

1 Raw material: Low-carbon steel,

2 Thickness of steel strip: 1.0-3.5mm
3 The width of steel strip: 60-240mm
4 I.D. of steel coil: Φ450-Φ550mm
5 O.D. of steel coil: Φ800-Φ1200mm
6 Maximum weight coil: 2500kgs

3. Dimension range of processing steel tube:

1 O.D of pipe: Φ20-Φ80mm
2 Wall thickness: 1.0-3.5mm (square pipe :1.2-3.0mm)

3 Length: 4-8m
4 Milling speed: 60-70m/min
5 High-frequency equipment power: 250 KW (Solid state)
6 Voltage:380V/440V,50HZ

4. Milling speed: 20-100M/min(choose different speed as per different pipe diameter and thickness)

5. Product (steel tube) process flow:

Raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube

After-sales Service Provided

 Engineers available to service machinery overseas
Warranty 1 year
Certification ISO9001:2010
Application Used in Decoration,Furniture,Household, hand railing , industrial area etc
Pipe Material Stainless steel / Carbon steel / Iron / Aluminum / Copper/ Galvanize etc
Type Pipe mill
Diameter 12-76mm
Thickness 0.3-2.0mm
Horizontal shaft 50mm
Vertical shaft 30mm
Pipe shape Round / Square / Rectangle
Welding type Argon welding
