1.0-6.0mm Steel Slitting Machine for Carbon & Stainless Steel
1.0-6.0mm Steel Slitting Machine for Carbon & Stainless Steel
1.0-6.0mm Steel Slitting Machine for Carbon & Stainless Steel
1.0-6.0mm Steel Slitting Machine for Carbon & Stainless Steel
Specifications
Brand Name :
Tengtian
Model Number :
SJ1600*4
Certification :
CE ISO
Place of Origin :
HEBEI,CHINA
MOQ :
1 set
Payment Terms :
Western Union,L/C,T/T
Supply Ability :
150 set per year
Delivery Time :
two months
Packaging Details :
packed in seaworthy material
Price :
$100000 to $1 million
Name :
Thickness 1.0 - 6.0mm Steel Slitting Equipment / HR Steel Slitting Machine
special require :
can design according to the customer
steel thickness :
0.5-4.0mm
product speed :
Max 120m/min
material :
carbon steel,stainless steel
Description

Thickness 1.0 - 6.0mm Steel Slitting Equipment / HR Steel Slitting Machine

Quality · Efficiency · Energy

Passed the IS09001:2000 international standard certification

Product Description

Hydraulic Metal Steel Coil Slitting Machine
Material Stainless Steel 1.0-6.0mm Steel Slitting Machine for Carbon & Stainless Steel
Thinkness Range 0.2-2.0mm
Width 800mm
Entry Material 460-520mm
Recoiler Material 480-510mm
Max Diameter 1500mm
Max Weight of Entry material 8T
Max Weight of Recoiler Material 8T
Cutting Speed 0~120m/min
Horizonta beat ±0.01mm
Vertical beat ±0.01mm
Voltage 380V
Container size 1×20GP

1.0-6.0mm Steel Slitting Machine for Carbon & Stainless Steel

Component

Foshan Manufacturers Steel Strip Slitting Machine Made in China include these parts:
1. Feeding trolley 1 set
2. Hydraulic uncoiler 1 set
3. Side guards & Slitting Machine 1 set
4. Loop traversing crane 1 Group
5. Separation device and the tension generator 1 Group
6. Separation device & hydraulic recoiling machine 1 Group
7. Discharge port trolley 1 set
8. Hydraulic system 1 set
9. Power control system 1 set
10. Other components 1 set

Description:The series production is used for the metal plate decoiling, slitting and winding into several volumes needed width coil plate. Suitable for processig of cold rolled and hot rolled carbon steel,silicon steel, tinplate, stainless steel and the surface of all kinds of metal plate after plating. The Slitting Line PLC control, human-machine interface, according to a high degree of automation,simple operation and reliable.

High Precision Carbon Steel Stainless Steel Slitting Line Machine

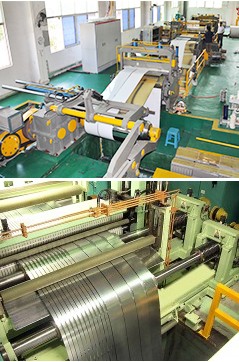

Slitting Line Machine Profile:

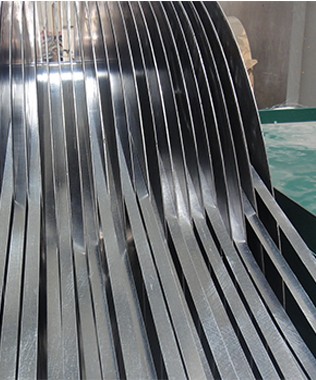

Slitting line machine mainly composed of uncoiler,feeder,slitter and recoiler.its function is to slit a wide coil to stated width strips coil along with the length direction which can be used for milling,welding pipe,cold bend forming,stamping as billet.At same time,changing different material blade can slit various metal coils.

Product Process:

Loading coil car→Uncoiler→Straightener device→Pinch roll&leveler & hydraulic shearer →Loop pit →Side guide →Slitter →Transition platform & scrap winder →Loop pit →Tension station→Recoiler→Unloading coil car

The Basic Parameters:

material carbon steel,stainless steel,galvanized steel
material thickness 1.0-6.0mm
material width 900-1600mm
coil ID Ø508/610MM
Coil OD <2500mm
Coil weight Max 30 Ton

Other Model Of Slitting Line

Model steel thickness steel width steel coil weight
3*1600mm 0.5-3.0mm 900-1600mm 30 Ton
4*1600mm 0.5-4.0mm 900-1600mm 30 Ton
6*1600mm 1-6mm 900-1600mm 30 Ton
8*2000mm 2-8mm 900-2000mm 35 Ton
10*2200mm 3-10mm 900-2200mm 35 Ton
12*2200mm 3-12mm 900-2200mm 35 Ton
16*2500mm 4-16mm 900-2500mm 35 Ton
20*2500mm 6-20mm 900-2500mm 35 Ton

Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping
