Straight Seam Submerged Arc Od1422.4mm Welded Steel Pipes
Straight Seam Submerged Arc Od1422.4mm Welded Steel Pipes
Specifications
Brand Name :
Huayang Steel Pipe
Model Number :
Out Diameter:508mm - 1422.4mm (20"-56")Wall Thickness:9.53mm-50mmLength:6M-25M
Certification :
API/CE/ISO
Place of Origin :
Cangzhou China
MOQ :
50 Tons
Payment Terms :
T/T, L/C
Supply Ability :
10000 tons per month
Delivery Time :
30 Days
Packaging Details :
Bare Pipe
Outside Diameter :
508mm - 1422.4mm (20"-56")
Wall Thickness :
12.5mm—50mm
Quality Standards :
API、DNV、ISO、DEP、EN、ASTM、DIN、BS、JIS、GB、CSA
Length :
6m—12.5m
Grades :
GR.B
Section Shape :
Round
Surface Treatment :
bare, oiled, painting, etc
Alloy Or Not :
Non-Alloy
Description

Straight Seam Submerged Arc Welded Steel Pipe LSAW Steel Pipe

LSAW steel pipe (Longitudinally Submerged Arc Welding abbreviated as LSAW) is a professional expression term for LSAW steel pipe. It uses a single medium and thick plate as the raw material, and the steel plate is pressed (rolled) into a tube blank in a mold or a forming machine. The pipe is produced by submerged arc welding and expanded diameter.

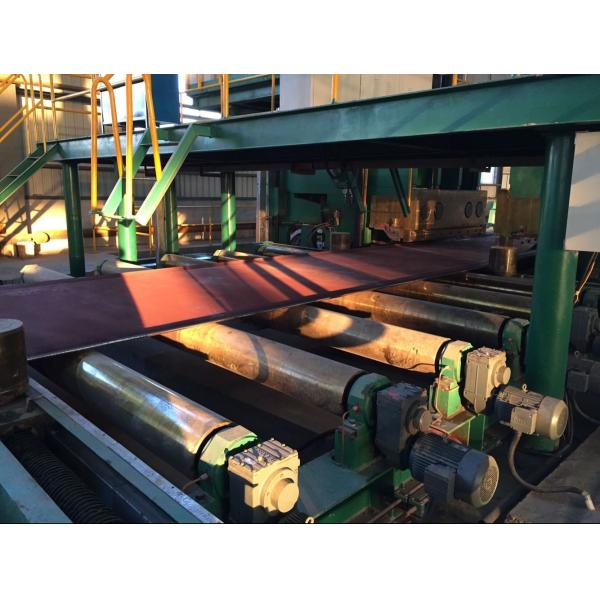

JCOE LSAW pipe forming process:
Forming: After several steps of stamping on the JCO forming machine, first half of the steel plate is pressed into a "J" shape, then the other half of the steel plate is pressed into a "J" to form a "C" shape, and finally pressurized from the middle to form An open "O"-shaped tube blank is formed.

Types Standard
SY/T5040-2000 SY/T5037-2000 SY/T9711.1-1977 ASTM A252 AWWA C200-97 API 5L PSL1
Tube end OD deviation ±0.5%D ±0.5%D -0.79mm～+2.38mm <±0.1%T <±0.1%T ±1.6mm
Wall thickness ±10.0%T D<508mm, ±12.5%T -8%T～+19.5%T <-12.5%T -8%T～+19.5%T 5.0mm
D>508mm, ±10.0%T T≥15.0mm, ±1.5mm
