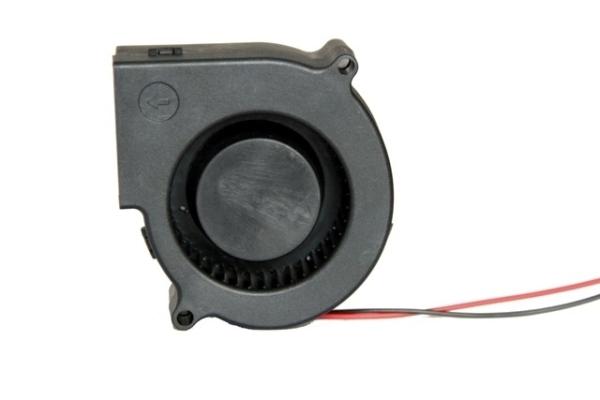

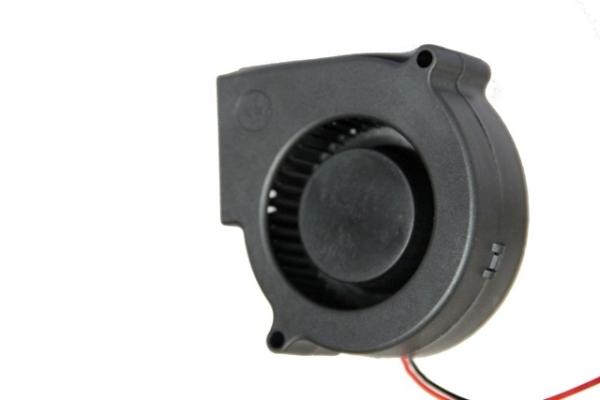

Industrial Equipment DC Brushless Fan 24V Plastic Material 3500/4500rpm Speed
Industrial Equipment DC Brushless Fan 24V Plastic Material 3500/4500rpm Speed
Industrial Equipment DC Brushless Fan 24V Plastic Material 3500/4500rpm Speed
Industrial Equipment DC Brushless Fan 24V Plastic Material 3500/4500rpm Speed
Specifications
Brand Name :
MX/OEM/ODM
Model Number :
MX7530GB(S)H1
Certification :
CE/ROSH/UL
Place of Origin :
China
MOQ :
200pcs
Price :
US$2.00/PCS-US5.00/PCS
Supply Ability :
20,000/DAY
Packaging Details :
CARTON BOX
Material :
Plastic
color :
Black
Bearing type :
Dual Ball Bearing Or Sleeve Bearing
Rated Voltage :
7.0-13.8V
Current :
0.20-0.60A
Speed :
3500/4500rpm
Description

75×75×25mm DC 12V Brushless Fan / 24V DC Blower fan / Industrial Equipment Fan​


Applications:

  • Ventilation Equipment & System
  • Heating Equipment & System
  • Air Conditioner
  • Refrigeration equipment
  • MDBS(Mobile Data Base Station)
  • Telecom power supply station


Description:

● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.

A. General Specification

ITEM Specification Condition
01 Part No. MX7525GBH1
02 Dimension 75×75×25mm
03 Rated Voltage 12VDC
04 Start-up Voltage 3.5VDC
05 Operating Voltage 3.5~5 VDC a. Rated Voltage
06 Rated Speed 4400rpm ±10% b. 25℃
07 Rated Current 0.35A ±10% c. 65% RH
08 Rated Power 4.2W d. Measured after 5 Mins
09 Max Airflow 15.33 CFM

a. PQ Measurement Apparatus : (LW9266-SR)

b. Standard : AMCA

c. Rated Voltage

d. Rated Current
0.434 M3/Min
10 Max Static Pressure 0.977 Inch-H2O
24.82 MmH2O
11 Life Expectancy 20000hrs at 40℃

a.L10 at Conf. Level 90%

b. Rated Voltage
12 Noise Level 50.5dB

a. Rated Voltage

b. Non-Echo Chamber

c. Standard:CNS 8753/ISO3744

d.Test Condition:ISO 7779

e. Distance: 1.0M
13 No. of Pole 4 Poles
14 Waterproof IP55

B. Electrical Specification

ITEM Specification. Condition

01

 Locked Rotor Protection □ Safety Condition
□

Auto power off after locked at rated voltage for 1sec

After auto power off ,circuit attempt restart in 2 to 6sec
02 Polarity Protection □ Open circuit when Vcc&GND are exchanged
■ Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged
03 Insulation Resistance 10MΩ Between unshielded wire and frame at 500VDC/min
04 Dielectric Strength 5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min
05 Special Function □ Soft Start □ Current Limiter

C. Main Materials, Parts Specification

01 Bearing ■Dual Ball Bearing □ Sleeve Bearing
02 Frame ■ PBT of UL94V-0. □ Die-cast Aluminum Alloy
03 Impeller ■ PBT of UL94V-0. □ Steel
04 Bobbin □ PBT of UL94V-0.
05 Lead Wire ■ Red(+) ■ Black(-) □ Blue(FG) UL1007 26#
□ Yellow(PWM) □ White(RD) 2 wires 300±10mm
06 Connector No
07 Tube No

D.Environmental Specification

ITEM Specification. Condition
01 Operating Temp. Range Temperature : -10 ℃ ~70℃
Humidity :15%~ 90% RH (Frost Eliminated)
02 Storage Temp. Range Temperature : -40 ℃ ~70℃
Humidity :15%~ 90% RH (Frost Eliminated)

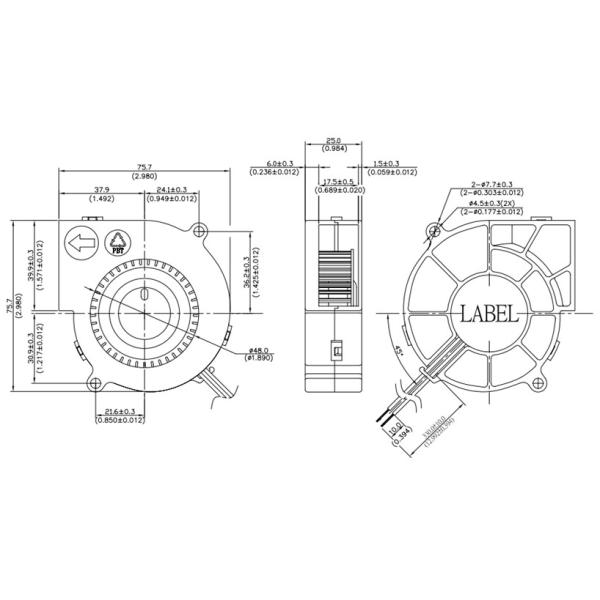

Dimensions (Unit:mm)

Industrial Equipment DC Brushless Fan 24V Plastic Material 3500/4500rpm Speed

Shipment:
You could choose the shipping way by yourself .
You could choose the freight forward company by yourself .
We could arrang the shipment according to your require .
If you have any requirements you could contact me soon .
1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )
2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;
Fans quantity : over 5K , the delivery time is 15 - 20working days
3 . International express : UPS / DHL / FEDEX and so on .


Any more information , please feel free to contact Helen --→
We will reply you within 2 hours . Thanks

Skype : helen860615
QQ : 304994675
Tel : 86 755 26070926
Mobile :0086-15818540201
