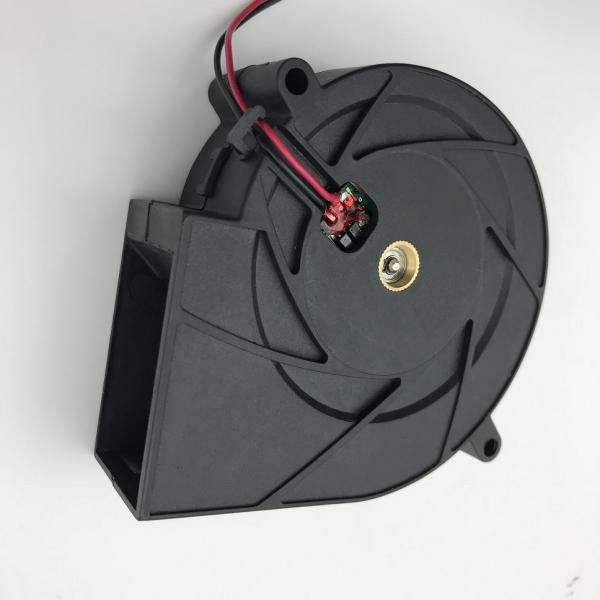

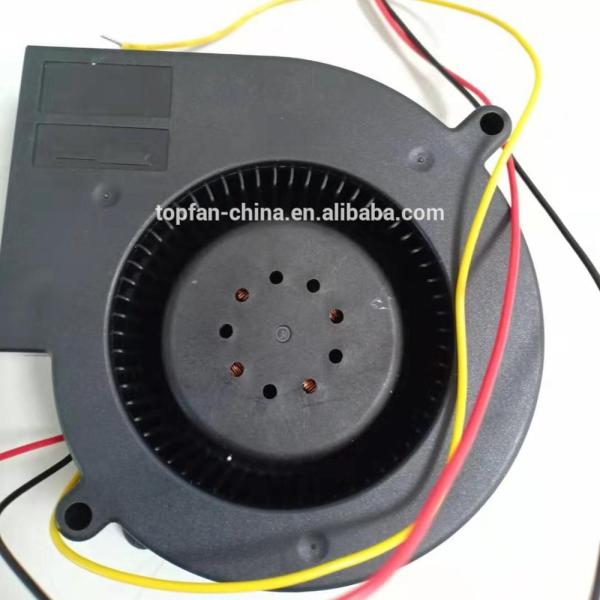

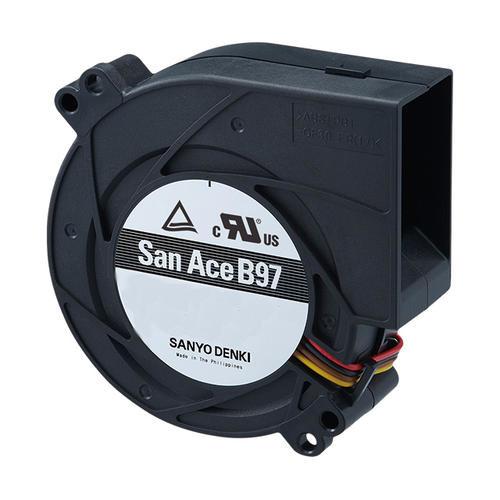

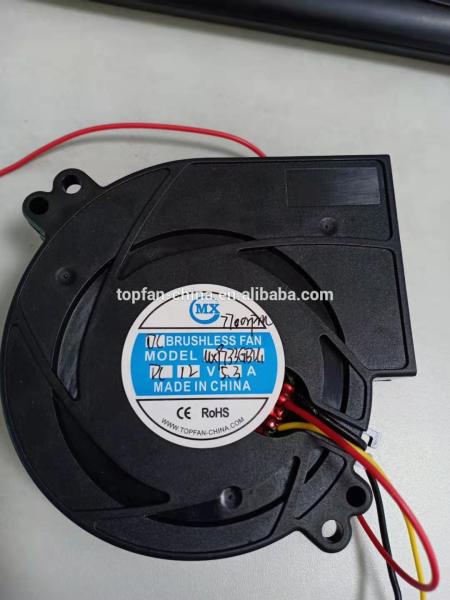

9BMC24P2G001 DC Blower / 97 x 94 x 34 mm High Power Blower Fan / DC Ventilation Blower

San Ace High Speed Blower Fan 97 x 94 x 34 mm, low noise and long life expectancy, are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

Detailed Product Description:

• Frame and Impeller: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1).

• Lead Wires : UL 1007 AWG #24 OR Equivalent
• Expected life : See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60ºC, rated voltage).
• Motor protection function : Locked rotor burnout protection, Reverse polarity protection.
• Dielectric strength: 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame).
• Insulation resistance :10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame).
• Sound pressure level (SPL): At 1 m away from the air inlet.
• Storage temperature : -30 to +70ºC (Non-condensing).
• Lead wire : Red Black or Blue Sensor Yellow.
• Mass : 200 g

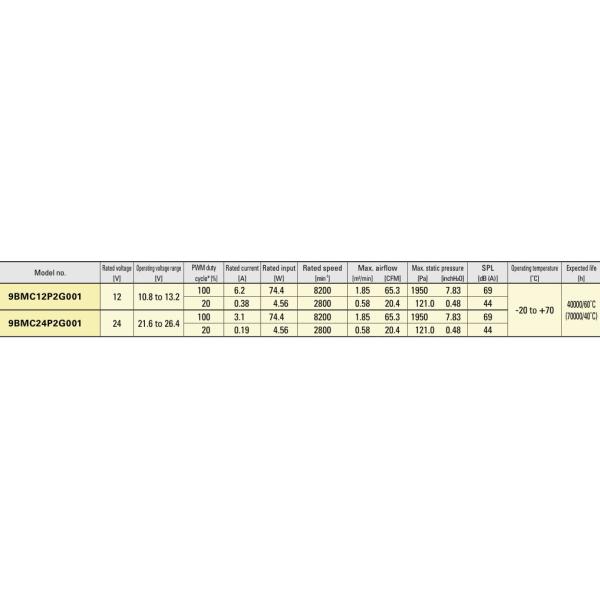

Specifications:

The models listed below have pulse sensors with PWM control function.

* PWM frequency: 25 kHz ** Fan does not rotate when PWM duty cycle is 0%.

The following sensor and control options are available for selection.

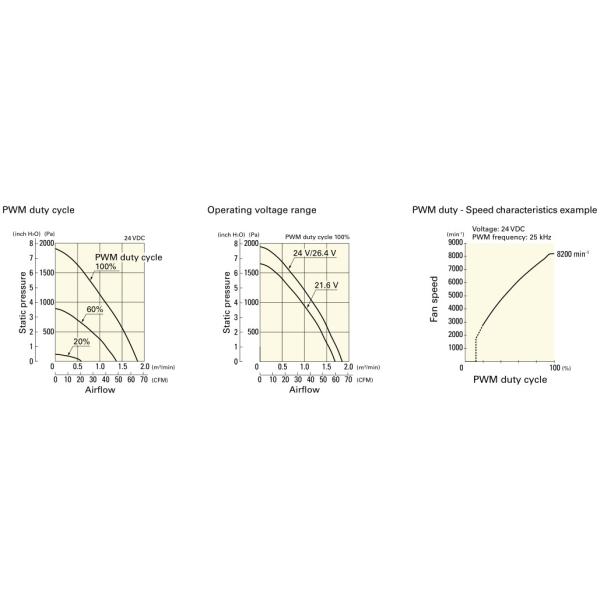

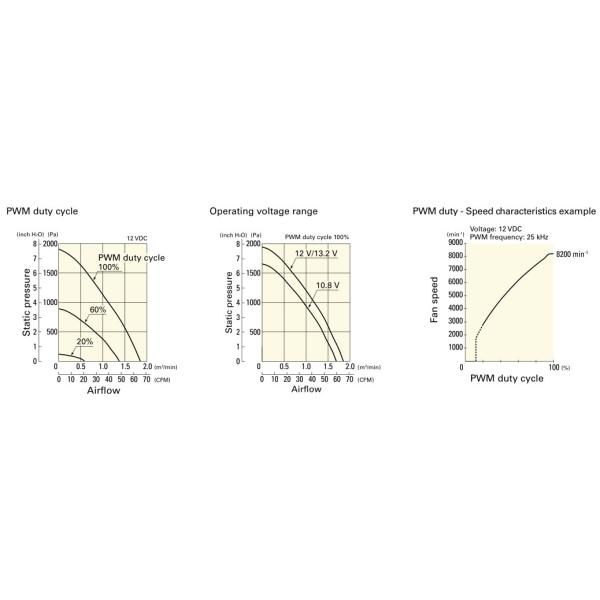

Airflow - Static Pressure Characteristics / PWM Duty - Speed Characteristics Example

9BMC12P2G001 With pulse sensor with PWM control function

9BMC24P2G001 With pulse sensor with PWM control function

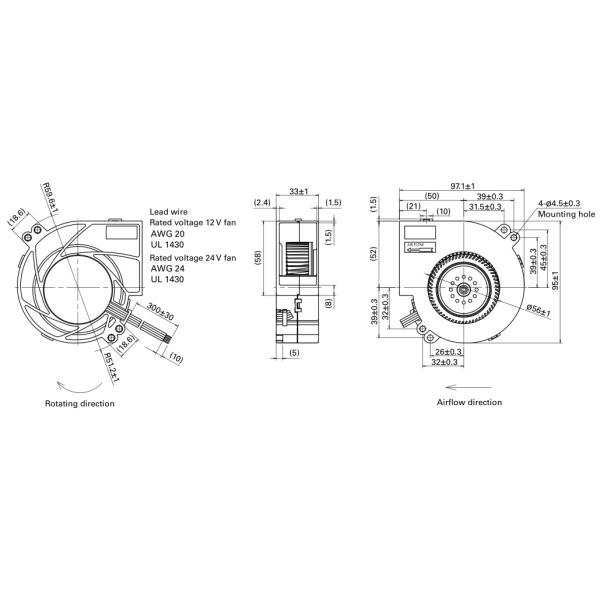

Dimensions (unit: mm) (With pulse sensor with PWM control function)

Shipment:

You could choose the shipping way by yourself .

You could choose the freight forward company by yourself .

We could arrang the shipment according to your require .

If you have any requirements you could contact me soon .

1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )

2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20working days.

3 . International express : UPS / DHL / FEDEX and so on .

If you want another rpm or voltage or other reqirement , pls contact me for more details , thanks!
For Special Cooling Fan , Such as : moistureproof , waterprrof , turbocharger , soft start , Reversible , temperature control , PWM speed control , the RD alarm and the FG signal etc , pls contact me free .
