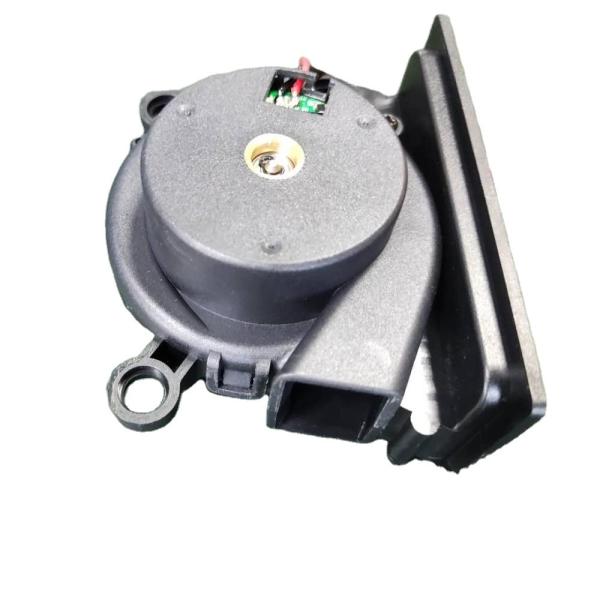

8V DC Centrifugal Blower Fan For Household Sweeper
8V DC Centrifugal Blower Fan For Household Sweeper
8V DC Centrifugal Blower Fan For Household Sweeper
8V DC Centrifugal Blower Fan For Household Sweeper
Specifications
Brand Name :
MX/OEM/ODM
Model Number :
MX7146GBH8
Certification :
CE/ROHS
Place of Origin :
CHINA
MOQ :
500PCS
Price :
usd7.9-19.9
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs/week
Delivery Time :
7-14 working days
Packaging Details :
CARTON
Color :
black
Air Flow :
32.5CMF
Voltage :
8V
Speed :
14000rpm
Pressure :
950Pa
Application :
Home Appliance
Description

Sweeper cooling fan, blower fan for household sweeper, 8V DC centrifugal blower 71*46mm

Product Description


A: General Specification

ITEM Specification Condition
01 Part No.
02 Dimension 71×46mm
03 Rated Voltage 8VDC
04 Start-up Voltage 6VDC
05 Operating Voltage 6~10VDC a. Rated Voltage
06 Rated Speed 14000rpm ±10% b. 25℃
07 Rated Current 1.35A ±10% c. 65% RH
08 Rated Power 10.8W d. Measured after 5 Mins
09 Max Airflow 32.5 CFM

a. PQ Measurement Apparatus : (LW9266-SR)

b. Standard : AMCA

c. Rated Voltage

d. Rated Current
10 Max Static Pressure 950 Pa
11 Life Expectancy 8000hrs at 40℃

a.L10 at Conf. Level 90%

b. Rated Voltage
12 Noise Level 61.5B

a. Rated Voltage

b. Non-Echo Chamber

c. Standard:CNS 8753/ISO3744

d.Test Condition:ISO 7779

e. Distance: 1.0M
13 No. of Pole 4 Poles
14 Rotating Direction Clockwise(From Label side)

B: (Main Materials, Parts Specification):

Bearing ◊ (Dual Ball Bearing) √ (Sleeve Bearing)
Frame √ PBT of UL94V-0. ◊ Die-cast Aluminum Alloy
Impeller √ PBT of UL94V-0. ◊ Steel
Bobbin PBT of UL94V-0.
Lead Wire √ Red(+) √ Black(-) ◊ Blue(PWM) UL007 24#
◊ Yellow(FG) ◊ White(RD) 2 wires 370±10mm
Connector 2.0-2P
Tube No



C: Electrical Specification:

D.Environmental Specification

ITEM Specification. Condition
01 Operating Temp. Range Temperature : -10 ℃ ~70℃
Humidity :15%~ 90% RH (Frost Eliminated)
02 Storage Temp. Range Temperature : -40 ℃ ~70℃
Humidity :15%~ 90% RH (Frost Eliminated)


E: Outline Dimension

Packaging & Shipping

You could choose the shipping way by yourself .

You could choose the freight forward company by yourself .

We could arrang the shipment according to your require .

If you have any requirements you could contact me soon .

1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )

2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20working days

3 . International express : UPS / DHL / FEDEX and so on .

Our Services

1.We are professtional and experienced manufature of Axial Fan in China.

2.Customization, the size and functions of fan manufacture according to your demands.

3.We’ll reply you in 24 hours after you send inquiry to us.

4.We holding the principle of good faith to manage our company for 25 years.
