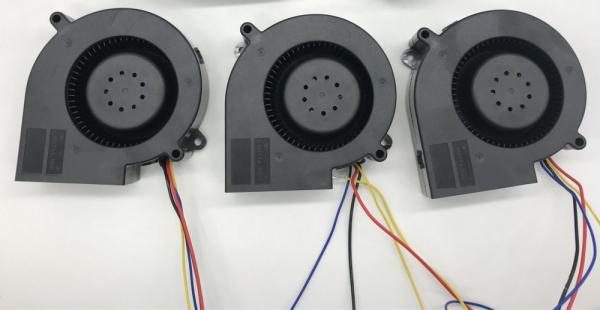

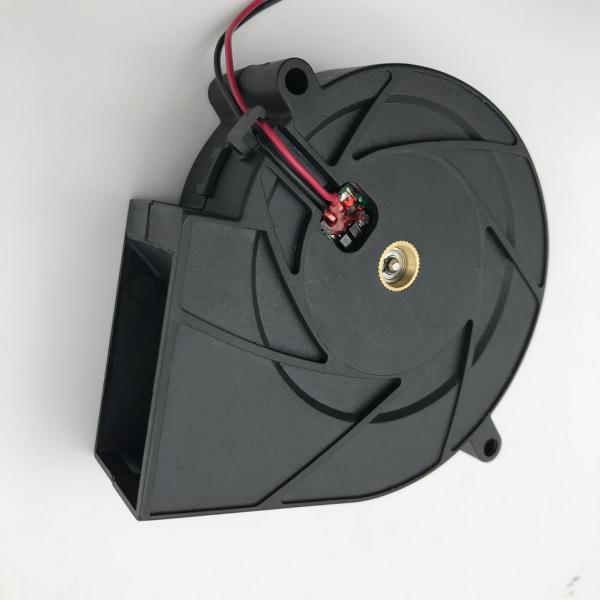

4 inch San Ace High Air Flow DC Blower Fan / SANYO 97 x 94 x 34 mm High Power Snail Cooling Fan

San Ace High Speed Blower Fan 97 x 94 x 34 mm , low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Detailed Product Description:

• Frame and Impeller: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1).
• Expected life : See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60ºC, rated voltage).
• Motor protection function : Locked rotor burnout protection, Reverse polarity protection.
• Dielectric strength: 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame).
• Insulation resistance :10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame).
• Sound pressure level (SPL): At 1 m away from the air inlet.
• Storage temperature : -30 to +70ºC (Non-condensing).
• Lead wire : Red Black or Blue Sensor Yellow.
• Mass : 190 g

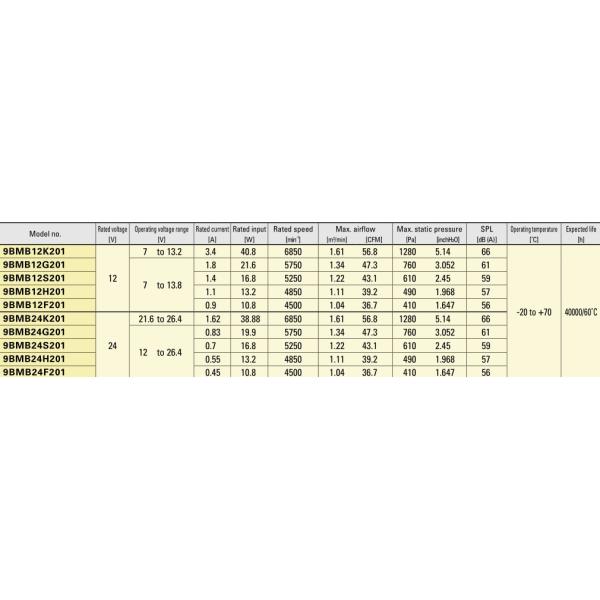

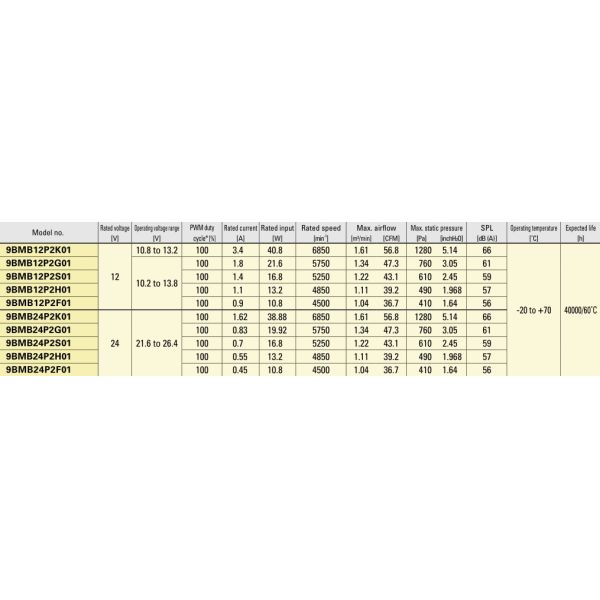

A: Specifications:

The models listed below have pulse sensors with PWM control function.

The models listed below have pulse sensors.

* PWM frequency: 25 kHz ** Fan does not rotate when PWM duty cycle is 0%

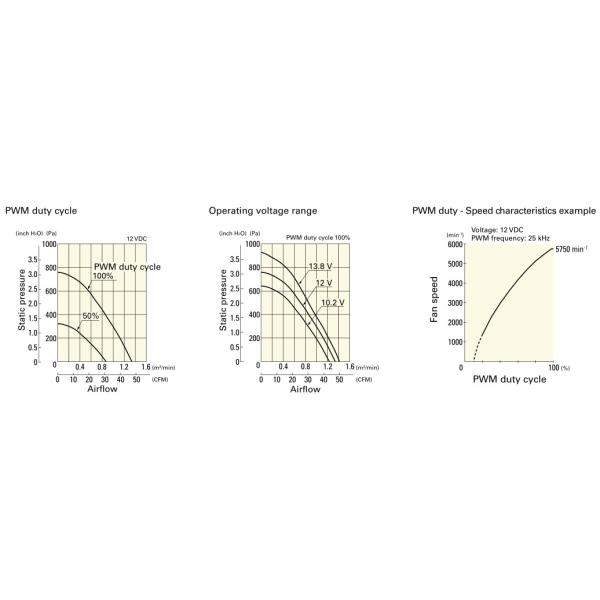

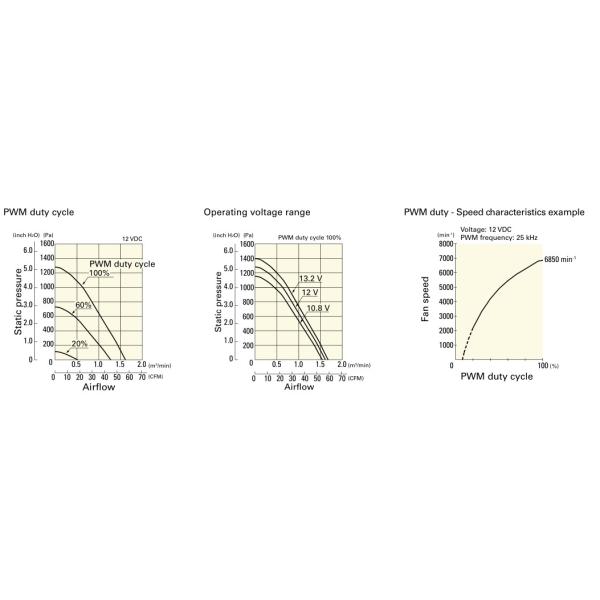

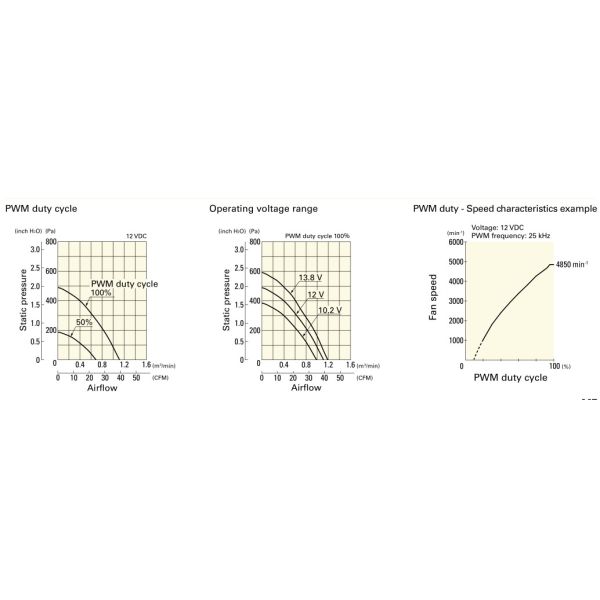

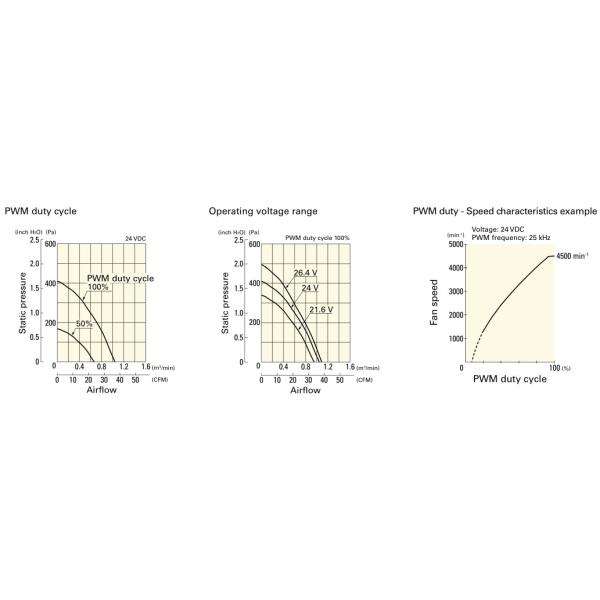

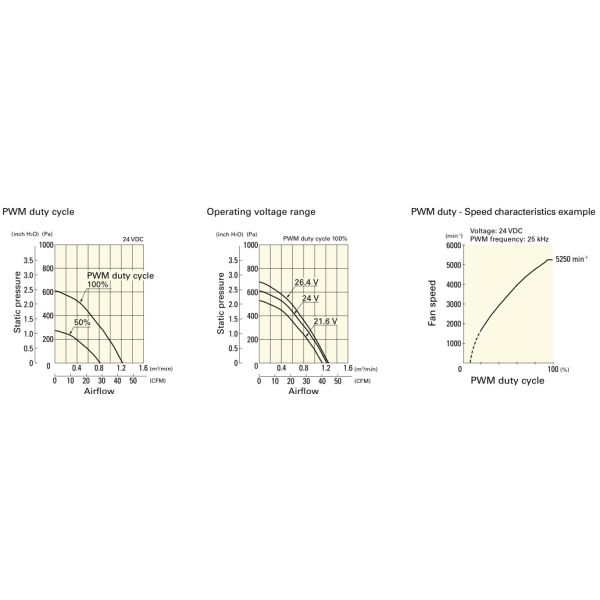

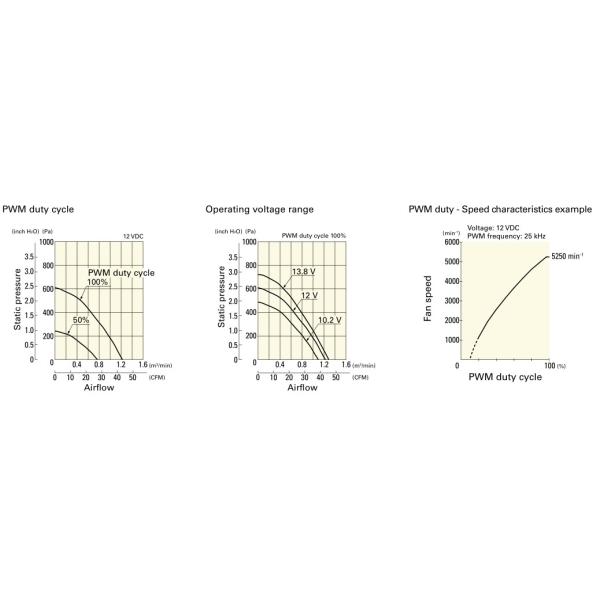

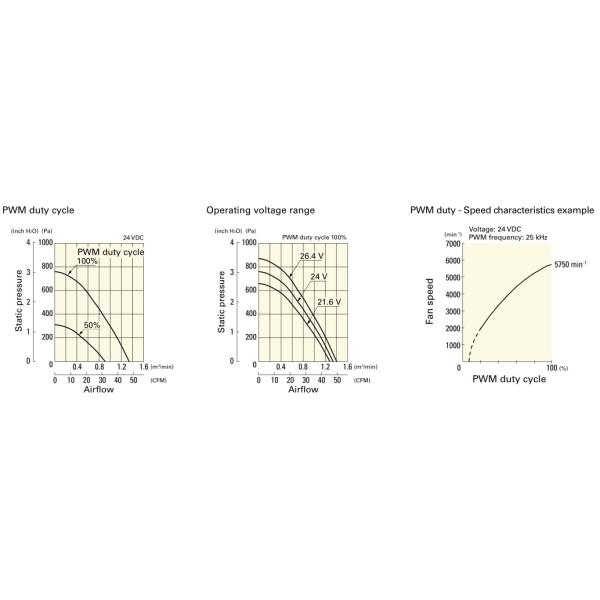

Aiflow - Static Pressure Characteristics / PWM Duty - Speed Characteristics Example

9BMB12P2K01 With pulse sensor with PWM control function

9BMB12P2G01 With pulse sensor with PWM control functio

9BMB12P2S01 With pulse sensor with PWM control function

9BMB12P2H01 With pulse sensor with PWM control function

9BMB12P2F01 With pulse sensor with PWM control function

9BMB24P2K01 With pulse sensor with PWM control function

9BMB24P2G01 With pulse sensor with PWM control function

9BMB24P2S01 With pulse sensor with PWM control function

9BMB24P2H01 With pulse sensor with PWM control function

9BMB24P2F01 With pulse sensor with PWM control function

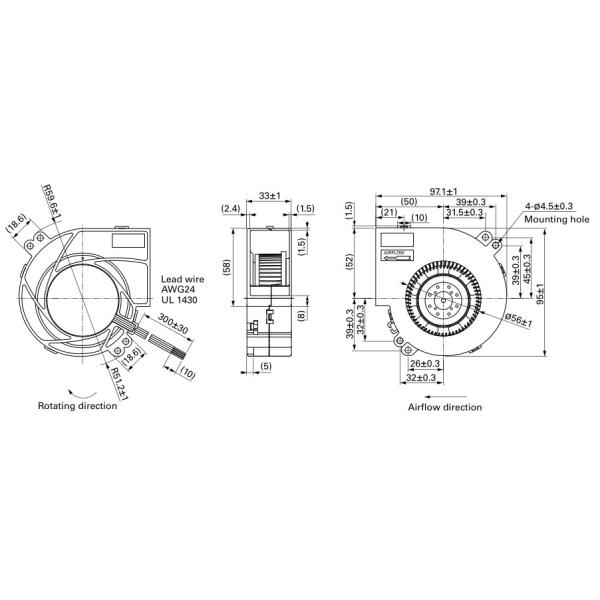

Dimensions (unit: mm) (With pulse sensor with PWM control function)

Shipment:

You could choose the shipping way by yourself .

You could choose the freight forward company by yourself .

We could arrang the shipment according to your require .

If you have any requirements you could contact me soon .

1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )

2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20working days

3 . International express : UPS / DHL / FEDEX and so on .

If you want another rpm or voltage or other reqirement , pls contact me for more details , thanks!
For Special Cooling Fan , Such as : moistureproof , waterprrof , turbocharger , soft start , Reversible , temperature control , PWM speed control , the RD alarm and the FG signal etc , pls contact me free .
