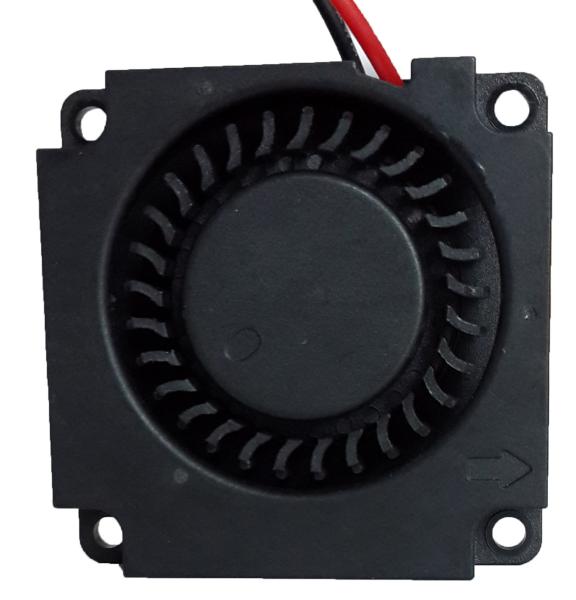

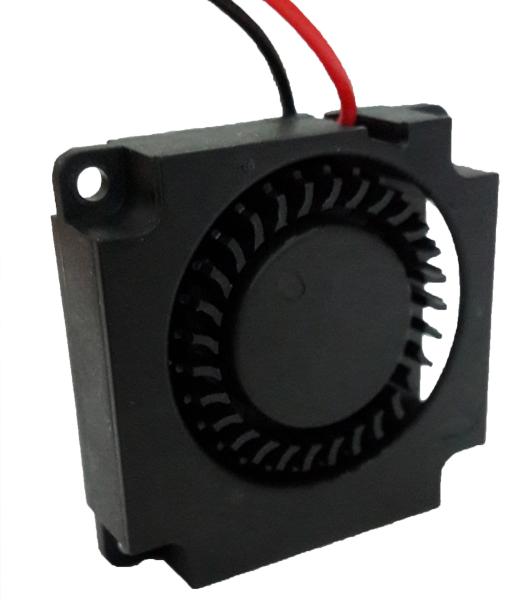

Mini 5V Centrifugal DC Blower Fan / 35 x 35 x 10mm 12V Xbox PS4 Cooling Fan
Mini 5V Centrifugal DC Blower Fan / 35 x 35 x 10mm 12V Xbox PS4 Cooling Fan
Mini 5V Centrifugal DC Blower Fan / 35 x 35 x 10mm 12V Xbox PS4 Cooling Fan
Mini 5V Centrifugal DC Blower Fan / 35 x 35 x 10mm 12V Xbox PS4 Cooling Fan
Mini 5V Centrifugal DC Blower Fan / 35 x 35 x 10mm 12V Xbox PS4 Cooling Fan
Mini 5V Centrifugal DC Blower Fan / 35 x 35 x 10mm 12V Xbox PS4 Cooling Fan
Mini 5V Centrifugal DC Blower Fan / 35 x 35 x 10mm 12V Xbox PS4 Cooling Fan
Mini 5V Centrifugal DC Blower Fan / 35 x 35 x 10mm 12V Xbox PS4 Cooling Fan
Specifications
Brand Name :
MX
Model Number :
MX3510GBH1
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
USD 2.5 - USD 4.5 or Negotiable
Payment Terms :
T/T
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received payment
Packaging Details :
Carton Box or Negotiable
Part Name :
MX3510G Series
Voltage :
5 - 12 V ( Customizable )
Power Consumption :
0.3 - 1.08 W ( Customizable )
Air Flow :
1.34 - 2.12 CFM ( Customizable )
Speed :
5500 - 8500 RPM ( Customizable )
Bearing Type :
Ball Bearing / Sleeve Bearing
Description


5V DC Blower Fan / 35mm x 35mm x 10mm Mini Blower Fan / 12V Xbox PS4 Cooling Fan​


1 . Descriptio :

  • 5V DC 35 x 35 x 10mm Mini Blower Fan , DC Burshless Fan , DC Centrifugal Fan , Computer Fan , DC Cooling Fan .
  • It's a new special mini fan for equipment of confined space .

2 . Material :

  • Frame : Plastic ( UL94V-0 )
  • Impeller : Plastic ( UL94V-0 )
  • Leadwire : UL1007 AWG#26 or Equivalent (+) : Red ( - ) : Black

3 . Protection :

  • Motor : Impedance Protected and Reverse Polarity Protected

4 . Expected Life :

  • Ball bearing : 50 , 000 hours ( 40℃ )
  • Sleeve Bearing : 30 , 000 hours ( 40℃

5 . Allowable Ambient Temperature Range :

  • Operating Temperature : -10℃~+70℃
  • Storage Temperature : -40℃~+70℃
  • Non Condensing Environment

6 . Insulation Resistance :

  • Not less than 10M ohm between housing and positive end of lead wire ( red ) at 500V DC .

7 . Dielectric Strength :

  • No damage should at 500 VAC for 60 second , measured with 5mA trip current between
    housing and positive end of lead wire .

8 . Locked Rotor Protection :

  • No damage shall be found after 72 hours continuously at condition of rotation locked ,
    Restarting is automatic as soon as constraint to running has been released

9 . Polarity Protection :

  • No damage shall be found with reverse connection 5 minute at rated voltage . After returning
    to normal polarity , all function shall be normal

10 . Specification :

Model

Rated

Voltage

Operating

Voltage Range

 Current Amp

Rated

Input Power

 Speed Max Air Flow

Max Static

Pressure

 Noise Level
( v ) ( v ) ( Amp ) ( Watt ) ( rpm ) ( CFM ) (Inch-H2O) ( dB-A )
MX3510GBU5 5 4.0 to 6.0 0.20 1.00 8500 2.12 0.44 31
MX3510GBH5 5 4.0 to 6.0 0.12 0.60 7500 1.84 0.34 29
MX3510GBM5 5 4.0 to 6.0 0.09 0.45 6500 1.59 0.24 26
MX3510GBL5 5 4.0 to 6.0 0.06 0.30 5500 1.34 0.16 24
MX3510GBU1 12 7.2 to 13.8 0.09 1.08 8500 2.12 0.44 31
MX3510GBH1 12 7.2 to 13.8 0.08 0.96 7500 1.84 0.34 29
MX3510GBM1 12 7.2 to 13.8 0.06 0.72 6500 1.59 0.24 26
MX3510GBL1 12 7.2 to 13.8 0.05 0.60 5500 1.34 0.16 24

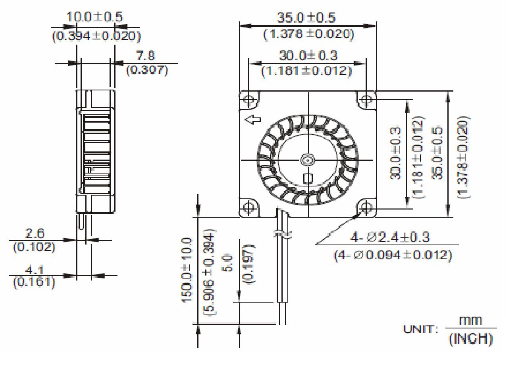

11.Dimensions:

Mini 5V Centrifugal DC Blower Fan / 35 x 35 x 10mm 12V Xbox PS4 Cooling Fan
