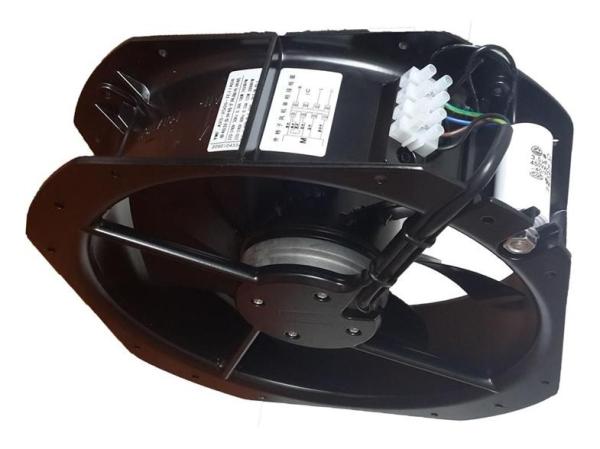

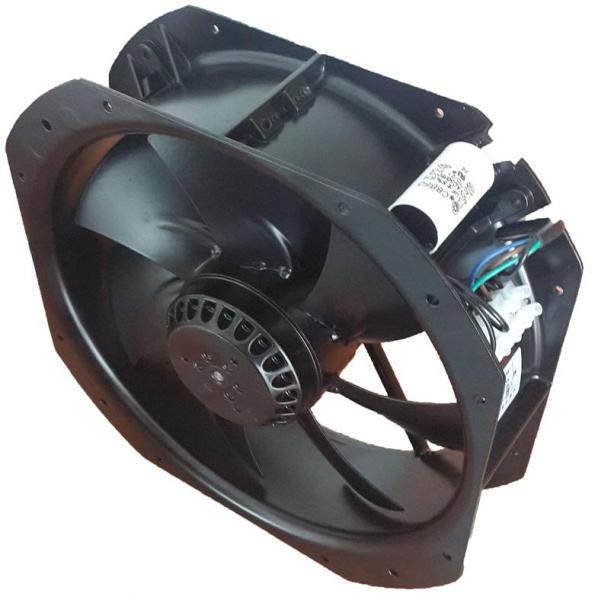

Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan
Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan
Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan
Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan
Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan
Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan
Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan
Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan
Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan
Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan
Specifications
Brand Name :
MX
Model Number :
MX28080ABH22
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton
Product Name :
280×280×80mm AC Brushless Fan
Voltage :
110/120V 220/240V 380V /420V
Frequency :
50/60Hz
Power Consumption :
120W
Max. Static Pressure :
136.7/154.1INCH-H2O
Speed :
2400/2650RPM
Description

Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan

280×280×80mm AC fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 220V AC FAN 280mm ,used for cooling and ventilation.
  • Frame: Aluminum ADC-12,Painted Black
  • Blade:metal
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Ball Bearing
  • Packaging Detail: white/color box, blister package
  • Life Expectancy: Dual Ball Bearing: 50000 hours
  • Sleeve Bearing: 20000-25000 hours
  • Standard: Fully CE, ROHS Approved

Specification :

Model

MX28080ABH11

Outline Dimension

280*280*80mm

Rated Voltage

AC 220V

Voltage Range

AC 220V~240V

Frequency

50/60Hz

Rated Current

1.2A±10%

Power Consumption

120W±10%

Speed

2500RPM±10%

Max. Air flow

1512CFM±10%

Max. Static Pressure

154Inch-H2O

Noise Level

70dB(A)

Weight

2800g

Dielectric Strength

1800V/0.5mA/3s

Temperature Test of Run

t=<70K

Locked Rotor Protection

t=<130K

Environmental Specification

Operating Temperature:-20℃~85℃

Operating Humidity:20%~85%RH

Storage Temperature:-30℃~140℃

Storage Humidity:20%~95%RH

Model:

Model Beaing system Rated voltage (v)

Freq

(HZ)

Current amp (Amp) Rated Input Power Watt Speed (rpm)

Air Flow

(CFM)

 Air Flow (m3/mim)

Max Static Pressure

(Inch-H2o)

 Noise Leve (dB-A)

Weight

(g)
M255RA1H-7P Ball 110/120 50/60 1.2 120 2400/2650 1341/1512 37.9/42.8 136.7/154.1 65/70 2800
M255RA2H-7P Ball 220/240 50/60 0.55 120 2400/2650 1341/1512 37.9/42.8 136.7/154.1 65/70 2800
M255RA3H-7P Ball 380/420 50/60 0.36 120 2400/2650 1341/1512 37.9/42.8 136.7/154.1 65/70 2800
M255RA3H-7P-3 Ball 380/420 50/60 0.32 120 2400/2650 1341/1512 37.9/42.8 136.7/154.1 65/70 2800


Dimension:

Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor FanElectronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan

Electronic Equipment Cooling Fans 280mm , 220V - 240V AC Brushless Motor Fan
