35 mm Equipment Cooling Fan / 35 mm x 35 mm x 10 mm Equipment Motor / Cooler Fan
35 mm Equipment Cooling Fan / 35 mm x 35 mm x 10 mm Equipment Motor / Cooler Fan
35 mm Equipment Cooling Fan / 35 mm x 35 mm x 10 mm Equipment Motor / Cooler Fan
35 mm Equipment Cooling Fan / 35 mm x 35 mm x 10 mm Equipment Motor / Cooler Fan
Specifications
Brand Name :
TOPFAN/ODM/OEM
Model Number :
MX3510AB(S)H1
Certification :
CE/ROHS/UL/SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5/pcs to us$3.00/pcs, and negotiation
Payment Terms :
T/T or western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Product Name :
35 × 35 × 10mm DC Brushless Axial Fans 12V DC
Voltage :
5v 12v
Frame :
Plastic
Impeller :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing
Motor :
Impedance Protected and Reverse Polarity Protected
Speed :
10000rpm
Max air Flow :
7.48CFM
Description

35 mm Equipment Cooling Fan / 35 mm x 35 mm x 10 mm Equipment Motor / Cooler Fan


Brushless axial dc fan 35 mm × 35 mm × 10 mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


Description:

● Brushless DC Fan, Axial DC Fan, DC Motor Fan, Cheap Fan, Portable Fan, CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.

A: Specifications:

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX3510AB(S)H5 B.S 5 3.5-5.5 0.25 1.25 8000 6.51 0.18 0.16 39.42 29.00 10.00
MX3510AB(S)M5 B.S 5 3.5-5.5 0.18 0.90 6000 4.88 0.14 0.10 24.61 26.00 10.00
MX3510AB(S)L5 B.S 5 3.5-5.5 0.12 0.60 4000 3.15 0.09 0.04 11.18 22.00 10.00
MX3510AB(S)H1 B.S 12 7.0-13.8 0.18 2.16 10000 7.48 0.21 0.22 54.23 32.00 10.00
MX3510AB(S)M1 B.S 12 7.0-13.8 0.14 1.68 8000 6.51 0.18 0.16 39.42 29.00 10.00
MX3510AB(S)L1 B.S 12 7.0-13.8 0.10 1.20 6000 4.88 0.14 0.10 24.61 26.00 10.00

B: Electrical Specification:

ITEM

Specification. Condition

Locked Rotor Protection

□

Safety Condition


■

Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec

Polarity Protection

■

Open circuit when Vcc&GND are exchanged

□

Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged

Insulation Resistance

10MΩ Between unshielded wire and frame at 500VDC/min

Dielectric Strength

5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min

Special Function

□

Soft Start
5s (0 to Max speed)

□

Current Limiter



C. (Main Materials, Parts Specification)

Bearing

■(Dual Ball Bearing)

□

(Sleeve Bearing)

Frame

■

PBT of UL94V-0.

□

Die-cast Aluminum Alloy

Impeller

■

PBT of UL94V-0.

□

Steel

Bobbin

PBT of UL94V-0.

Lead Wire

■

Red(+)

■

Black(-)

□

Blue(PWM)

UL 1571 28#

□

Yellow(FG)

□

White(RD)

2 wires 100±10mm

Connector

No

Tube

No


Dimensions (Unit:mm)

35 mm Equipment Cooling Fan / 35 mm x 35 mm x 10 mm Equipment Motor / Cooler Fan

35 mm Equipment Cooling Fan / 35 mm x 35 mm x 10 mm Equipment Motor / Cooler Fan

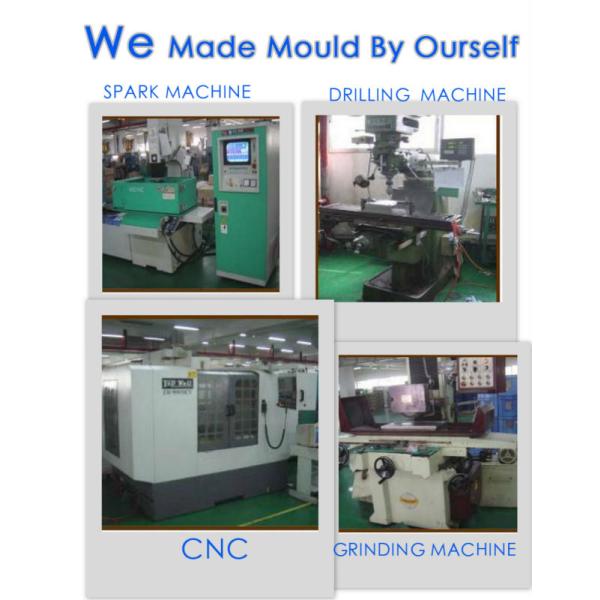

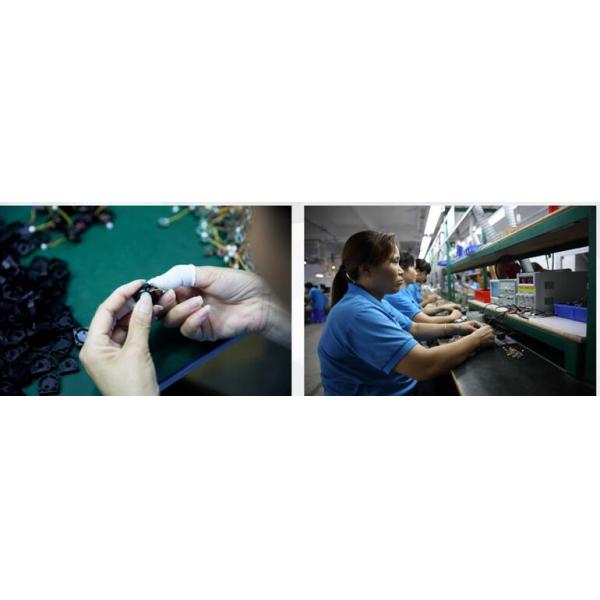

Workshop:

35 mm Equipment Cooling Fan / 35 mm x 35 mm x 10 mm Equipment Motor / Cooler Fan
