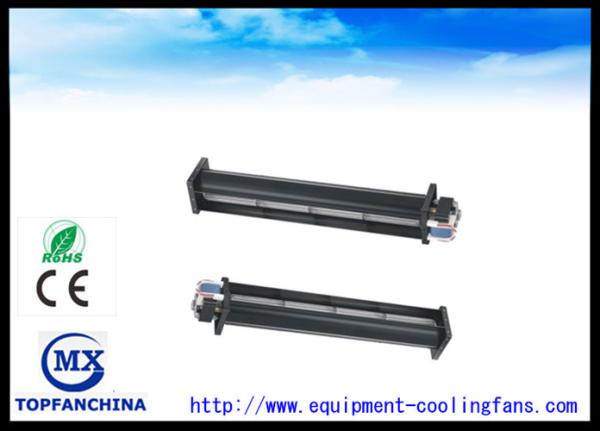

Metal Frame 220v 500mm Lenght Cross Flow Fans Industrial Equipment Radiator
Metal Frame 220v 500mm Lenght Cross Flow Fans Industrial Equipment Radiator
Metal Frame 220v 500mm Lenght Cross Flow Fans Industrial Equipment Radiator
Metal Frame 220v 500mm Lenght Cross Flow Fans Industrial Equipment Radiator
Specifications
Brand Name :
MX / OEM
Model Number :
MX50090CPM22
Certification :
CE / ROHS
Place of Origin :
Shen Zhen , China
MOQ :
100pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10000 + Pieces + One Week
Delivery Time :
7 - 15 Working Days
Packaging Details :
Carton Box
Bearing Type :
Sleeve Bearing $ Ball Bearing
Rated Voltage :
110V, 220V
Rated Current :
0 . 08A
Speed :
2660RPM
Material :
Metal Frame, Plastic impeller
Weight :
580g
Description

Metal Frame 220v 500mm Lenght Cross Flow Fans Industrial Equipment Radiator

Application:

Cross flow fan / crossflow fan / tangential fan is used extensively in the HVAC industry.
The popularity of the crossflow fan in the HVAC industry comes from its compactness, shape, quiet
operation, and ability to provide high pressure coefficient.
It is usually been used as fireplace fan, heater fan, oven fan, air purifier fan, refrigerator fan and so on.
Heating:electric fireplace, bath heater,electric heater,warm air blower, floor heating heater, oven,personal or process drying,etc
Cooling:refrigerator,freezer,aircondition fan unit,air curtain,wine cabinet,mini air cleaner, photo copyer, projector, sun bed, etc
Ventilation:conservatory ventilation,heat recovery,etc

Specification :

Model

MX50090CPM22

Rotor Dimension

50mm x 90mm

Rated Voltage

AC 220V - 240V

Voltage Range

AC 160V - 242V

Rated Current

0.08 ± 10%A

Power Consumption

9.5w ± 10%W

Speed

2660 ± 10%RPM

Max . Air flow

31.8 ± 10%CFM

Max . Static Pressure

0.8 mmAq

Noise Level

Weight

580g

Environmental Specification

Operating Temperature : - 10℃ ~ 55℃

Operating Humidity : - 20% ~ 80%RH

Description :

  • 220V 50mm x 90mm AC Cross Flow Fans AC FAN , used for cooling and ventilation .
  • Frame : Cast Iron , Painted Black
  • Blade : Aluminum Alloy
  • Stator & Rotor : Silicon steel
  • Magnet Wires : Copper 2 UEW
  • Bobbin : PA-66 UL 94 V-0
  • Bearing Type : Sleeve Bearing & Ball Bearing

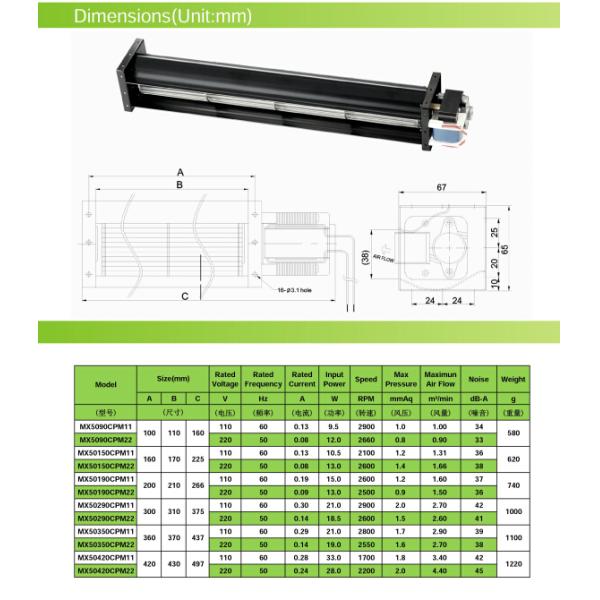

Dimensions (Unit:mm)

Metal Frame 220v 500mm Lenght Cross Flow Fans Industrial Equipment Radiator

Metal Frame 220v 500mm Lenght Cross Flow Fans Industrial Equipment Radiator
