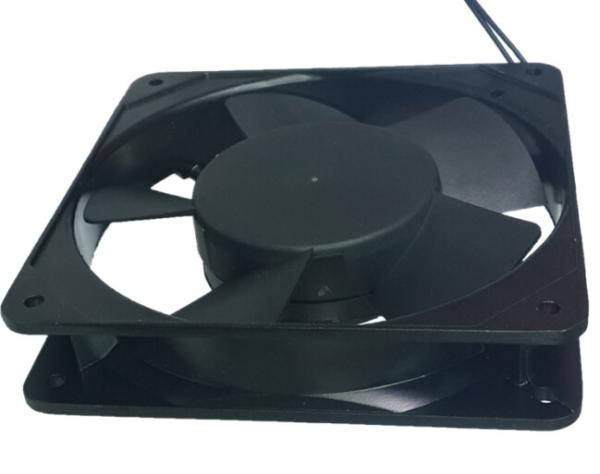

120mm Industrial Ventilation Fans 4.7 Inch AC 120v Cooling Fan
120mm Industrial Ventilation Fans 4.7 Inch AC 120v Cooling Fan
120mm Industrial Ventilation Fans 4.7 Inch AC 120v Cooling Fan
120mm Industrial Ventilation Fans 4.7 Inch AC 120v Cooling Fan
Specifications
Brand Name :
MX,ODM,OEM
Model Number :
MX12025ABH11
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton
Size :
120×120×25MM
Voltage :
110V-120V , 220V-240V, 380V-400v
Frequency :
50/60hz
Power Consumption :
18/16W
Air Flow :
48/59CFM
Speed :
150g
Description

120mm Industrial Ventilation Fans 4.7 Inch AC 120v Cooling Fan

120×120×25MM AC fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


Description:

  • 120V 220V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:metal
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing

Specification:

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow Max Static Pressure Noise Level Weight
Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX12025ABH11 B.S 110/120 50/60 0.25/0.21 20/16 2100/3000 75/110 1.68/2.0 0.12/0.14 32/39 338
MX12025ABH22 B.S 220/240 50/60 0.09/0.07 16/14 2200/2500 76/100 1.70/2.15 0.12/0.14 33/40

338

Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃

Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃

Humidity:20%~95%RH

03

Life

50000H

Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0

Dimension:

120mm Industrial Ventilation Fans 4.7 Inch AC 120v Cooling Fan

120mm Industrial Ventilation Fans 4.7 Inch AC 120v Cooling Fan

Packaging & Shipping

Package: in cartons, sea worthy package.
Shipping: by Air, Courier, or Sea

Our Services

Sample Policy: Free Sample with Freight Collect
Sample Lead Time: 2-5 Days
MOQ : 100PCS
Order Lead Time: 5-20 Days
Other: OEM & ODM available
