25mm x 25mm x 08mm Mini Size Portable Blower Fan Motor Direct Current Easily Operated
25mm x 25mm x 08mm Mini Size Portable Blower Fan Motor Direct Current Easily Operated
25mm x 25mm x 08mm Mini Size Portable Blower Fan Motor Direct Current Easily Operated
25mm x 25mm x 08mm Mini Size Portable Blower Fan Motor Direct Current Easily Operated
Specifications
Brand Name :
MX
Model Number :
MX2508GNH5
Certification :
CE UL ROHS
Place of Origin :
GUANGDONG / CHINA
MOQ :
2000pcs
Price :
USD + 1 / 5 + Piece
Payment Terms :
Western Union, T/T , PayPal
Supply Ability :
10000 + Piece + A Day
Delivery Time :
7 - 10 Working Days
Packaging Details :
Carton Box
Color :
Black
Frame and Imoeller :
P . B . T
Bearing Type :
Axially - Grooved Bearing
Voltage :
3 . 3V / 5 . 0V
Expected Life :
20000 hours
Speed :
7000 / 9000 RPM
Air Flow :
0 . 38 / 0 . 57CFM
Noise Level :
25 / 35dBA
Rated Current :
40 / 60 mA More or Less 15%
Weight :
3G
Description

25mm x 25mm x 08mm Mini Size Portable Blower Fan Motor Direct Current Easily Operated

25mm x 25mm x 08mm Mini Size Portable Blower Fan Motor Direct Current Easily Operated

(Specification and Features)

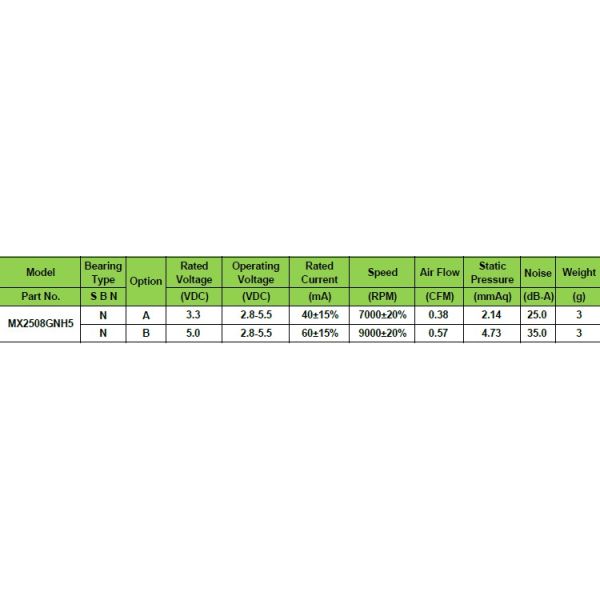

SPECIFICATION 　 　
Model Number MX2508GNH5
Product Name Micro Blower
Bearing Axially-grooved Bearing
Rated Voltage (VDC) 3 .3V 5V
Operating Voltage (VDC) 2.8 ~ 5.5
Rated Current (mA) 40 ± 15% 60 ± 15%
Rotation Speed (RPM) 7000 ± 20% 9000 ± 20%
Air Flow (CFM) 0 . 38 0 . 57
Static Pressure (mmAq) 2.14% 4.73
Noise (dB(A)) 25 -35
Insulation Resistance 10MEGA. Ω Min. at 500VDC (between frame and (+) terminal)
Dielectric Strength 5mA Max. at 500VAC , 60Hz , One Minute (between frame and (+) terminal)
Life Expectancy 20,000 hours at 45℃
IP Rating IP57

25mm x 25mm x 08mm Mini Size Portable Blower Fan Motor Direct Current Easily Operated

(Main Parts and Materials List) 　
Name of Part Integrated Hall IC
Lead wire UL1571 AWG#32
Yoke S.P.C.C.
Fan Blade P.B.T. (UL94V-0)
Shaft SUS 420F
Magnet NdFeB
Axial-grooved Bearing Cu-based composite powder
PCB FR4
Coil PSW thermosetting copper wire
Base Plate P.B.T. (UL94V-0)
Frame

P.B.T. (UL94V-0)

(Reliability Test Report) 　
(Test Item) Test result
(Temperature test) PASS
(Burn-In test) PASS
(Drop test) PASS
(Working Temperature / Humidity cycle test) PASS
(Stock Temperature / Humidity cycle test) PASS
(On / Off cycle test) PASS
(MTTF test) PASS

Competitive Advantage:

* Qualified, cost effective and easily operated

* Small in shape, have compact structure

* UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

25mm x 25mm x 08mm Mini Size Portable Blower Fan Motor Direct Current Easily Operated

25mm x 25mm x 08mm Mini Size Portable Blower Fan Motor Direct Current Easily Operated

25mm x 25mm x 08mm Mini Size Portable Blower Fan Motor Direct Current Easily Operated
