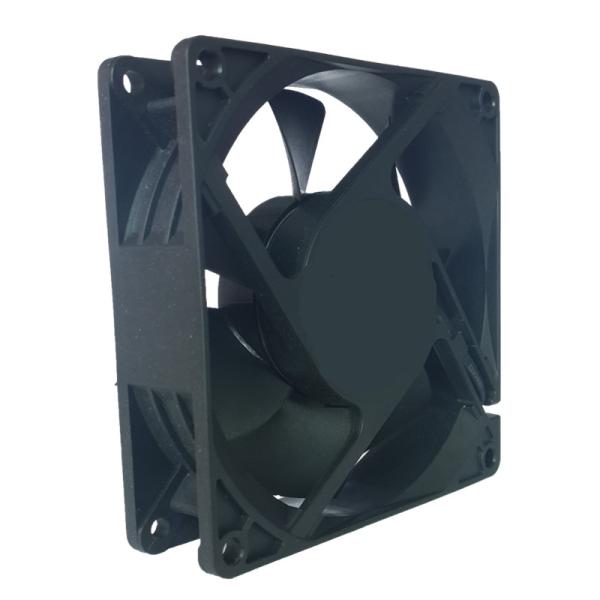

Electronic Equipment Cooling Fans AC Industrial Exhaust Fan 3.6 Inch AC Motor

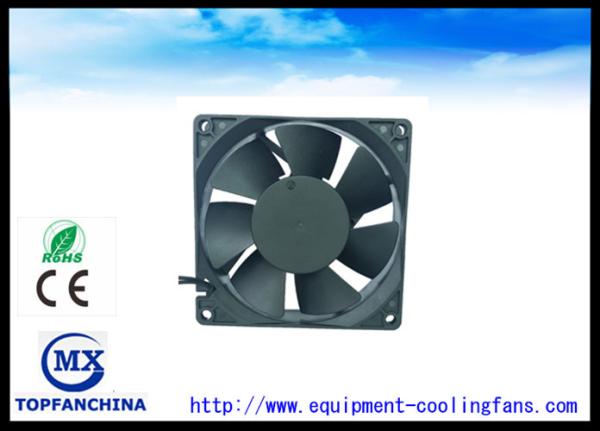

Electronic Equipment Cooling Fans AC Industrial Exhaust Fan 3.6 Inch AC Motor
Electronic Equipment Cooling Fans AC Industrial Exhaust Fan 3.6 Inch AC Motor
Electronic Equipment Cooling Fans AC Industrial Exhaust Fan 3.6 Inch AC Motor
Specifications
Brand Name :
MX,ODM,OEM
Model Number :
MX9225ABM11
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton
Product Name :
92mm × 92mm × 25mm Industrial Ventilation Fans
Voltage :
110V -120V, 220V - 240V
Frequency :
50/60hz
Power Consumption :
12/15W
Air Flow :
27/34CFM
Bearing Type :
Ball Bearing , Sleeve Bearing
Frame :
Metal
Impeller :
Plastic
Description

Electronic Equipment Cooling Fans AC Industrial Exhaust Fan 3.6 Inch AC Motor

92*92*25mm AC fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 110/120V 220/240 V AC FAN,used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:metal
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Ball Bearing Or Sleeve Bearing

Specification:

Model Bearing Type Rated Voltage Freq. Current Amp Input Power Speed Max Air Flow Max Static Pressure Noise Level Weight
Part No. S B Y VDC Hz Amp Watt RPM CFM m3/min Inch-H2O dB-A g
MX9225ABM11 B.S 110/120 50/60 0.14/0.12 12 2300/2800 27/34 0.76/0.96 0.16/0.20 29/31 250
MX9225ABM22 B.S 220/240 50/60 0.09/0.05 15 2300/2800 27/34 0.76/0.96 0.16/0.20 29/31 250

Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃

Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃

Humidity:20%~95%RH

03

Life

50000H

Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0

Dimensions:

Electronic Equipment Cooling Fans AC Industrial Exhaust Fan 3.6 Inch AC Motor

Electronic Equipment Cooling Fans AC Industrial Exhaust Fan 3.6 Inch AC Motor

Electronic Equipment Cooling Fans AC Industrial Exhaust Fan 3.6 Inch AC Motor
