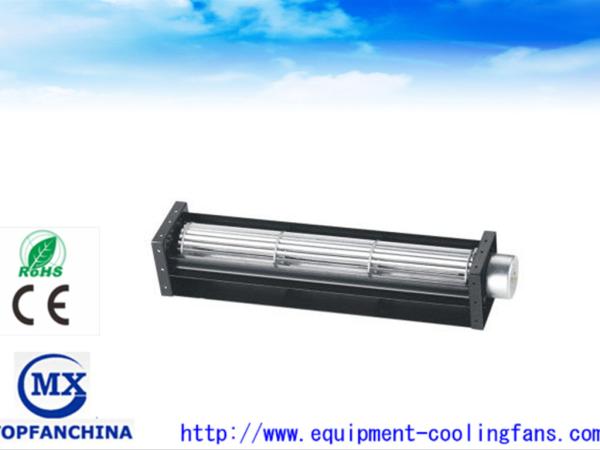

Small 2900rpm Sleeve Bearing Crossflow Fans DC Ventilation Fan 40 * 240mm
Small 2900rpm Sleeve Bearing Crossflow Fans DC Ventilation Fan 40 * 240mm
Small 2900rpm Sleeve Bearing Crossflow Fans DC Ventilation Fan 40 * 240mm
Small 2900rpm Sleeve Bearing Crossflow Fans DC Ventilation Fan 40 * 240mm
Specifications
Brand Name :
MX
Model Number :
MX40240CFM2
Certification :
CE / ROHS
Place of Origin :
Shen Zhen , China
MOQ :
100pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10000 + Pieces + One Week
Delivery Time :
7 - 15 Working Days
Packaging Details :
Carton Box
Bearing Type :
Sleeve Bearing $ Ball Bearing
Rated Voltage :
12V / 24V
Rated Current :
0 . 25A / 0 . 35A
Speed :
2500RPM
Air Flow :
74CFM
Noise :
41dBA
Max Pressure :
2 . 5mmAq
Weight :
400g
Description

Small Ventilation Cross Flow Fans DC 12V / 24V 2900rpm Cross Flow Fan 40 * 240mm

40 * 240mm DC cross flow fan , low noise and long life expectancy , are widely used in network communications , as well as industrial production equipment , medical equipment , home appliances , etc .

Specification :

Model

LRD40240A24

Rotor Dimension

40 * 240mm

Rated Voltage

DC 24V

Voltage Range

DC 14V - 27.6V

Rated Current

0 . 35 ± 10%A

Power Consumption

8 . 4w ± 10%W

Speed

2500 ± 10%RPM

Max . Air flow

74 ± 10%CFM

Max . Static Pressure

2 . 5 mmAq

Noise Level

41 dB A

Weight

400g

Environmental Specification

Operating Temperature : - 10℃ ~ 55℃

Operating Humidity : - 20% ~ 80%RH

Description :

  • 40 * 240mm DC FAN , used for cooling and ventilation .
  • Frame : Aluminum ADC-12 , Painted Black
  • Blade : PBT + 15%GF
  • Stator & Rotor : Silicon steel
  • Magnet Wires : Copper 2 UEW
  • Bobbin : PA-66 UL 94 V-0
  • Bearing Type : Sleeve Bearing & Ball Bearing

Notes : If you want to know more information about cross flow fan ( Dc or Ac ), please contact with Vivian Dai , thank you very much .

Shenzhen Topfan Technology Development Co . , Ltd is a high - tech enterprises of professional manufacture and researcher on dc brushless fans and ac fans . Is the professional cooling fan manufacturer in the field with the most professional and largest scale intergrating research and development , manufacturing and sales . The products , including brushless fans , cross flow fans, blower fans , centrifugal fans , dc brushless motor , shaded pole , AC and EC fans are widely used in the computer information technology , network communications , as well as industrial production equipment , medical equipment , home appliances , etc .
