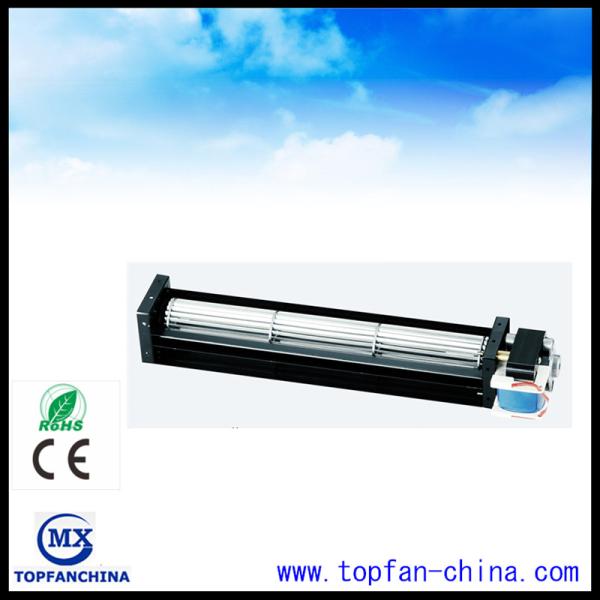

30mm x 90mm Sleeve Bearing DC cross flow fans PA-66 UL 94 V-0 Bobbin
30mm x 90mm Sleeve Bearing DC cross flow fans PA-66 UL 94 V-0 Bobbin
30mm x 90mm Sleeve Bearing DC cross flow fans PA-66 UL 94 V-0 Bobbin
30mm x 90mm Sleeve Bearing DC cross flow fans PA-66 UL 94 V-0 Bobbin
Specifications
Brand Name :
MX
Model Number :
MX30090CFM11
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton box
Certification :
CE
Product Name :
Rotor Dimension
Voltage :
Voltage Range
Frequency :
Rated Current
Power Consumption :
Max. Air flow
Max. Static Pressure :
Noise Level
Description

30*90mm DC cross flow fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 24V DC FAN,used for cooling and ventilation.
  • Frame:Aluminum ADC-12,Painted Black
  • Blade:PBT+15%GF
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 2 UEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Sleeve Bearing

Specification

Model

MX30090CFM11

Rotor Dimension

30*90mm

Rated Voltage

DC 24V

Voltage Range

DC 21.8V-26.4V

Rated Current

0.16A±10% A

Power Consumption

3.84w±10%W

Speed

3200±10%RPM

Max. Air flow

22±10%CFM

Max. Static Pressure

0.075Inch-H2O

Noise Level

38 dB(A)

Weight

180g

Environmental Specification

Operating Temperature:-30℃~70℃

Operating Humidity:10%~85%RH
