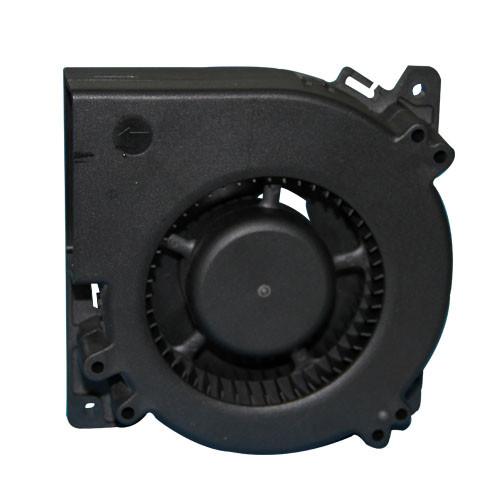

High Speed Plastic Waterproof Centrifugal Blower Fan 120mm 24V DC 4.7 inch
High Speed Plastic Waterproof Centrifugal Blower Fan 120mm 24V DC 4.7 inch
High Speed Plastic Waterproof Centrifugal Blower Fan 120mm 24V DC 4.7 inch
High Speed Plastic Waterproof Centrifugal Blower Fan 120mm 24V DC 4.7 inch
High Speed Plastic Waterproof Centrifugal Blower Fan 120mm 24V DC 4.7 inch
High Speed Plastic Waterproof Centrifugal Blower Fan 120mm 24V DC 4.7 inch
Specifications
Brand Name :
MX
Model Number :
MX12032GB(S)H2
Certification :
CE/ROSH/UL
Place of Origin :
China
MOQ :
200pcs
Price :
US$2.00/PCS-US5.00/PCS
Supply Ability :
20,000/DAY
Packaging Details :
CARTON BOX
color :
Black
Bearing type :
Dual Ball Bearing
Rated Voltage :
14.0-27.6V
Leadwire :
Red Wire Positive(+),Black Wire Negative(-)
Current :
0.40-2.00A
Speed :
2500/3500rpm
Air Flow :
30.79/41.20CFM
Frame and Impeller :
Plastic (94V-0),PBT
Description

Centrifugal Blower Fan 24V DC 4.7inch 120mm , High Speed Plastic Waterproof Cooling Motor Fan


Applications

  • Ventilation Equipment & System
  • Heating Equipment & System
  • Air Conditioner
  • Refrigeration equipment
  • MDBS(Mobile Data Base Station)
  • Telecom power supply station


Description:

● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.


A: Specifications:

ModelBearing TypeRated VoltageOperating VoltageInput CurrentInput PowerSpeedMax Air Flow Max Static PressureNoiseWeight
Part No.B.SVDCVDCAmpWattRPMCFMm3/minInch-H2OpadB-Ag
MX12032GB(S)H1B.S127.0-13.82.0024.00350041.201.171.85461.9957.00278
MX12032GB(S)M1B.S127.0-13.81.0012.00300035.441.001.17291.9451.00278
MX12032GB(S)L1B.S127.0-13.80.708.40250030.790.870.83207.9045.00278
MX12032GB(S)H2B.S2414.0-27.61.0024.00350041.201.171.85461.9957.00278
MX12032GB(S)M2B.S2414.0-27.60.7016.80300035.441.001.17291.9451.00278
MX12032GB(S)L2B.S2414.0-27.60.409.60250030.790.870.83207.9045.00278

B: (Main Materials, Parts Specification):

Bearing

■(Dual Ball Bearing)

□

(Sleeve Bearing)

Frame

■

PBT of UL94V-0.

□

Die-cast Aluminum Alloy

Impeller

■

PBT of UL94V-0.

□

Steel

Bobbin

PBT of UL94V-0.

Lead Wire

■

Red(+)

■

Black(-)

□

Blue(PWM)

UL 1571 28#

□

Yellow(FG)

□

White(RD)

2 wires 100±10mm

Connector

No

Tube

No



C: Electrical Specification:

ITEM

Specification. Condition

Locked Rotor Protection

□

Safety Condition


■

Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec

Polarity Protection

■

Open circuit when Vcc&GND are exchanged

□

Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged

Insulation Resistance

10MΩ Between unshielded wire and frame at 500VDC/min

Dielectric Strength

5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min

Special Function

□

Soft Start
5s (0 to Max speed)

□

Current Limiter



Dimensions (Unit:mm)
High Speed Plastic Waterproof Centrifugal Blower Fan 120mm 24V DC 4.7 inchHigh Speed Plastic Waterproof Centrifugal Blower Fan 120mm 24V DC 4.7 inch
