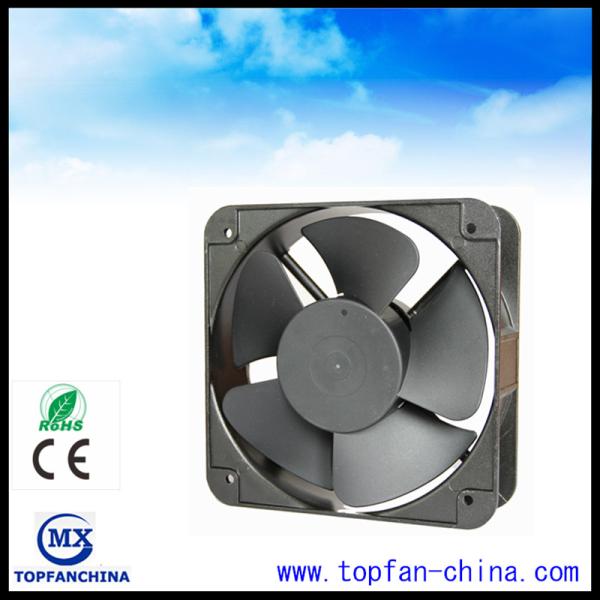

Black Square High Air Flow Electronic Equipment Cooling Fans For Home Appliances
Black Square High Air Flow Electronic Equipment Cooling Fans For Home Appliances
Black Square High Air Flow Electronic Equipment Cooling Fans For Home Appliances
Black Square High Air Flow Electronic Equipment Cooling Fans For Home Appliances
Specifications
Brand Name :
TOPFAN/ODM/OEM
Model Number :
MX20060ABH22
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
US$10 -14
Payment Terms :
T/T, Western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Product Name :
AC Cooling Fan
Voltage :
110V / 220V
Frame :
Aluminum
Impeller :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing
Motor :
Impedance Protected
Size :
200x200x60mm(7.9"x7.9"x2.4")
Description

220V Equipment Cooling Fans / 200x200x60mm AC Ventilation Fans , AC Industrial Fans

220V 200x200x60mm Equipment Cooling Fan, high air flow and long life expectancy , are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 220V AC FAN,used for cooling and ventilation.
  • Frame:Aluminum ADC-12,Painted Black
  • Impeller:Plastic With 5 Blades
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Ball Bearing

Specification

Model

MX20060ABH22

Outline Dimension

200x200x60mm

Rated Voltage

AC 220V

Voltage Range

AC 200V~240V

Frequency

50/60Hz

Rated Current

0.30A±10%

Power Consumption

60W±10%

Speed

2500/2800RPM±10%

Max. Air flow

420/490CFM±10%

Max. Static Pressure

0.60/0.72Inch-H2O

Noise Level

60/65dB(A)

Weight

1600g

Dielectric Strength

1800V/0.5mA/3s

Temperature Test of Run

t=<70K

Locked Rotor Protection

t=<130K

Environmental Specification

Operating Temperature:-20℃~85℃

Operating Humidity:20%~85%RH

Storage Temperature:-30℃~140℃

Storage Humidity:20%~95%RH
