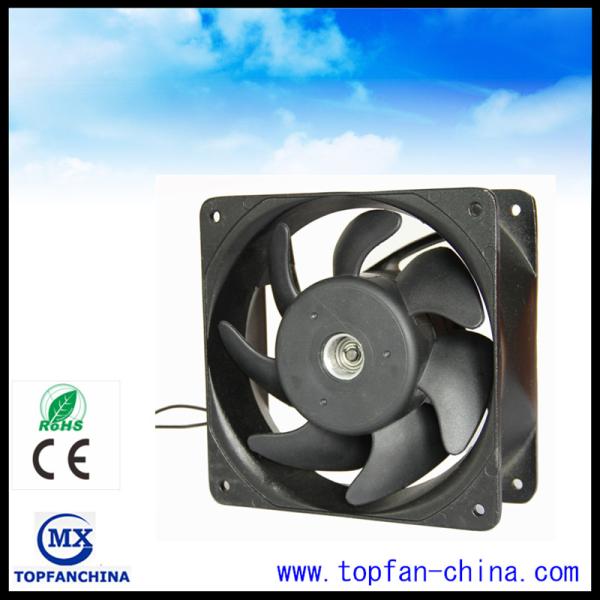

Industrial Plastic Impeller 220 Volt AC Ventilation Fans With Aluminum Frame
Industrial Plastic Impeller 220 Volt AC Ventilation Fans With Aluminum Frame
Industrial Plastic Impeller 220 Volt AC Ventilation Fans With Aluminum Frame
Industrial Plastic Impeller 220 Volt AC Ventilation Fans With Aluminum Frame
Specifications
Brand Name :
MX
Model Number :
MX16062ABH22
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
US$10 -14
Payment Terms :
T/T, Western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Product Name :
AC Cooling Fan
Voltage :
110V / 220V
Frame :
Aluminum
Impeller :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing
Motor :
Impedance Protected
Size :
160x160x62mm(6.3"x6.3"x2.4")
Description

220V Equipment Cooling Fans / 160x160x621mm AC Ventilation Fans , AC Industrial Fans

220V 160x160x62mm Equipment Cooling Fan, high air flow and long life expectancy , are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 220V AC FAN,used for cooling and ventilation.
  • Frame:Aluminum ADC-12,Painted Black
  • Impeller:Plastic With 7 Blades
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Ball Bearing

Specification

Model

MX16062ABH22

Outline Dimension

160x160x62mm

Rated Voltage

AC 220V

Voltage Range

AC 200V~240V

Frequency

50/60Hz

Rated Current

0.18/0.19A±10%

Power Consumption

35/40W±10%

Speed

2700/3000RPM±10%

Max. Air flow

255/295CFM±10%

Max. Static Pressure

0.60/0.80Inch-H2O

Noise Level

54/59dB(A)

Weight

1200g

Dielectric Strength

1800V/0.5mA/3s

Temperature Test of Run

t=<70K

Locked Rotor Protection

t=<130K

Environmental Specification

Operating Temperature:-20℃~85℃

Operating Humidity:20%~85%RH

Storage Temperature:-30℃~140℃

Storage Humidity:20%~95%RH
