12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition
12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition
12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition
12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition
12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition
12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition
12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition
12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition
12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition
12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition
Specifications
Brand Name :
MX
Model Number :
MX40190CFM11
Certification :
CE,ROSH,UL
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton
Voltage :
12v 24v
Current :
0.15/0.30
Max. Static Pressure :
2.5mmAq
Air Flow :
49CFM
Speed :
2500RPM
Weight :
300g
Description

Cross Flow Fan 12V 24V 40*190mm / Air Condition Cross Flow Fan / Tangential Fan 90mm 150mm 190mm 240mm 250mm 350mm

40*190mm DC cross flow fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 12V 24V DC FAN,used for cooling and ventilation.
  • Frame:Aluminum ADC-12,Painted Black
  • Blade:PBT+15%GF
  • Stator& Rotor:Silicon steel
  • Magnet Wires:Copper 2 UEW
  • Bobbin:PA-66 UL 94 V-0
  • Bearing Type:Sleeve Bearing

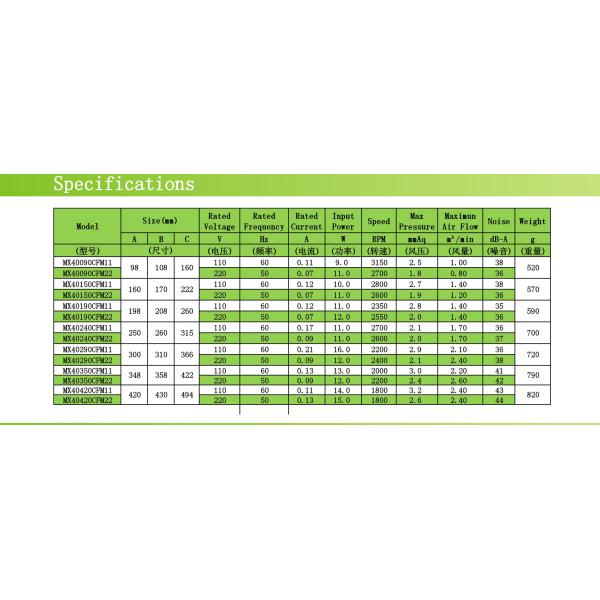

Specification:

12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition

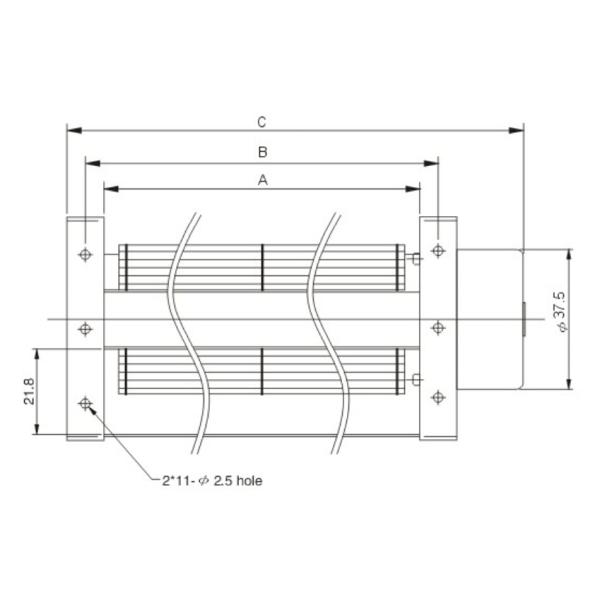

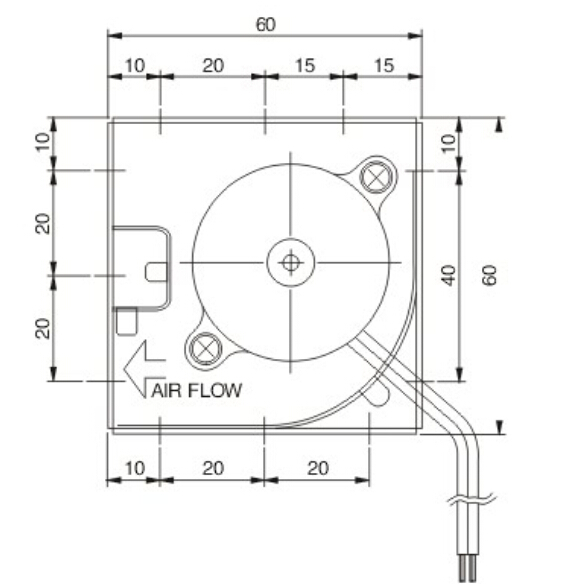

Dimension:

12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition12V 24V 90mm 150mm Tangential Sleeve Bearing Cross Flow Fan for Air Condition
