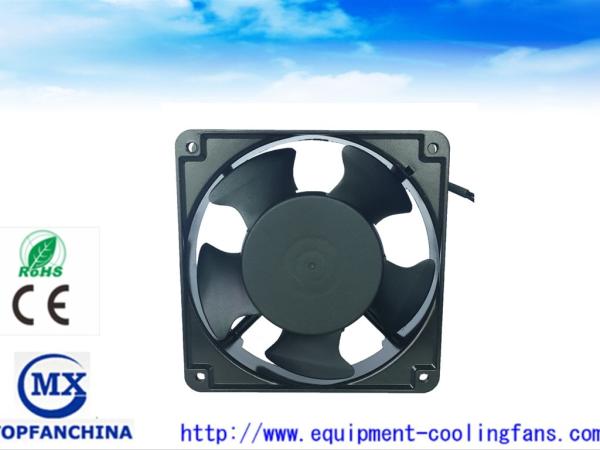

Low Noise 135mm AC Brushless Fan Fridge Cooling Fan With Copper 1 PEW
Low Noise 135mm AC Brushless Fan Fridge Cooling Fan With Copper 1 PEW
Low Noise 135mm AC Brushless Fan Fridge Cooling Fan With Copper 1 PEW
Low Noise 135mm AC Brushless Fan Fridge Cooling Fan With Copper 1 PEW
Specifications
Brand Name :
MX
Model Number :
MX13538ABH22
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
US$3 - 5
Payment Terms :
T/T, Western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Product Name :
AC Cooling Fan
Voltage :
110V / 220V
Frame :
Aluminum
Impeller :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing
Motor :
Impedance Protected
Size :
135x135x38mm(53"x5.3"x1.5")
Description

220V AC Ventilation Fans / 135x135x38mm fridge Fan , AC Brushless Fan​

220V 135x135x38mm AC Cooling Fan, low noise and long life expectancy , are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 220V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Impeller: Plastic With 7 Blades
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing

Specification

Model

MX13538ABH22

Outline Dimension

135x135x38mm

Rated Voltage

AC 220V

Voltage Range

AC 200V~240V

Frequency

50/60Hz

Rated Current

0.13/0.15A±10%

Power Consumption

29/27W±10%

Speed

2700/3100RPM±10%

Max. Air flow

176/209CFM±10%

Max. Static Pressure

0.37/0.42Inch-H2O

Noise Level

46/53dB(A)

Weight

805g

Dielectric Strength

1800V/0.5mA/3s

Temperature Test of Run

t=<70K

Locked Rotor Protection

t=<130K

Environmental Specification

Operating Temperature:-20℃~85℃

Operating Humidity:20%~85%RH

Storage Temperature:-30℃~140℃

Storage Humidity:20%~95%RH
