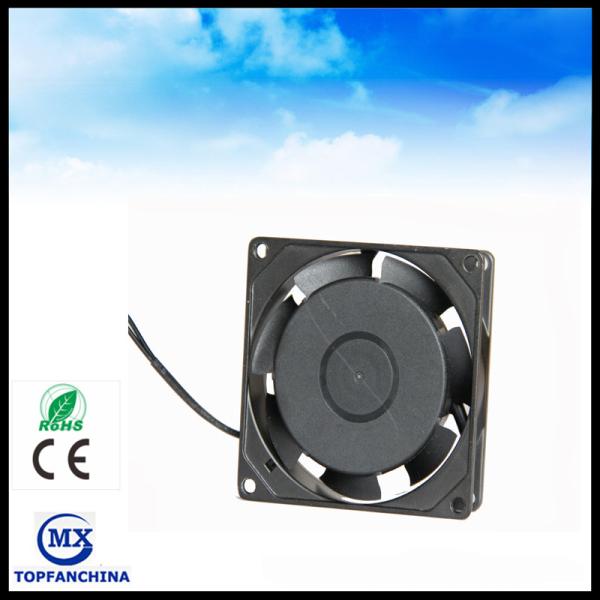

Customized Small 7 Blade AC Brushless Fan Car Ventilation Fans PA-66 UL 94 V-0 Bobbin
Customized Small 7 Blade AC Brushless Fan Car Ventilation Fans PA-66 UL 94 V-0 Bobbin
Customized Small 7 Blade AC Brushless Fan Car Ventilation Fans PA-66 UL 94 V-0 Bobbin
Customized Small 7 Blade AC Brushless Fan Car Ventilation Fans PA-66 UL 94 V-0 Bobbin
Specifications
Brand Name :
TOPFAN/ODM/OEM
Model Number :
MX8025ABH11
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
US$3 - 5
Payment Terms :
T/T, Western Union
Supply Ability :
200,000pcs per month
Delivery Time :
7-15 working days after received your payment
Packaging Details :
carton
Product Name :
AC Industral Fans
Voltage :
110V / 220V / 380V
Frame :
Aluminum
Impeller :
Plastic
Bearing type :
Ball Bearing
Motor :
Impedance Protected
Size :
80 X 80 X 25mm(2.4*2.4*1.2Inch)
Description

110V AC Burshless Fans / 80*80*25mm AC Cooling Fans , AC Fridge Fans

110V AC Brushless Fan 80*80*25mm, high air flow and quiet , are widely used in industrial ventilation, as well as industrial production equipment, home appliances, medical equipment etc.

Description:

  • 110V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Impeller: Plastic With 7 Blades
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing

Specification

Model

MX8025ABH11

Outline Dimension

80*80*25mm

Rated Voltage

AC 110V

Voltage Range

AC 100-120V

Frequency

50/60Hz

Rated Current

0.14/0.12A±10%

Power Consumption

11/8W±10%

Speed

2400/2900RPM±10%

Max. Air flow

2229CFM±10%

Max. Static Pressure

0.08/0.13Inch-H2O

Noise Level

24/29dB(A)

Weight

230g

Dielectric Strength

1800V/0.5mA/3s

Temperature Test of Run

t=<70K

Locked Rotor Protection

t=<130K

Environmental Specification

Operating Temperature:-20℃~70℃

Operating Humidity:20%~85%RH
