Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V
Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V
Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V
Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V
Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V
Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V
Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V
Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V
Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V
Ball Bearing Plastic Impeller Industrial Ventilation Fans Air Cleaner Fans 110V
Specifications
Brand Name :
TOPFAN/ODM/OEM
Model Number :
MX9225ABH11
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
US$3 - 5
Payment Terms :
T/T, Western Union
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
carton
Product Name :
AC Cooling Fan
Voltage :
110V / 220V
Frame :
Aluminum
Impeller :
Plastic
Bearing type :
Ball Bearing/Sleeve bearing
Motor :
Impedance Protected
Size :
92*92*25mm(3.2*3.2*1Inch)
Description

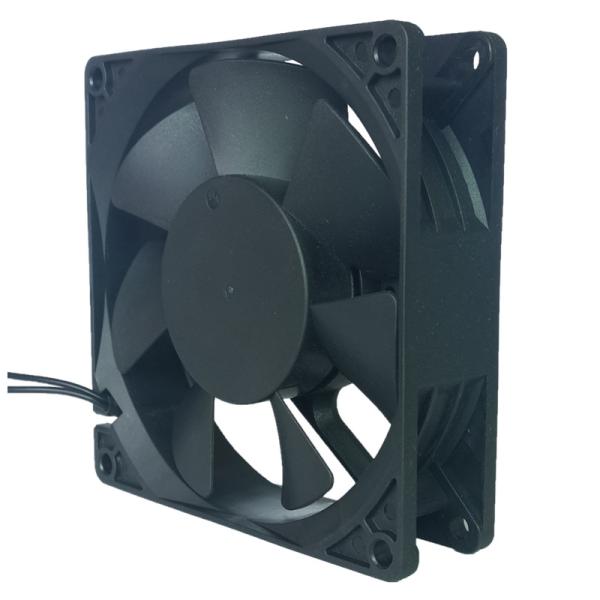

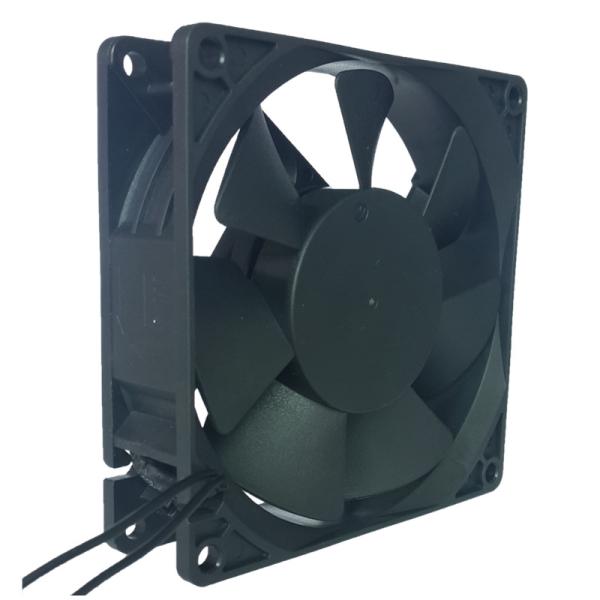

110V Air Cleaner Fans / 92x92x25mm fridge Fan , AC Fridge Cooling Fan

92x92x25mm AC 110V Air Cleaner Fans , long life expectancy and low noise , are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

  • 110V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12,Painted Black
  • Impeller: Plastic With 7 Blades
  • Stator& Rotor: Silicon steel
  • Magnet Wires:Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing

Specification

Model

MX9225ABH11

Outline Dimension

92x92x25mm

Rated Voltage

AC 110V

Voltage Range

AC 100V~140V

Frequency

50/60Hz

Rated Current

0.10/0.08A±10%

Power Consumption

15/10W±10%

Speed

2400/2700RPM±10%

Max. Air flow

43/47CFM±10%

Max. Static Pressure

0.15/0.20Inch-H2O

Noise Level

37/41dB(A)

Weight

350g

Dielectric Strength

1800V/0.5mA/3s

Temperature Test of Run

t=<70K

Locked Rotor Protection

t=<130K

Environmental Specification

Operating Temperature:-20℃~85℃

Operating Humidity:20%~85%RH

Storage Temperature:-30℃~140℃

Storage Humidity:20%~95%RH
