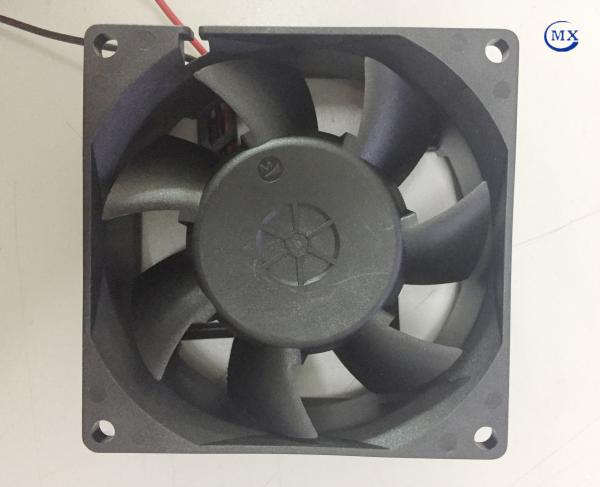

80 X 80 X 32 Mm 12V dc axial Equipment Cooling Fans , conventional fan with dual ball bearing
80 X 80 X 32 Mm 12V dc axial Equipment Cooling Fans , conventional fan with dual ball bearing
80 X 80 X 32 Mm 12V dc axial Equipment Cooling Fans , conventional fan with dual ball bearing
80 X 80 X 32 Mm 12V dc axial Equipment Cooling Fans , conventional fan with dual ball bearing
80 X 80 X 32 Mm 12V dc axial Equipment Cooling Fans , conventional fan with dual ball bearing
80 X 80 X 32 Mm 12V dc axial Equipment Cooling Fans , conventional fan with dual ball bearing
Specifications
Brand Name :
MX
Model Number :
MX8032ABH1
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
USD 2 - USD 6 or Negotiable
Payment Terms :
T / T
Supply Ability :
40 , 000pcs per month
Delivery Time :
7 - 10 working days after received payment
Packaging Details :
Carton Box or Negotiable
Part Name :
MX8032 Series
Voltage :
12V ( Customizable )
Power Consumption :
10.8 W ( Customizable )
Air Flow :
67.76 CFM ( Customizabl e)
Speed :
5550 RPM ( Customizable )
Bearing Type :
Ball Bearing
Description

80 X 80 X 32 mm 12V dc axial conventional fan Factory manufacturing with dual ball bearing applies in electronic equipment cooling

Specification :

Frame and Impeller : Plastic ( 94 V - 0 ) , PBT

Bearing Type : Sleeve bearing & Ball bearing

Function Range : FG RD PWM IP58 IP68

Leadwire : Red Wire Positive ( + ) , Black Wire Negative ( - )

Operating Voltage : 12V 24V 48V

Tempetature Range : – 20 ℃ to + 70 ℃

Motor : Impedance Protected and Reverse Polarity Protected

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No . B . S VDC VDC Amp Watt RPM CFM m3 / min Inch - H2O pa dB - A g
MX8032AB ( S ) U1 B . S 12 7 . 0 - 13 . 8 1 . 50 18 . 00 6500 79 . 70 2 . 26 0 . 84 208 . 39 51 . 00 95 . 00
MX8032AB ( S ) H1 B . S 12 7 . 0 - 13 . 8 0 . 90 10 . 80 5500 67 . 37 1 . 91 0 . 58 144 . 45 45 . 00 95 . 00
MX8032AB ( S ) M1 B . S 12 7 . 0 - 13 . 8 0 . 60 7 . 20 4500 54 . 99 1 . 56 0 . 41 101 . 89 40 . 00 95 . 00
MX8032AB ( S ) L1 B . S 12 7 . 0 - 13 . 8 0 . 40 4 . 80 3500 43 . 01 1 . 22 0 . 25 62 . 66 34 . 00 95 . 00
MX8032AB ( S ) U2 B . S 24 14 . 0 - 27 . 6 0 . 80 19 . 20 6500 79 . 70 2 . 26 0 . 84 208 . 39 51 . 00 95 . 00
MX8032AB ( S ) H2 B . S 24 14 . 0 - 27 . 6 0 . 50 12 . 00 5500 67 . 37 1 . 91 0 . 58 144 . 45 45 . 00 95 . 00
MX8032AB ( S ) M2 B . S 24 14 . 0 - 27 . 6 0 . 30 7 . 20 4500 54 . 99 1 . 56 0 . 41 101 . 89 40 . 00 95 . 00
MX8032AB ( S ) L2 B . S 24 14 . 0 - 27 . 6 0. 20 4 . 80 3500 43 . 01 1 . 22 0 . 25 62 . 66 34. 00 95 . 00
MX8032AB ( S )U4 B . S 48 28 . 0 - 56 . 0 0 . 50 24 . 00 6500 79 . 70 2 . 26 0 . 84 208 . 39 51 . 00 95 . 00
MX8032AB ( S )H4 B . S 48 28 . 0 - 56 . 0 0 . 30 14 . 40 5500 67 . 37 1 . 91 0 . 58 144 . 45 45 . 00 95 . 00
MX8032AB ( S )M4 B . S 48 28 . 0 - 56 . 0 0 . 20 9 . 60 4500 54 . 99 1 . 56 0 . 41 101 . 89 40 . 00 95 . 00
MX8032AB ( S )L4 B . S 48 28 . 0 - 56 . 0 0 . 10 4 . 80 3500 43 . 01 1 . 22 0 . 25 62 . 66 34 . 00 95 . 00

More photos

80 X 80 X 32 Mm 12V dc axial Equipment Cooling Fans , conventional fan with dual ball bearing

Application

Topfan’s fan products are utilized by all type of machines which required heat reduction systems ,

such as UPS systems ; Telecommunication equipments ; Ventilating systems ; LED Digital signage ; Disports / exercise equipments ; Medical instruments.

The products . including brushless fans . cross flow fans . blower fans . centrifugal fans . dc brushless motor . shades pole and RC ac fans etc. are being widely used in the information technology . network communications as well as industrial production equipment . medical equipment . and others .

Our advantage
1. If you want another rpm or voltage or special functionm Please contact with us directly .
2. The size , voltage, power & speed can be made according to your requirements !
3. Could be made with waterproof function
4. We're professional manufacturer of cooling fans for 11 years' experience
5. On time delivery
6. We offer 30000 hours warranty for sleeve bearing fans , 50000 hours warranty for ball bearing fans
7. We can also provide fans with longer use time.

Any more information,please feel free to contact Mona

Thank you

Skype : Mona Yang

QQ : 3146648329

Tel : 86 755 26070992
