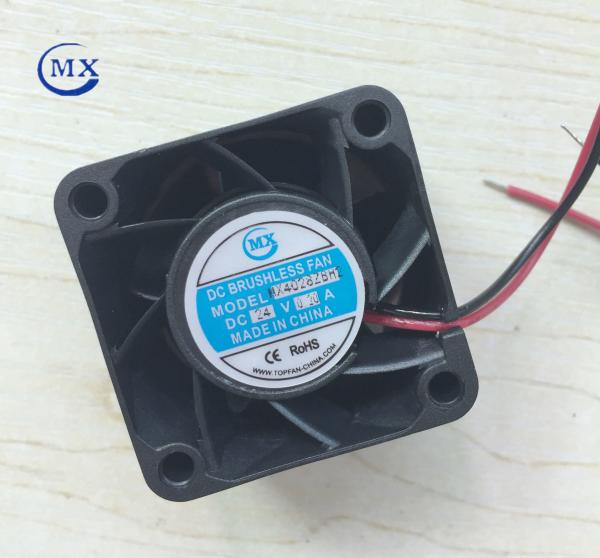

24V dc 40mm small cooling fan thickness of 28mm for home medical car air conditioning
24V dc 40mm small cooling fan thickness of 28mm for home medical car air conditioning
24V dc 40mm small cooling fan thickness of 28mm for home medical car air conditioning
24V dc 40mm small cooling fan thickness of 28mm for home medical car air conditioning
24V dc 40mm small cooling fan thickness of 28mm for home medical car air conditioning
24V dc 40mm small cooling fan thickness of 28mm for home medical car air conditioning
Specifications
Brand Name :
MX
Model Number :
MX4028ZBH1
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
100 pcs
Price :
USD 2 - USD 6 or Negotiable
Payment Terms :
T / T
Supply Ability :
40 , 000pcs per month
Delivery Time :
7 - 10 working days after received payment
Packaging Details :
Carton Box or Negotiable
Part Name :
MX4028 Series
Voltage :
24V ( Customizable )
Power Consumption :
8 . 10 W ( Customizable )
Air Flow :
21 . 54 CFM ( Customizabl e)
Speed :
15000 RPM ( Customizable )
Bearing Type :
Ball Bearing
Description

24V dc 40mm small cooling fan thickness of 28mm for home medical car air conditioning and other electronic equipment

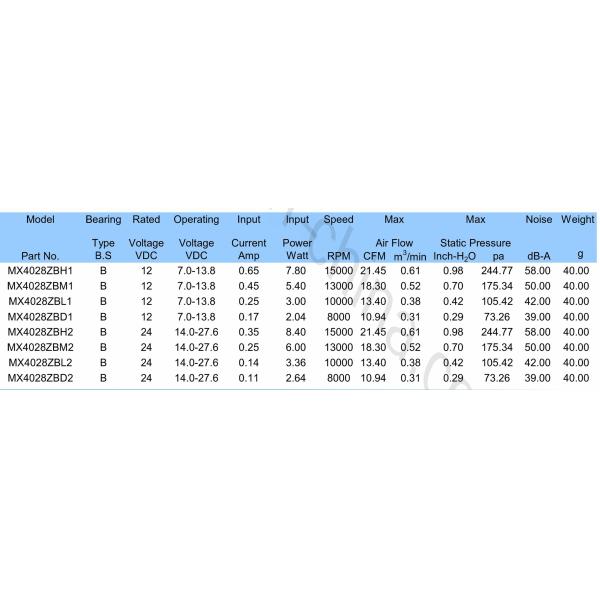

Specification :

Bearing Type Ball Bearing
Function IP55,IP58,IP66,IP68, Waterproof and dustproof
Frame and Impeller 94V-0 fireproof, metal frame and plastic impeller
Voltage DC 12V 24V 48V
Temperature range -20℃ to +70℃
Expected Life ＜80000 hours


24V dc 40mm small cooling fan thickness of 28mm for home medical car air conditioning

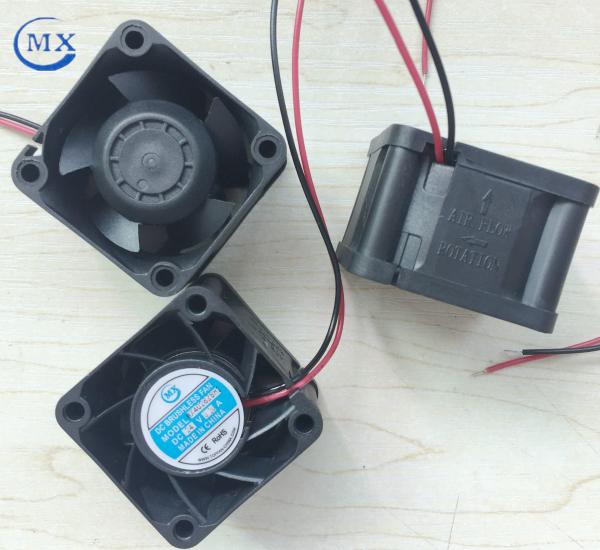

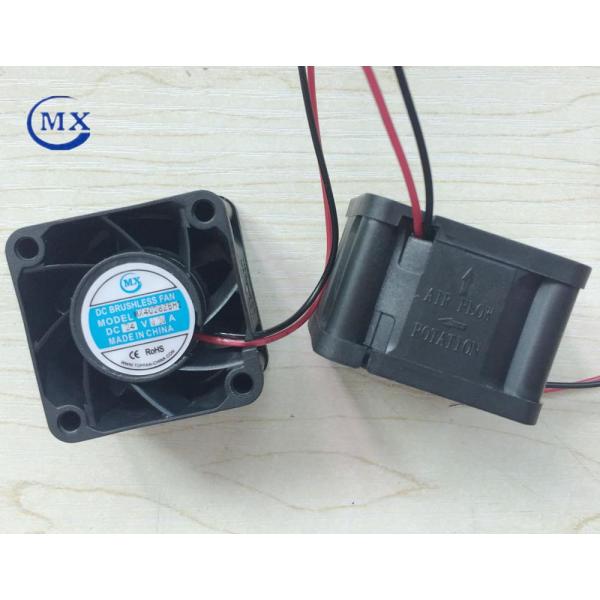

More photos

Advantage
1. If you want another rpm or voltage or special functionm Please contact with us directly .
2. The size , voltage, power & speed can be made according to your requirements !
3. Could be made with waterproof function
4. We're professional manufacturer of cooling fans for 11 years' experience
5. We offer 30000 hours warranty for sleeve bearing fans , 50000 hours warranty for ball bearing fans
6. We can also provide fans with longer use time.
7. On time delivery
24V dc 40mm small cooling fan thickness of 28mm for home medical car air conditioning
24V dc 40mm small cooling fan thickness of 28mm for home medical car air conditioning

Purchase process

Determine the fan parameters by mail exchange —— > Confirm the price of fan —— > Determine the price of the fan and the mode of transport —— > .

Provide your shipping information —— > Choose the payment way —— > confirm the fan ` s parameters again —— > I make a PI for you —— > you arrange payment —— >

I received the full payment —— > I arrange the production —— > delivery time:7 working days after receipt of full payment —— > samples are done and arrange shipping —— > The goods arrive at the destination —— > Keep in touch , track your order , and provide you with good after - sales service .

Cargo freight

>>You could choose the shipping way by yourself.

>>You could choose the freight forward company by yourself.

>> We could arrang the shipment according to your require.

>>If you have any requirements you could contact me soon.


Any more information,please feel free to contact Mona

Thank you

Skype : Mona

QQ : 3146648329

Tel : 86 755 26070992
