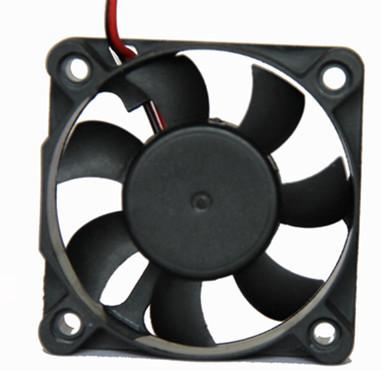

Exhaust instrument air cooler Equipment Cooling Fans , low speed PBT micro cooler fan
Exhaust instrument air cooler Equipment Cooling Fans , low speed PBT micro cooler fan
Exhaust instrument air cooler Equipment Cooling Fans , low speed PBT micro cooler fan
Exhaust instrument air cooler Equipment Cooling Fans , low speed PBT micro cooler fan
Specifications
Brand Name :
MX
Model Number :
MX5010ABH5
Certification :
CE / ROHS
Place of Origin :
China
MOQ :
100 pcs
Price :
USD 6 - USD 8 or Negotiable
Payment Terms :
T / T
Supply Ability :
40 , 000pcs per month
Delivery Time :
7 - 10 working days after received payment
Packaging Details :
Carton Box or Negotiable
Part Name :
MX5010 Series
Voltage :
5 V ( Customizable )
Power Consumption :
1 . 25 W ( Customizable )
Air Flow :
10 . 83 CFM ( Customizabl e)
Speed :
5500 RPM ( Customizable )
Bearing Type :
Ball Bearing
Description

Exhaust Fan dc instrument air cooler LOW speed PBT micro cooler fan DC motor fan with CE and ROHS 12V 50mm * 50mm * 10mm

Specifications

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No . B . S VDC VDC Amp Watt RPM CFM m3 / min Inch - H2O pa dB - A g
MX5010AB ( S / Y ) H5 B . S . Y 5 3 . 5 - 5 . 5 0 . 25 1 . 25 5500 10 . 83 0 . 31 0 . 13 33 . 15 34 20
MX5010AB ( S / Y ) M5 B . S . Y 5 3 . 5 - 5 . 5 0 . 21 1 . 05 5000 9 . 91 0 . 28 0 . 11 26 . 77 31 20
MX5010AB ( S / Y ) L5 B . S . Y 5 3 . 5 - 5 . 5 0 . 18 0 . 9 4500 9 . 26 0 . 26 0 . 1 23 . 93 28 20
MX5010AB ( S / Y ) D5 B . S . Y 5 3 . 5 - 5 . 5 0 . 15 0 . 75 4000 7 . 64 0 . 22 0 . 07 17 . 55 26 20
MX5010AB ( S / Y ) U1 B . S . Y 12 7 . 0 - 13 . 8 0 . 16 1 . 92 6000 12 . 02 0 . 34 0 . 16 39 . 32 37 20
MX5010AB ( S / Y ) H1 B . S . Y 12 7 . 0 - 13 . 8 0 . 14 1 . 68 5500 10 . 83 0 . 31 0 . 13 33 . 15 34 20
MX5010AB ( S / Y ) M1 B . S . Y 12 7 . 0 - 13 . 8 0 . 12 1 . 44 5000 9 . 91 0 . 28 0 . 11 26 . 77 31 20
MX5010AB ( S / Y ) L1 B . S . Y 12 7 . 0 - 13 . 8 0 . 1 1 . 2 4500 9 . 26 0 . 26 0 . 1 23 . 93 28 20
MX5010AB ( S / Y ) D1 B . S . Y 12 7 . 0 - 13 . 8 0 . 08 0 . 96 4000 7 . 64 0 . 22 0 . 07 17 . 55 26 20
MX5010AB ( S / Y ) U2 B . S . Y 24 14 . 0 - 27 . 6 0 . 12 2 . 88 6000 12 . 02 0 . 34 0 . 16 39 . 32 37 20
MX5010AB ( S / Y ) H2 B . S . Y 24 14 . 0 - 27 . 6 0 . 1 2 . 4 5500 10 . 83 0 . 31 0 . 13 33 . 15 34 20
MX5010AB ( S / Y ) M2 B . S . Y 24 14 . 0 - 27 . 6 0 . 08 1 . 92 5000 9 . 91 0 . 28 0 . 11 26 . 77 31 20
MX5010AB ( S / Y ) L2 B . S . Y 24 14 . 0 - 27 . 6 0 . 06 1 . 44 4500 9 . 26 0 . 26 0 . 1 23 . 93 28 20
MX5010AB ( S / Y ) D2 B . S . Y 24 14 . 0 - 27 . 6 0 . 04 0 . 96 4000 7 . 64 0 . 22 0 . 07 17 . 55 26 20

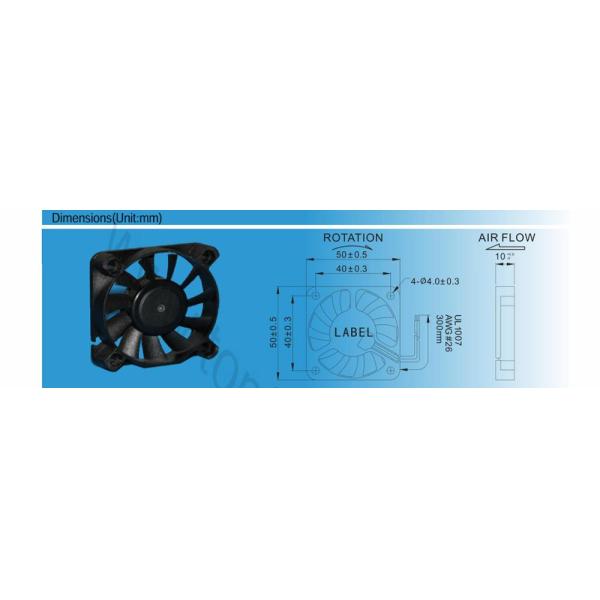

Dimensions

Exhaust instrument air cooler Equipment Cooling Fans , low speed PBT micro cooler fan

If you want another rpm or voltage or special functionm please contact with us directly.

Products have a detail in the approval sheet.

The size , voltage, power & speed can be made according to your requirements

Could be made with waterproof function

We offer 30 , 000 hours warranty for sleeve bearing fans , 50 , 000 hours

warranty for ball bearing fans .

We can also provide fans with longer use times

The products . including brushless fans . cross flow fans . blower fans . centrifugal fans . dc brushless

motor . shades pole and RC ac fans etc. are being widely used in the information technology . network

communications as well as industrial production equipment . medical equipment . and others .

Factory

Exhaust instrument air cooler Equipment Cooling Fans , low speed PBT micro cooler fan

Shenzhen Topfan - China Development Technology Co . , Ltd , founded in 1996 in Shenzhen China , is

aprofessional manufacturer on dc brushless fans and ac fans . Products are CE , RoHS certificated and

good sellers both at home and abroad , including Europe , North America , Asia ( Korea and India ) etc .

Our quality and technical performance indexes hace reached the adcance world level , and our fans have

advantages such as beautiful shape,compact structure , fine processing , high air pressrue , big air

volume , light weight and thin in depth , low noise , long life , environmental adaptability , low price and

trustworthy .

Purchase process

Determine the fan parameters by mail exchange —— > Confirm the price of fan —— > Determine the price of the fan and the mode of transport —— > .

Provide your shipping information —— > Choose the payment way —— > confirm the fan ` s parameters again —— > I make a PI for you —— > you arrange payment —— >

I received the full payment —— > I arrange the production —— > delivery time:7 working days after receipt of full payment —— > samples are done and arrange shipping —— > The goods arrive at the destination —— > Keep in touch , track your order , and provide you with good after - sales service

Package

Exhaust instrument air cooler Equipment Cooling Fans , low speed PBT micro cooler fan

Any more information,pls feel free to contact Mona

Thanks very much!

Skype : Mona Yang

QQ : 3146648329

Tel : 86 755 26070992
