7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof
7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof
7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof
7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof
7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof
7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof
7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof
7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof
Specifications
Brand Name :
MX
Model Number :
MX12025ABH4
Certification :
CE ROHS
Place of Origin :
GuangDong / China
MOQ :
200pcs
Price :
USD + 6 / 12.5 + Piece
Payment Terms :
T / T , paypal
Supply Ability :
10000 + Piece + A day
Delivery Time :
10 - 15 Working Days
Packaging Details :
Carton Box
Size :
120mm X 120mm X 25mm
Voltage :
12V / 24V / 48V
Bearing Type :
Ball bearing
Speed :
2000 - 3500rpm
Motor :
Impedence protected
Weight :
140g
Current :
0.10 - 0.80A
Power :
4.8 - 19.2 W
Thickness :
25mm
Max air flow :
67- 122CFM
Description

7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof

Gerenal Specifications :

Bearing Type : Ball Bearing
Function : IP55 , IP58 , IP66 , IP68 , Waterproof
Frame and Impeller : 94V - 0 fireproof , metal frame and plastic impeller
Voltage : 12V 24V 48V
Temperature range : - 10 ℃ to + 60 ℃
Expected Life : ＜ 80000 hours

Specifications

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX12025AB(S/Y)U1 B.S.Y 12 7.0-13.8 0.80 9.60 3500 122.12 3.46 0.31 77.47 49.00 140.00
MX12025AB(S/Y)H1 B.S.Y 12 7.0-13.8 0.50 6.00 3000 103.92 2.94 0.24 60.51 44.00 140.00
MX12025AB(S/Y)M1 B.S.Y 12 7.0-13.8 0.40 4.80 2500 86.65 2.45 0.18 44.03 39.00 140.00
MX12025AB(S/Y)L1 B.S.Y 12 7.0-13.8 0.20 2.40 2000 67.01 1.90 0.10 26.09 35.00 140.00
MX12025AB(S/Y)U2 B.S.Y 24 14.0-27.6 0.50 12.00 3500 122.12 3.46 0.31 77.47 49.00 140.00
MX12025AB(S/Y)H2 B.S.Y 24 14.0-27.6 0.40 9.60 3000 103.92 2.94 0.24 60.51 44.00 140.00
MX12025AB(S/Y)M2 B.S.Y 24 14.0-27.6 0.25 6.00 2500 86.65 2.45 0.18 44.03 39.00 140.00
MX12025AB(S/Y)L2 B.S.Y 24 14.0-27.6 0.15 3.60 2000 67.01 1.90 0.10 26.09 35.00 140.00
MX12025AB(S/Y)U4 B.S.Y 48 28.0-56.0 0.40 19.20 3500 122.12 3.46 0.31 77.47 49.00 140.00
MX12025AB(S/Y)H4 B.S.Y 48 28.0-56.0 0.30 14.40 3000 103.92 2.94 0.24 60.51 44.00 140.00
MX12025AB(S/Y)M4 B.S.Y 48 28.0-56.0 0.20 9.60 2500 86.65 2.45 0.18 44.03 39.00 140.00
MX12025AB(S/Y)L4 B.S.Y 48 28.0-56.0 0.10 4.80 2000 67.01 1.90 0.10 26.09 35.00 140.00

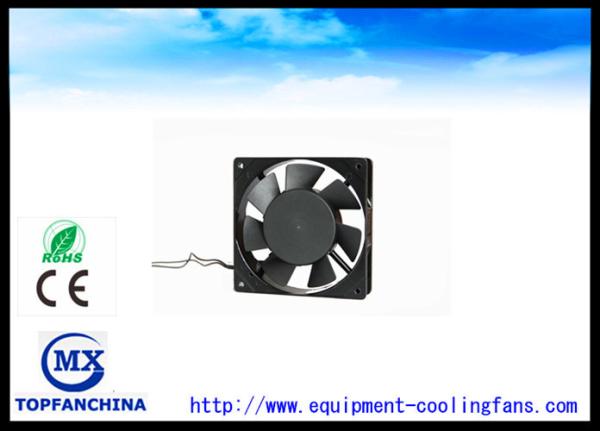

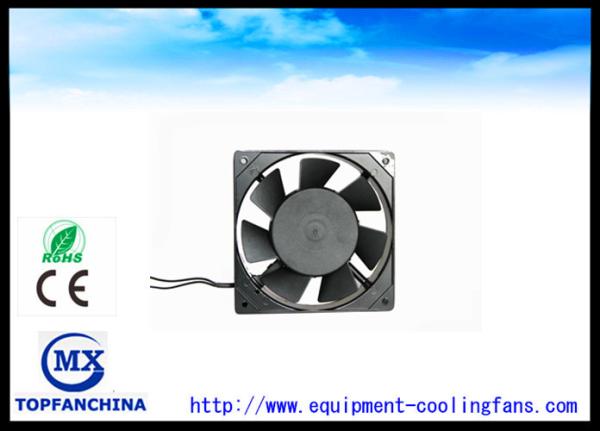

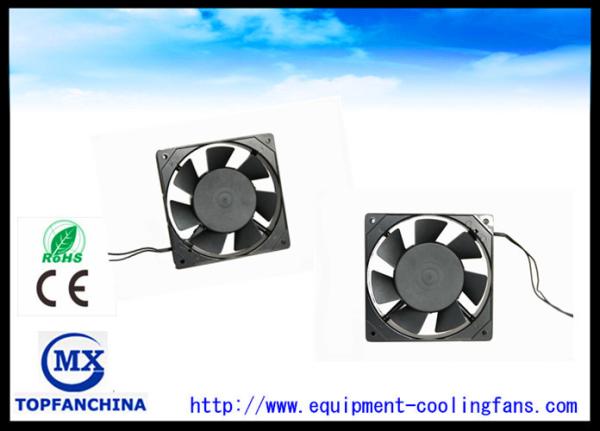

Product picture

It is widely used in ground control , equipment , electronic equipment , medical equipment , computers , power supplies , welding machines , packaging , printing equipment , satellite communications , CNC , machinery and office automation products such as ventilation and cooling purposes .

7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof

Company information

Founded in 1996 in Shenzhen China, we, Shenzhen Topfan-China Technology Co., Ltd, is professional manufacturer and researcher on dc brushless fans and ac fans. Our products are ISO9000, CE, RoHS and TUV certificated and good sellers both at home and abroad, including European, North American, Asia(Korea and India) and so on. The products, including brushless fans, cross flow fans, blower fans, centrifugal fans, dc brushless motor, shades pole and RC ac fans, are being widely used in the information technology, network communications as well as industrial production equipment, medical equipment, home appliances and others. Based on mutual benefit and development, we always make our biggest efforts to do everything better for our customers.

7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof

7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof

1. Place of origin: Guangdong ,China (Mainland)

2. Bearing Type: ball bearing

3. Model number: All Size

4. Packing& Delivery: regular packing or based on your request

5. After- Sales Service Provided: Overseas third party support available

6. Delivery Detail: 15-20 days after receive deposit

7. Payment: T/T and paybal
〈More detial should be discussed〉

How to order

7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof

7 blades impeller 48V power axial cooling fan 120mm X 120mm X 25mm IP58 IP68 waterproof
