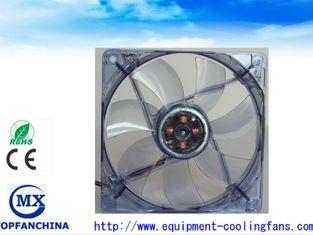

Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan
Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan
Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan
Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan
Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan
Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan
Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan
Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan
Specifications
Brand Name :
MX
Model Number :
MX1205ABH1
Certification :
CE / ROHS / UL / SGS
Place of Origin :
China
MOQ :
500pcs
Price :
us$1.5 / pcs to us$3.00/pcs, and negotiation
Payment Terms :
T/T / PAYPAL
Supply Ability :
600,000pcs per month
Delivery Time :
5-12 working days after received your payment
Packaging Details :
Carton
Speed :
3000rpm
Color :
Blank
Expected Life :
50,000 / 30,000 Hours ( 40C )
Bearing Type :
Ball Bearing/Sleeve Bearing
Max Air Flow :
103.92CFM
Current :
0.10-0.80A
Description

Applications :

Topfan's brushless axial dc fan 120mm 4 . 7inch , low noise and long life expectancy , are widely used in the computer information technology , network communications , as well as industrial production equipment , medical equipment , home appliances , etc .

Detailed Product Description :

  • Voltage :12V , 24V , 48V
  • Insulation Resistance:10M AT 500VDC
  • Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min
  • Opetation Temperature : -10℃～70℃ ( Ordinary humidity )
  • Storage Temperature : -40℃～70℃ ( Ordinary humidity )
  • Life Expectancy : Ambient temperature 25℃ and humidity 65% ( Ball bearing : 50 , 000Hours , Sleeve bearing : 30 , 000Hours)

Specifications :

Model Bearing Type Rated Voltage Operating Voltage Input Current Input Power Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m3/min Inch-H2O pa dB-A g
MX12025AB(S/Y)U1 B.S.Y 12 7.0-13.8 0.80 9.60 3500 122.12 3.46 0.31 77.47 49.00 140.00
MX12025AB(S/Y)H1 B.S.Y 12 7.0-13.8 0.50 6.00 3000 103.92 2.94 0.24 60.51 44.00 140.00
MX12025AB(S/Y)M1 B.S.Y 12 7.0-13.8 0.40 4.80 2500 86.65 2.45 0.18 44.03 39.00 140.00
MX12025AB(S/Y)L1 B.S.Y 12 7.0-13.8 0.20 2.40 2000 67.01 1.90 0.10 26.09 35.00 140.00
MX12025AB(S/Y)U2 B.S.Y 24 14.0-27.6 0.50 12.00 3500 122.12 3.46 0.31 77.47 49.00 140.00
MX12025AB(S/Y)H2 B.S.Y 24 14.0-27.6 0.40 9.60 3000 103.92 2.94 0.24 60.51 44.00 140.00
MX12025AB(S/Y)M2 B.S.Y 24 14.0-27.6 0.25 6.00 2500 86.65 2.45 0.18 44.03 39.00 140.00
MX12025AB(S/Y)L2 B.S.Y 24 14.0-27.6 0.15 3.60 2000 67.01 1.90 0.10 26.09 35.00 140.00
MX12025AB(S/Y)U4 B.S.Y 48 28.0-56.0 0.40 19.20 3500 122.12 3.46 0.31 77.47 49.00 140.00
MX12025AB(S/Y)H4 B.S.Y 48 28.0-56.0 0.30 14.40 3000 103.92 2.94 0.24 60.51 44.00 140.00
MX12025AB(S/Y)M4 B.S.Y 48 28.0-56.0 0.20 9.60 2500 86.65 2.45 0.18 44.03 39.00 140.00
MX12025AB(S/Y)L4 B.S.Y 48 28.0-56.0 0.10 4.80 2000 67.01 1.90 0.10 26.09 35.00 140.00

Competitive Advantage :

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling FanTransparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan

Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan

Transparent Blue Computer Case Cooling Fans , 12V Laptop Cooling Fan
