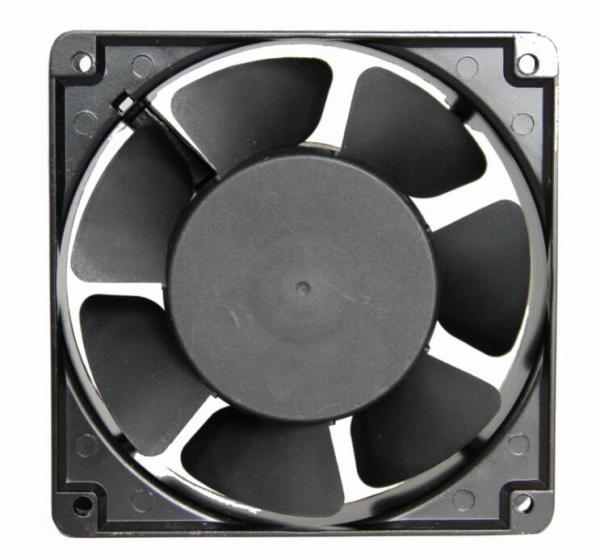

AC Industrial Ventilation Fan / Exhaust AC Fan 5.5 INCH 140 × 140 × 45 mm
AC Industrial Ventilation Fan / Exhaust AC Fan 5.5 INCH 140 × 140 × 45 mm
AC Industrial Ventilation Fan / Exhaust AC Fan 5.5 INCH 140 × 140 × 45 mm
AC Industrial Ventilation Fan / Exhaust AC Fan 5.5 INCH 140 × 140 × 45 mm
Specifications
Brand Name :
MX
Model Number :
MX14045ABH22
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
40,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
carton box
Product Name :
140 × 140 × 45 mm AC Fan
Voltage :
110V-120V / 220V-240V
Frequency :
50/60hz
Power Consumption :
35W
Air Flow :
176/209CFM
Speed :
2800/3400RPM
Description

140 × 140 × 45 mm AC Industrial Ventilation Fan / Exhaust Fan / AC Fan 5.5 INCH


Applications:


Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.


Description:

  • 110V-120V , 220V-240V AC FAN, used for cooling and ventilation.
  • Frame: Aluminum ADC-12, Painted Black
  • Blade:Plastic
  • Stator& Rotor: Silicon steel
  • Magnet Wires: Copper 1 PEW
  • Bobbin: PA-66 UL 94 V-0
  • Bearing Type: Ball Bearing


Environmental Specification:

Item

Specification/Condition

01

Operating Temp. Range

Temperature:-20℃~75℃
Humidity:20%~85%RH

02

Storage Temperature

Temperature:-30℃~140℃
Humidity:20%~95%RH

03

Life

50000H



Main Materials/Parts Specification:

(Item

Specification

01

Blade

(PBT) PBT+15%GF

02

Frame

Aluminum ADC-12,Painted Black

03

Stator& Rotor

Silicon stee

04

Magnet Wires

Copper 2 UEW

05

Bobbin

PA-66 UL 94 V-0

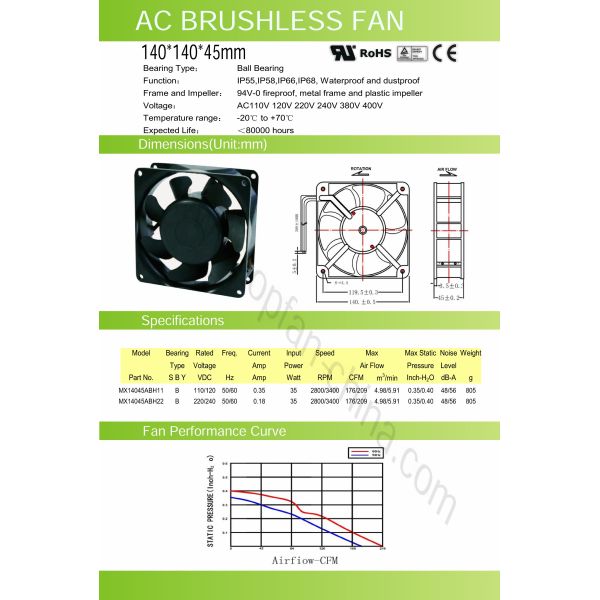

Specification:

AC Industrial Ventilation Fan / Exhaust AC Fan 5.5 INCH 140 × 140 × 45 mm

Main Parts:

AC Industrial Ventilation Fan / Exhaust AC Fan 5.5 INCH 140 × 140 × 45 mm

Competitive Advantage:

*Qualified, cost effective and easily operated

*Small in shape, have compact structure

*UL, CE, Rohs, CUL, CCC

* Competitive Pricing

* Keep Investing and Developing In New Products

* The Most Advanced Testing and Measuring Equipment

* On-Time Delivery

Shipment:

You could choose the shipping way by yourself .

You could choose the freight forward company by yourself .

We could arrang the shipment according to your require .

If you have any requirements you could contact me soon .

1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )

2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20working days

3 . International express : UPS / DHL / FEDEX and so on .

Any more information , please feel free to contact Helen --→

We will reply you within 2 hours . Thanks

Skype : helen860615

QQ : 304994675

Tel : 86 755 26070926

Mobile :0086-15818540201
