109P0405J601 SanAce DC Brushless Fan High Speed 10000RMP 0.46A Plastic Frame
109P0405J601 SanAce DC Brushless Fan High Speed 10000RMP 0.46A Plastic Frame
Specifications
Brand Name :
MX / OEM / ODM
Model Number :
109P0405J601
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
us$2.99 / pcs to us$4.99/ pcs, and negotiation
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
600,000pcs per month
Delivery Time :
5 - 12 working days after received your payment
Packaging Details :
carton, other can be customized
Product name :
DC fan, dc fan 5V 12V, motor fan, axial fan, dc brushless fan, dc 30 x 30 x 10mm, mini fan, high speed fan
Rate Voltage :
5V / 12V /24V
Current :
0.46A
Speed :
10000RMP
Bearing type :
ball bearing
Motor :
Impedance Protected And Reverse Polarity Protected
Max air flow :
9.9CFM
Weight :
8g
Frame and impeller material :
Plastic ( 94V - 0 ) , PBT
Description

109P0405J601 SanAce fan 40 x 40 x 20mm high speed and high quality dc brushless fan


Brand: Sanyo
Size: 40x40x20mm
Voltage: DC 12V
Current: 0.49A
Bearing: Ball bearing
Speed: 10000RMP
Air volume: 10.0CFM
Noise: 40dB-A
Wiring method: lead wire, three wire with terminal
Life time: 40000 - 60000hours at 40℃

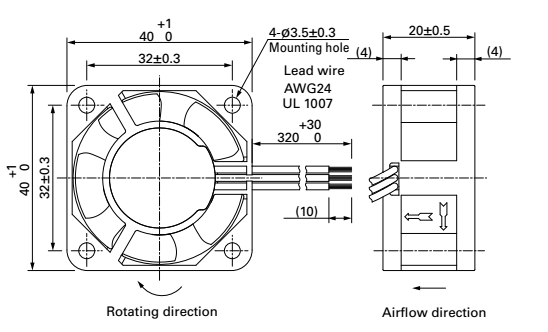

Size installation diagram:

SanAceModel No.
109P0405J601
109P0405H601
109P0405F601
109P0405M601
109P0412G601
109P0412D601
109P0412E601
109P0412H601
109P0412F601
109P0412M601
109P0424G601
109P0424D601
109P0424H601
109P0424F601
109P0424M601
109P0424B601







Important Note :
Rated Current : Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage.
Rated Speed : Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
Start Voltage : The voltage which is able to start the fan to operate by suddenly switching “ON”
Dropping test standard : Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm. After test, connect the fan to the power, the fan still in normal operation.

TEM Specification. Condition
Locked Rotor Protection □Safety Condition

■		Auto power off after locked at rated voltage for 1sec
After auto power off ,circuit attempt restart in 2 to 6sec
Polarity Protection ■Open circuit when Vcc&GND are exchanged
□Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged
Insulation Resistance10MΩ Between unshielded wire and frame at 500VDC/min
Dielectric Strength5mA Max / Measured b/w lead wire ( + ) and frame at 500VAC/min
Special Function □Soft Start
5s (0 to Max speed)		 □Current Limiter



Bearing ■ (Dual Ball Bearing)□ (Sleeve Bearing)
Frame ■PBT of 94V-0.□Die-cast Aluminum Alloy
Impeller ■PBT of 94V-0.□Steel
BobbinPBT of 94V-0.
Lead Wire ■Red(+) ■Black (-) □Blue (PWM)UL 1571 28#
□Yellow(FG) □White (RD)2 wires 100 ± 10mm
ConnectorNo
TubeNo


109P0405J601 SanAce DC Brushless Fan High Speed 10000RMP 0.46A Plastic Frame

our service :

Quality assurance : All the products will go through lots of tests carefully before dispatch
Competitive production capacity and fast shipping
Manufactuer's price : Factory direct sale, most competitive price

Strength : Near 10-year experience in manufacturer cooling fans, more than 7 year experience on export. It covers 3000 square meters, with an annual output of 5 million sets of fans

Certification : All of product have passed CE and ROHS certification.

Customization : support MX , OEM , ODM and buyer label offered.

Payment : Paypal, Western Union, T/T

Port of loading : Hongkong or Shenzhen Port
Discounts : offered based on order quantities
Delivery time : 3 - 15 days according to order quantities.
