TLD469 LiF(Mg,Cu,P) Personal Thermoluminescent Dosimeter
TLD469 LiF(Mg,Cu,P) Personal Thermoluminescent Dosimeter
TLD469 LiF(Mg,Cu,P) Personal Thermoluminescent Dosimeter
TLD469 LiF(Mg,Cu,P) Personal Thermoluminescent Dosimeter
TLD469 LiF(Mg,Cu,P) Personal Thermoluminescent Dosimeter
TLD469 LiF(Mg,Cu,P) Personal Thermoluminescent Dosimeter
TLD469 LiF(Mg,Cu,P) Personal Thermoluminescent Dosimeter
TLD469 LiF(Mg,Cu,P) Personal Thermoluminescent Dosimeter
Specifications
Brand Name :
TESTECH
Model Number :
TLD469
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
10pcs
Payment Terms :
T/T,Western Union,paypal
Supply Ability :
50000pcs
Delivery Time :
5 days
Packaging Details :
In carton
Measurement range :
10μGy---10Gy
Energy range :
20 keV to 9 MeV (Hp(10)), 10 keV to 1.5 MeV (Hp(0.07))
Detection limit :
0.1μGy
Relative error :
<30%
Dose tablet dimensions :
Diameter: 4.5mm, Thickness: 0.8mm
Peak heating temperature :
210℃
Description

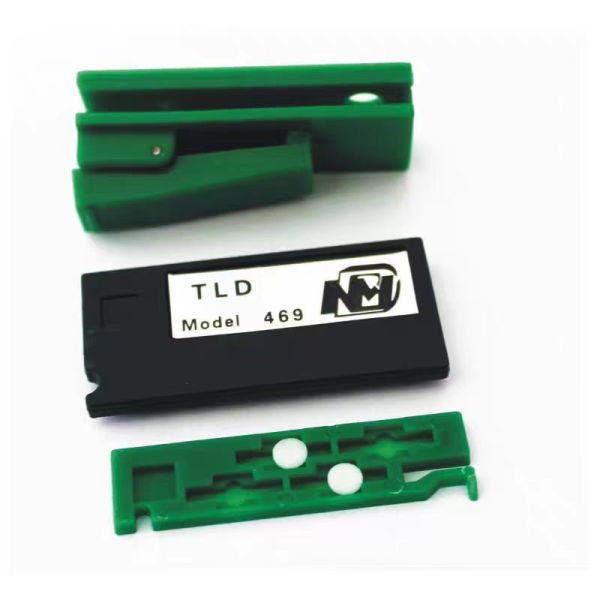

TLD469 Personal TLD Dosimeter

  • Radiation dose monitoring for radiation workers
  • Environmental radiation dose monitoring
  • Irradiation processing dose monitoring

Specifications

Measurement range of DER: 10μGy---10Gy

Energy range: For Hp (10), X and γ rays from 20 keV to 9 MeV; for Hp (0.07), X and γ rays from 10 keV to 1.5 MeV

Detection limit: 0.1μGy

Relative error: <30%

Accumulated measurement loss within 3 months: <10%

Repeatability: 2%

Item Parameter Details
Dose tablet shape GR-200A; Circular: Diameter: 4.5mm , Thickness: 0.8mm
Effective atomic number Z 8.2
Density (g/cm³) 2.5
Emission wavelength 385nm
Sensitivity relative to TL—100 65
Peak heating temperature(℃) 210
Zero dose reading (μGY) 1
Detection threshold (μGY) 1
Linear range (GY) 10−7~12
Dosimeter angular response The angle of incidence deviates from the normal direction by 0°, 20°, 40°, 60°, and the dose response of the dosimeter changes by 11% at the maximum
Repeatability <2%
Energy response (30keV---1.3MeV) <20%
Dispersibility (1SD) <5%
Decay (room temperature) <5%/year
Effect of light on decay The light illumination has no effect, but the sunlight does
Number of reuses >100 times
Dose rate change effect No effect
Remark ** Technical specifications are for reference only, please refer to the actual product model
