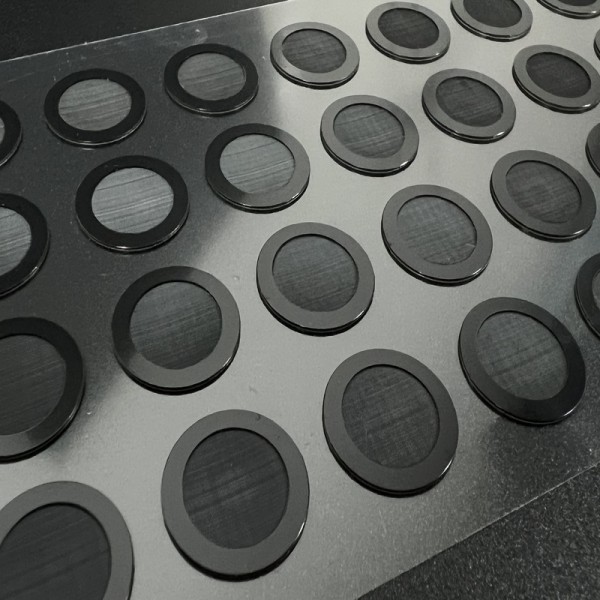

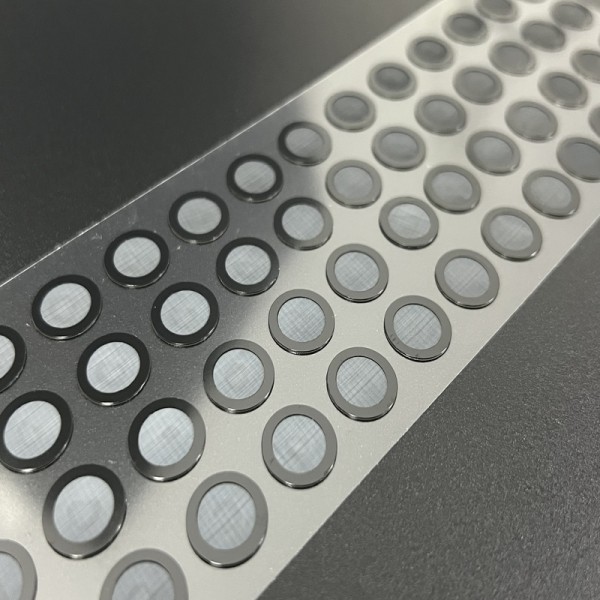

This EPTFE conference speakerphone acoustic vent assembly is designed for all-in-one meeting room devices that combine speakers and microphone arrays for full-duplex communication. The assembly consists of a pre-mounted EPTFE membrane on a precision injection-molded plastic carrier ring with a high-bond adhesive, enabling fast, repeatable integration during mass production. It protects the internal speaker and microphones from coffee spills, water splashes, and cleaning fluid ingress that are common in hot-desking and shared meeting spaces. The vent maintains omnidirectional audio pickup and 360-degree speaker output with minimal distortion, ensuring that remote participants hear and are heard clearly. The assembly is engineered for IPX4 splash-proof performance as standard, with an upgrade path to IPX7 for premium devices. The carrier ring ensures accurate alignment over the acoustic ports, reducing assembly defects. With UL94 V-0 flammability rating, it meets enterprise safety requirements for office electronics.

Conference speakerphones sit at the center of meeting tables—the exact location most vulnerable to liquid spills. A single spilled drink can destroy an unprotected device and disrupt critical business meetings. This vent assembly provides a sealed acoustic pathway that keeps liquid out while remaining acoustically transparent for both the speaker output and the microphone input. The pre-assembled carrier format cuts down assembly time on the production line and eliminates manual adhesive alignment errors. The solution enables conferencing equipment manufacturers to offer spill-proof reliability as a differentiating feature without sacrificing the audio quality that enterprise customers demand.

USB conference speakerphones (e.g., Jabra, Poly, Anker styles), meeting room video bars with integrated audio, hybrid work all-in-one conferencing hubs.

The plastic carrier ring sandwiches the EPTFE membrane and provides a flat bonding surface that adheres to the inside of the device housing. Sound radiated from the internal speaker travels outward through the membrane, while incoming voice passes inward to the microphones. Liquid spilled on the device pools on the external surface and is prevented from reaching the electronics by the hydrophobic membrane. The carrier ring also acts as a seal against seepage around the edges of the membrane, ensuring a fully watertight interface.
