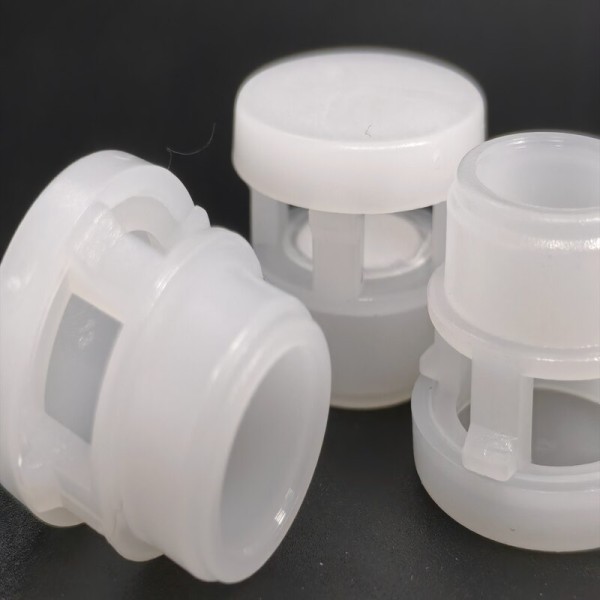

The D17 HDPE pressure equalization vent is engineered for larger-capacity pesticide and disinfectant pails, typically ranging from 5 gallons (20L) to 7 gallons (30L). Its 17mm installation diameter accommodates a generously sized ePTFE membrane, providing high-capacity breathing that effectively neutralizes the aggressive pressure swings common in disinfectant and chemical pails. The HDPE construction ensures flawless weld compatibility with standard HDPE pail lids and closures. By delivering reliable, maintenance-free pressure management, this vent keeps pails dimensionally stable, stackable, and safe from the risks of bulging, collapse, or liquid leakage during transport and storage in demanding agricultural and institutional supply chains.

Pesticide and disinfectant pails encounter severe pressure-related failures throughout their distribution life. Disinfectants based on chlorine, peroxide, or quaternary ammonium compounds continuously generate gases that inflate sealed pails. Liquid pesticides expand significantly in high-temperature transport, creating internal pressures that can cause lid seal failure and weeping around the rim. Stacked pails, subjected to top loads, can buckle if a vacuum weakens the sidewalls. Additionally, many pail users (farmers, janitorial staff) expect a pail to open without a sudden burst of vapor or liquid, which is a common and dangerous occurrence in unvented containers.

The D17 HDPE vent, welded into the pail lid, acts as a continuous passive pressure relief and vacuum break system. Its enlarged ePTFE membrane rapidly releases built-up gases from disinfectant decomposition and equalizes thermal expansion pressure. When the pail cools or is partially emptied, the vent admits filtered ambient air, preventing vacuum formation. This keeps the pail lid flat, the sidewalls rigid, and the stack integrity intact. The membrane’s oleophobic and chemically inert nature prevents disinfectant and pesticide penetration, so pails can be safely laid on their sides or inverted without leakage.

• 5-gallon (20L) and 6-gallon (25L) pesticide concentrate pails
• Industrial and institutional disinfectant pails
• Quaternary ammonium (quat) concentrate containers
• Sodium hypochlorite bleach pails
• Acid-based cleaning chemical pails
• Agricultural dairy and livestock chemical pails

The D17 vent’s operating principle centers on the selective permeability of the ePTFE membrane. Disinfectant decomposition gases like oxygen or chlorine dioxide, being small molecules, diffuse through the membrane pores and escape to the atmosphere. Liquid, irrespective of its chemical aggressiveness, is retained by the membrane’s low surface energy and nanoscale pore diameter. This continuous, self-regulating ventilation eliminates the cyclic stress on the pail’s lid seal, extending its effective life and ensuring reliable, safe performance from filling line to end use.

1. Confirm your pail’s polymer type: this vent is for HDPE pails. For PP pails, request a PP variant.
2. Evaluate the off-gassing rate of your product: accelerated aging tests at elevated temperatures can help determine if the D17’s airflow is sufficient.
3. Design the welding nest appropriately: a flat, consistent weld surface around the 17mm hole is critical for a permanent seal.
4. Test with a filled, sealed pail: perform real-world shipping simulations, including drop tests and thermal cycling, to validate vent performance before full-scale production.

• Q: Does the D17 vent handle the high pH of concentrated bleach solutions?
  A: Yes, both HDPE and ePTFE are inert to high-pH bleach solutions. The vent will release oxygen from decomposition while retaining the liquid.
• Q: Can the vent be installed in a pail lid that already has a tear-tab pour spout?
  A: Yes, the vent is installed in a separate dedicated hole, typically on the opposite side of the lid from the pour spout, to maintain structural balance.
• Q: What happens if the pail is accidentally kicked over?
  A: The vent will instantly seal against liquid, preventing any chemical spillage, even under the sudden hydrostatic pressure of a horizontal pail.
• Q: Will the membrane withstand pressure washer cleaning of the pail exterior?
  A: Direct high-pressure spray should be avoided hitting the membrane face, but the vent’s recessed design provides significant protection. A wash cap can be designed for extreme cleaning environments.
• Q: Is the D17 vent compatible with induction sealing liners?
  A: The vent is typically installed adjacent to, not through, an induction seal area. Contact us to discuss lids that combine breathable zones and induction-sealed dispensing orifices.
