200L Gas Fired Jacketed Kettle 304 Stainless Steel Planetary Mixer Agitator Jam Sauce Fruit Paste Cooking Machine
200L Gas Fired Jacketed Kettle 304 Stainless Steel Planetary Mixer Agitator Jam Sauce Fruit Paste Cooking Machine
200L Gas Fired Jacketed Kettle 304 Stainless Steel Planetary Mixer Agitator Jam Sauce Fruit Paste Cooking Machine
200L Gas Fired Jacketed Kettle 304 Stainless Steel Planetary Mixer Agitator Jam Sauce Fruit Paste Cooking Machine
200L Gas Fired Jacketed Kettle 304 Stainless Steel Planetary Mixer Agitator Jam Sauce Fruit Paste Cooking Machine
200L Gas Fired Jacketed Kettle 304 Stainless Steel Planetary Mixer Agitator Jam Sauce Fruit Paste Cooking Machine
Specifications
Brand Name :
EPS
Heating Method :
Natural Gas / LPG
MOQ :
1 Set
Outer Pot Thickness :
2mm
Heating Power :
20kW
Application :
Jam Sauce Fruit Paste Processing
Certification :
CE ISO 9001:2015
Pot Depth :
550mm
Discharge Method :
Manual Tilting
Warranty :
1 Year
Model Number :
GA-200
Voltage :
380V 50Hz 3 Phase
Payment Terms :
T/T,L/C,Western Union
Material :
304 Stainless Steel
Capacity :
200L
Inner Pot Diameter :
800mm
Temperature Control :
Digital PID Controller
Place of Origin :
Shandong, China
Supply Ability :
200 Sets per Month
Stirring Motor Power :
1.5kW
Speed Control :
Variable Frequency Drive
Delivery Time :
7-15 working days
Inner Pot Thickness :
6mm
Packaging Details :
Export-grade plywood case with moisture-proof film and foam cushioning
Stirring Type :
Planetary Mixer with Scraper
Price :
USD 2500-4500 / Set
Description

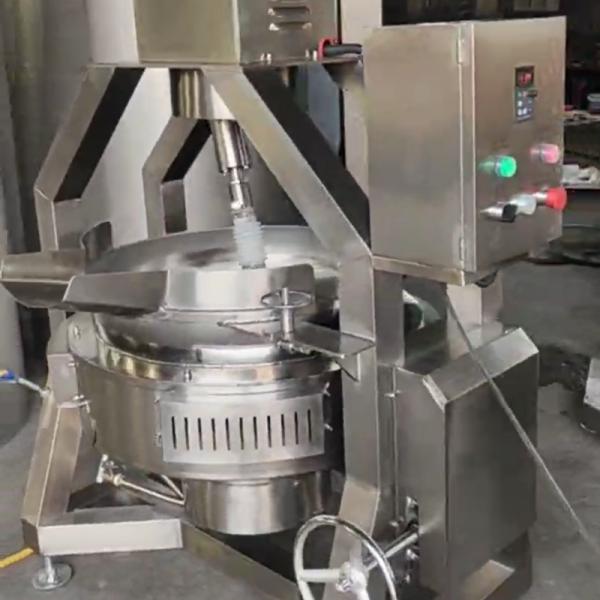

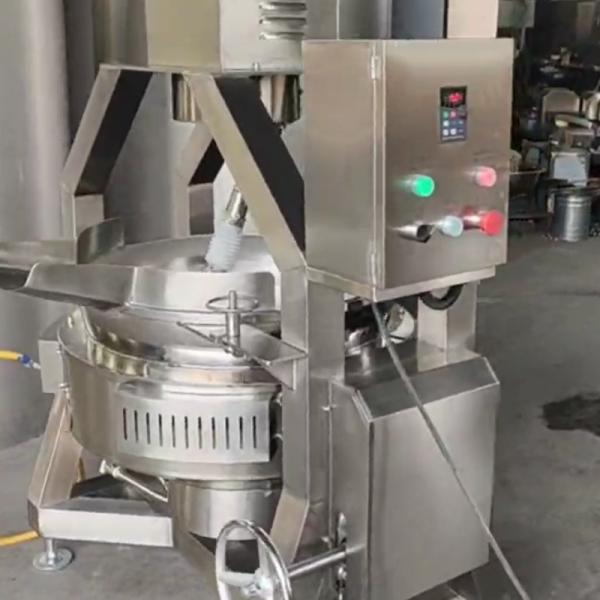

200L Gas Fired Jacketed Kettle With Planetary Mixer Agitator 304 Stainless Steel

Product Description:


This 200L gas fired jacketed kettle with planetary mixer agitator is purpose-built for jam, fruit paste, sauce and spread production. The planetary mixing system with scraper arms ensures even mixing and prevents product from sticking to the pot wall. Gas heating with thermal oil heat transfer provides uniform, gentle cooking that preserves product quality and flavor.


Key Features:

  • Planetary mixer with PTFE scraper arms for thorough blending and zero dead zones
  • Gas heating via thermal oil jacket ensures even heat distribution without burning
  • Variable frequency drive with adjustable speed 0-60 rpm for different recipes
  • 304 stainless steel inner pot (6mm) and outer layer (2mm), total 8mm
  • Digital PID temperature control with automatic heating cycle management
  • Manual tilting mechanism for fast and complete product discharge
  • Aluminum silicate insulation for energy efficiency and operator safety


Technical Parameters:


Model Capacity Inner Diameter Pot Thickness Stirring Power Heating Power
GA-100 100L 700mm 6+2=8mm 1.1kW 20kW
GA-200 200L 800mm 6+2=8mm 1.5kW 20kW
GA-300 300L 900mm 6+2=8mm 1.5kW 30kW
GA-400 400L 1000mm 6+2=8mm 2.2kW 30kW


Applications:


✅ Jam, marmalade and fruit preserve production

✅ Tomato sauce, ketchup and chili paste cooking

✅ Chocolate, caramel and toffee manufacturing

✅ Sticky fillings and mashed ingredient processing

✅ Curry paste and thick sauce production


Why Choose EPS Gas Kettle With Agitator:


Shandong EPS Machinery Co., Ltd delivers industrial-grade gas jacketed kettles backed by 15 years of food machinery expertise. Our planetary agitator system eliminates scorching and ensures consistent product quality batch after batch. All machines are CE and ISO 9001:2015 certified with comprehensive warranty coverage. Contact us for a customized solution and factory-direct pricing.
