Medium Density Polyurethane Tooling Board with Dimensional Stability and Temperature Resistance for CNC Machining
Medium Density Polyurethane Tooling Board with Dimensional Stability and Temperature Resistance for CNC Machining
Specifications
Color :
Beige/red/grey
Hardness :
82-85
Model Number :
MB5120
Price :
Negotiation
Packaging Details :
Standard Carton Packing
Place of Origin :
China
Payment Terms :
T/T
Brand Name :
LH-tool®
Size :
1500*500*50/75/100 1000*500*50/75/100
Density :
1.2-1.25
MOQ :
10 Sheets
Supply Ability :
3000 Sheets Month
Delivery Time :
15 Days
Thickness :
25mm 30mm 50mm 75mm 100mm 150mm 200mm
Certification :
ISO9001:2008 Standard
Materials :
Polyurethane
Description

For over twenty years, we have been dedicated to developing innovative machinable sheets for model making, mold manufacturing, and tooling, with products meticulously designed in Guangzhou. Our LH-TOOL® solutions combine efficiency, outstanding performance, and sustainability: available in density ranges from 0.08–1.7 g/cm³, featuring fine surfaces, high dimensional stability, ease of processing, and perfectly matched adhesives and repair fillers. Tooling and models—efficient, robust, and sustainable. We also offer heat-resistant sheet materials for customer selection, with dimensions customizable according to specific requirements.

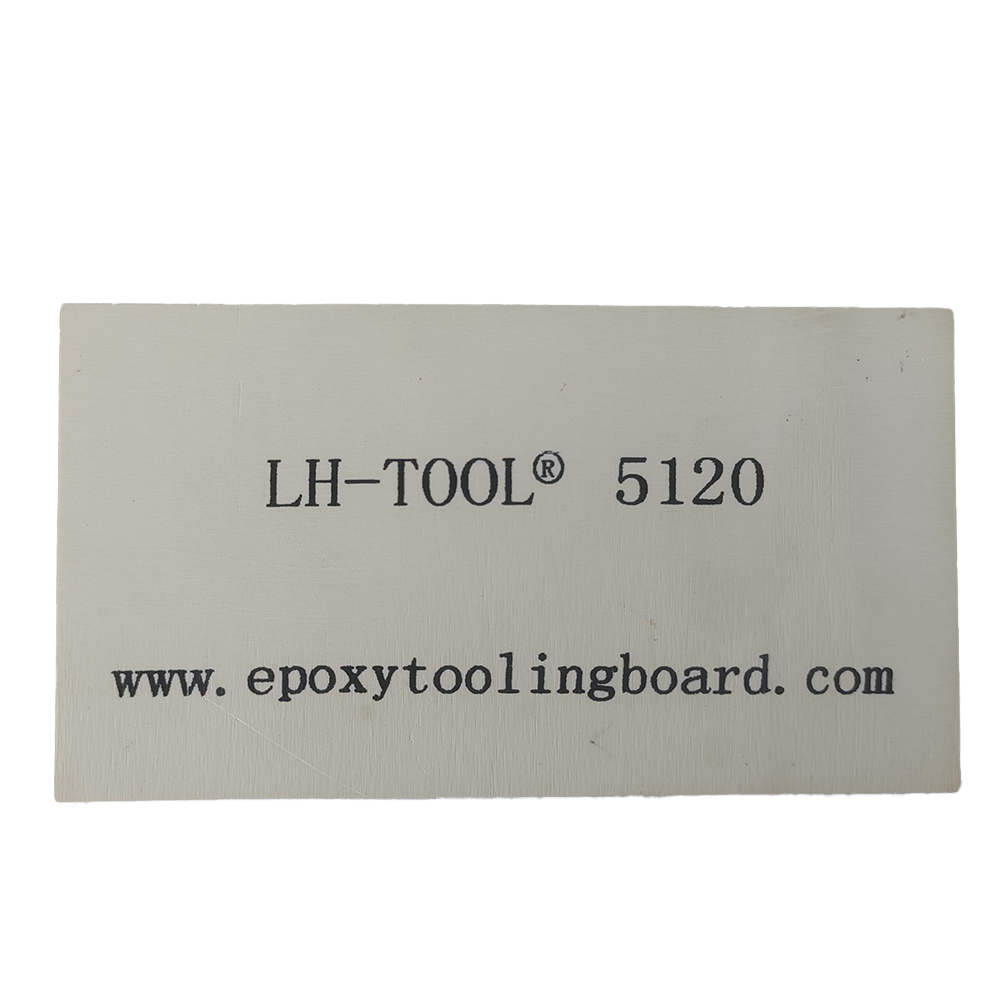

MB5120 Polyurethane High Density Model Board
High-density polyurethane tooling board featuring exceptional edge stability, minimal thermal expansion, and low dust formation during machining. Available in multiple sizes up to 1500x500 mm with thicknesses up to 150 mm.
Key Properties
  • Easy workability with high dimensional stability
  • Cost-effective solution with excellent compressive strength
  • High temperature and chemical resistance
  • Large sheet sizes available
  • Smooth, non-porous surface finish
  • Low coefficient of thermal expansion
Applications
  • Design studies and prototyping
  • CNC program testing and verification
  • Architectural models and landscape features
  • Mold tools for composite part prototyping
  • Jigs, fixtures, foundry patterns, and core boxes
  • Vacuum forming molds and various model types
Technical Specifications
Property Value
Density (g/cm³) 1.2~1.25g/cm3
Hardness (Shore D) 82-85
Compressive Strength (N/mm²) 75-80Mpa
Temperature Resistance (°C) 80-85
Coefficient of Thermal Expansion 40-45X10-6(1/K)
Flexural Strength (N/mm²) 55-60Mpa
Tensile Strength (N/mm²) 75
Available Dimensions
(L×W×H) 1000×500×50/75/100 mm
(L×W×H) 1500×500×50/75/100 mm
